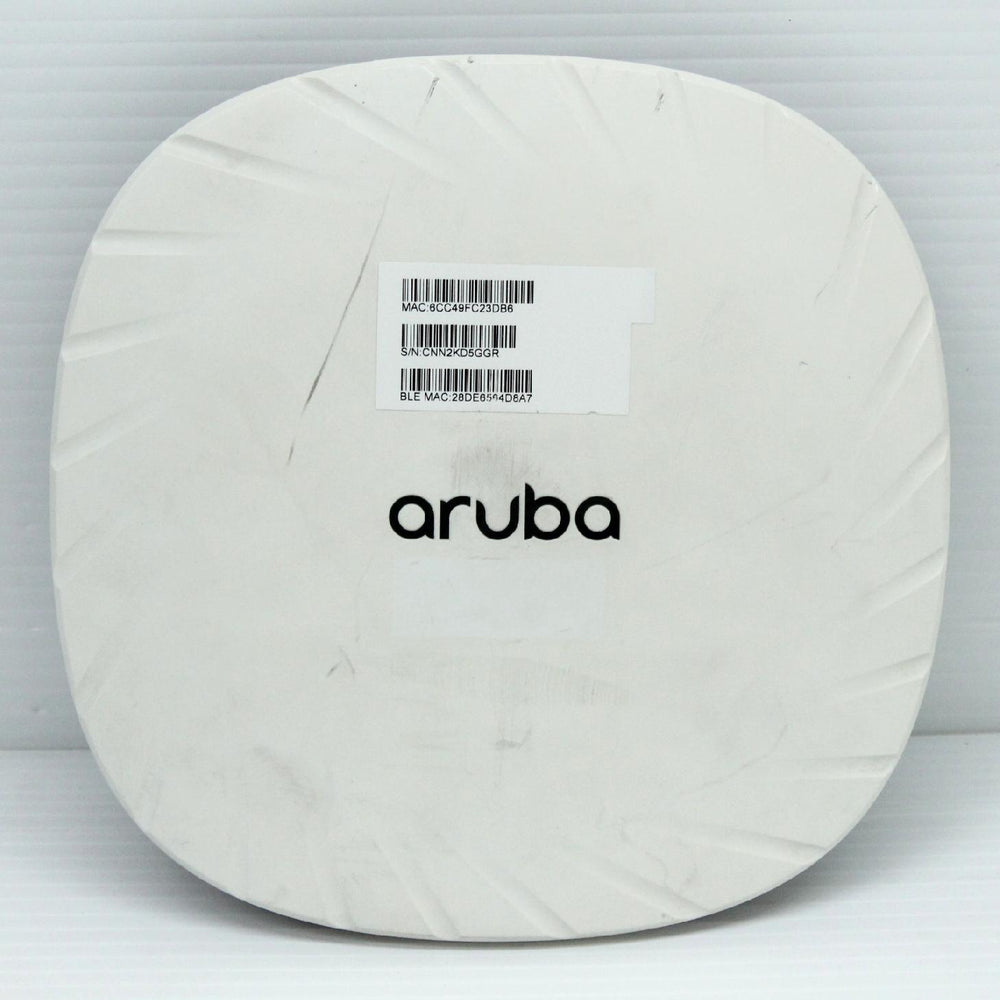

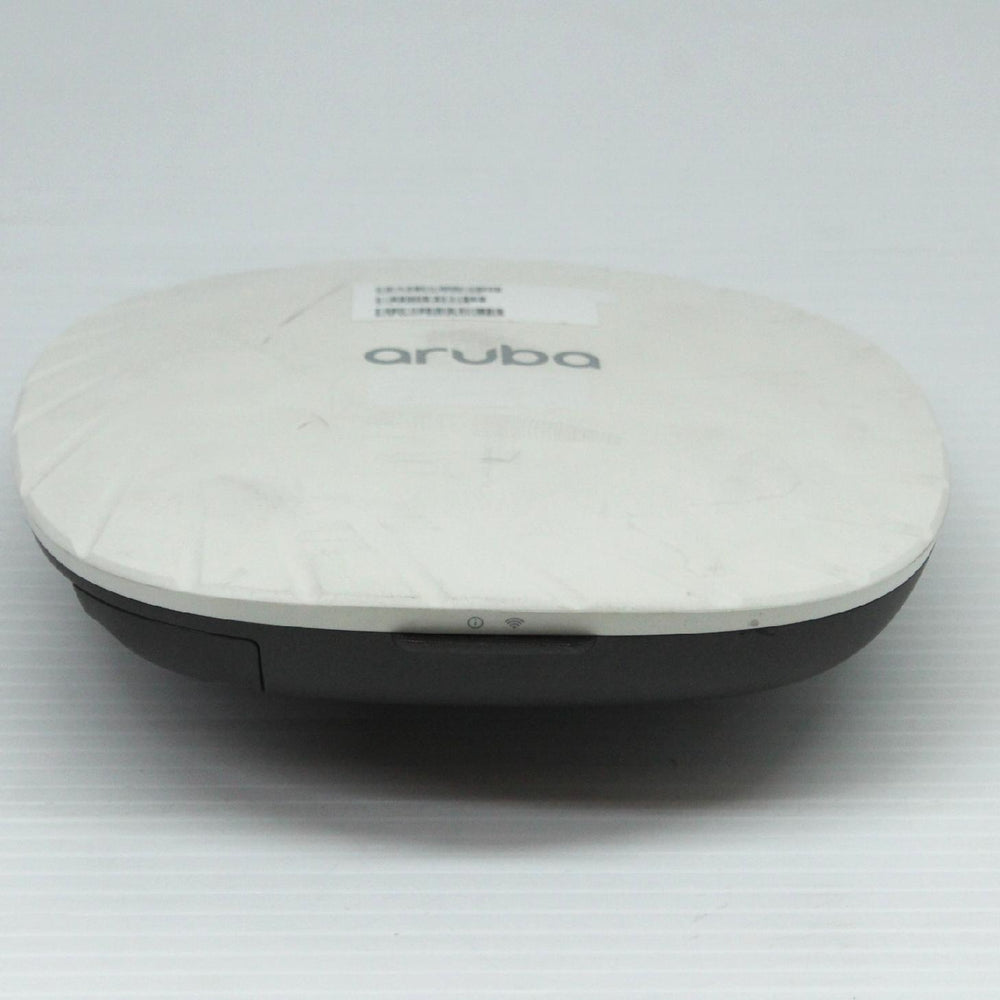

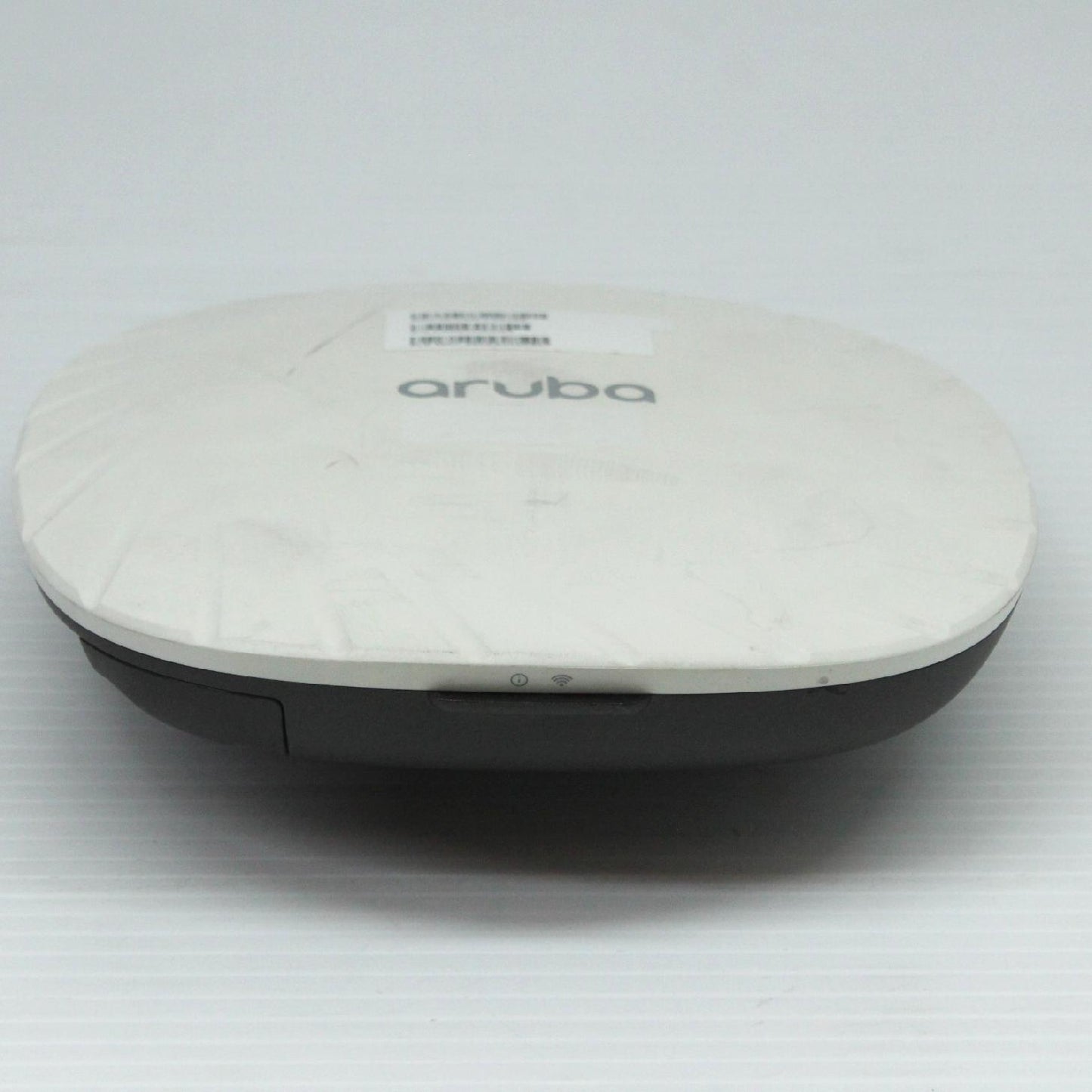

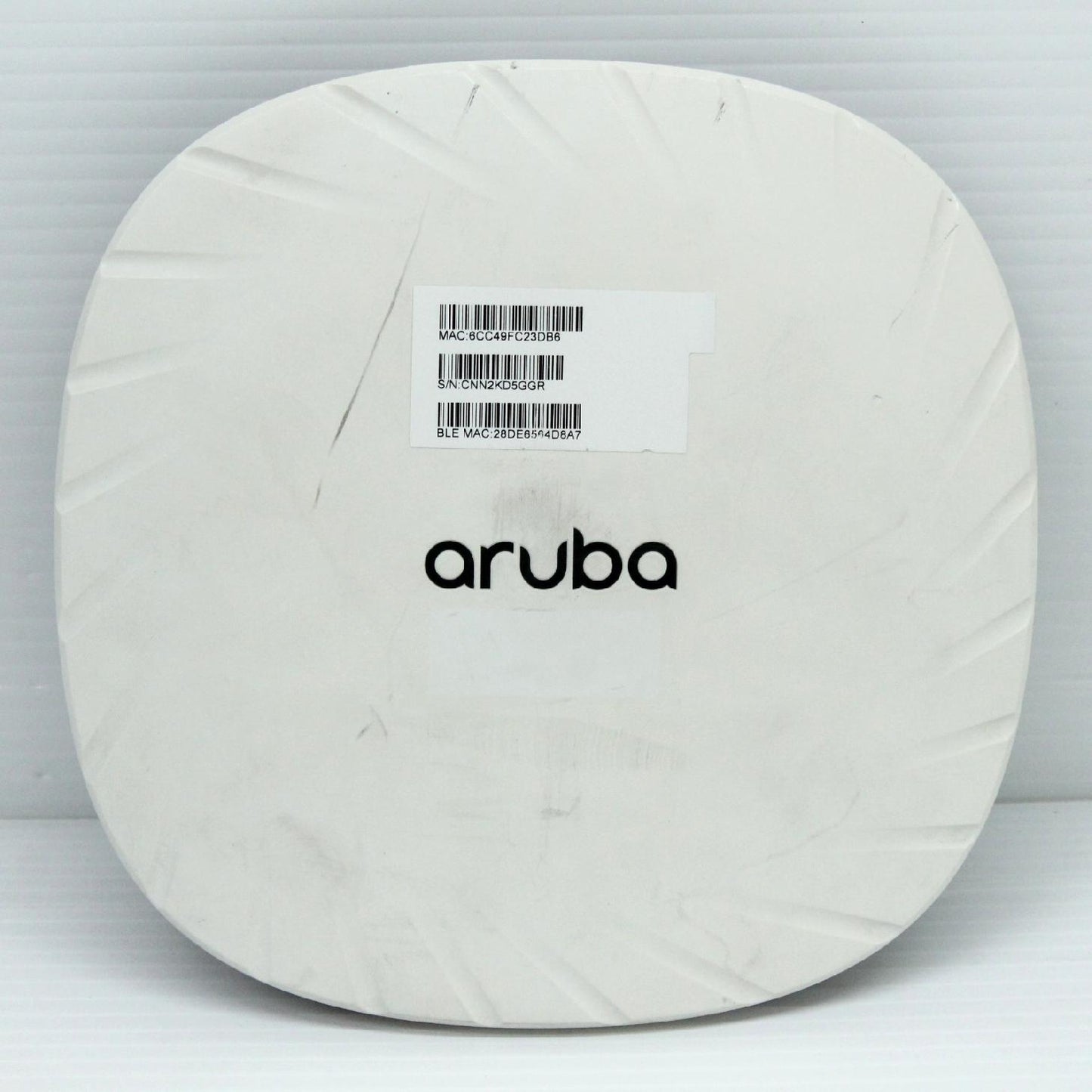

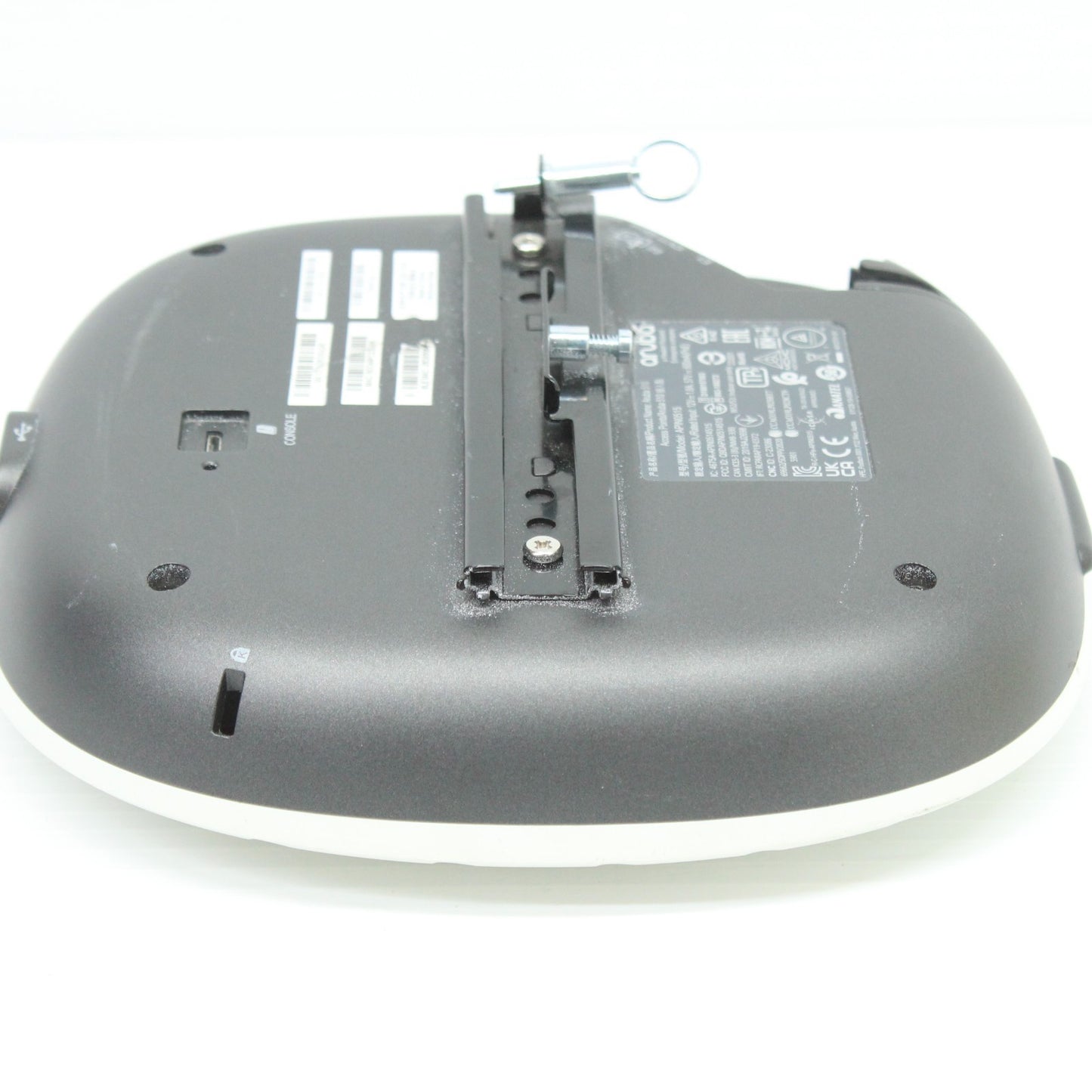

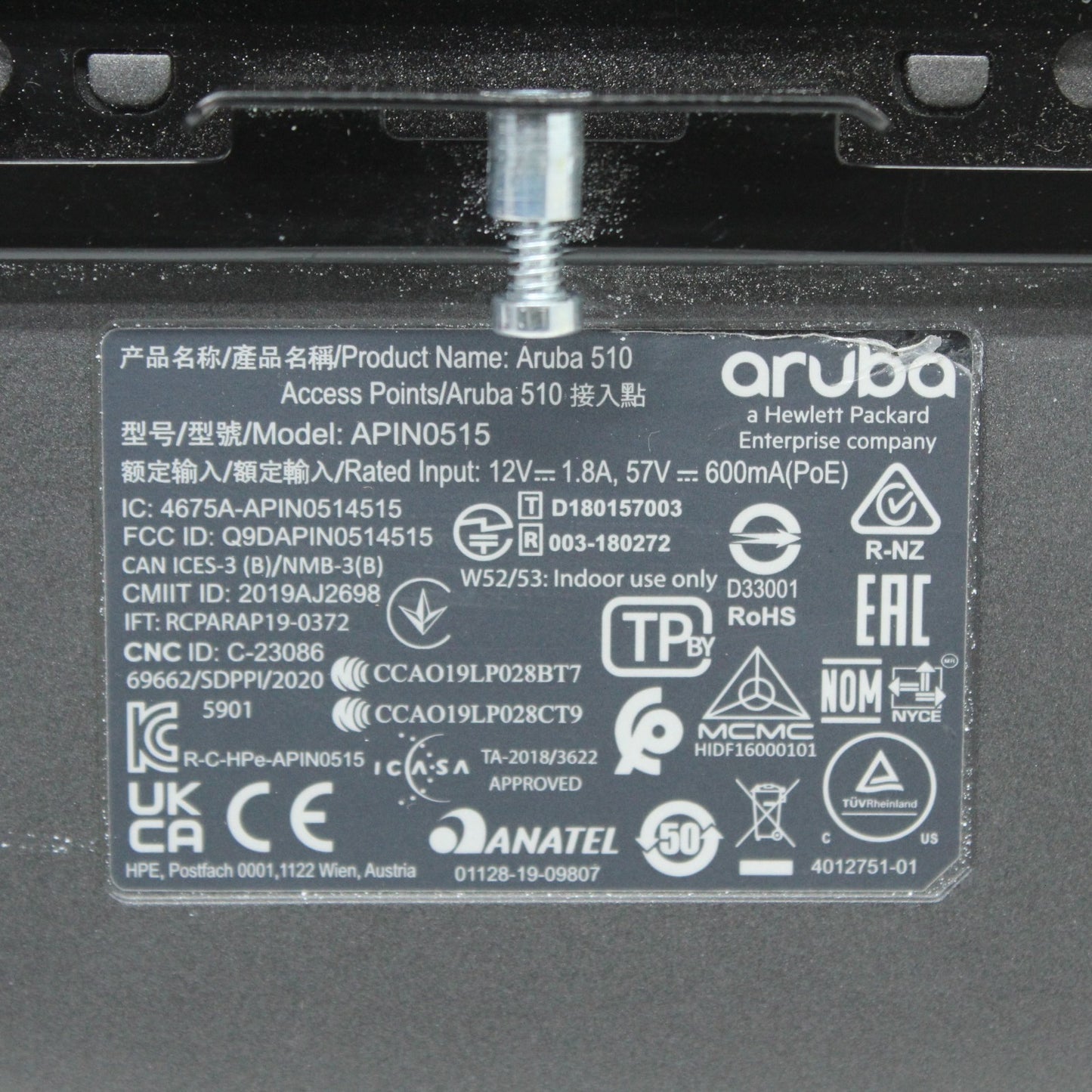

HPE Aruba AP-515 Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified AP + PSU

Taxes included. Shipping calculated at checkout.

Low stock: 2 left

Description

HPE Aruba AP-515 Dual Radio Access Point

General

Device Type

Radio access point

Ruggedized Design

Indoor

Width

20 cm

Depth

20 cm

Height

4.6 cm

Weight

810 g

Networking

Form Factor

In-ceiling

Connectivity Technology

Wireless

Data Transfer Rate

4.8 Gbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 575 Mbps
Maximum data rate (5 GHz): 4.8 Gbps
Aggregate bandwidth: 5.4 Gbps

Capacity

Wireless clients per Wi-Fi radio: 256
OFDMA units: 16
BSSIDs per radio: 16

Status Indicators

System, status

Features

Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyser, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT)

Encryption Algorithm

WPA, WPA2, WPA3

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax

Aerial

Antenna

Internal

Antenna Qty

Directivity

Omni-directional

Gain Level

7.5 dBi

Internet of Things (IoT)

Internet of Things (IoT) Compatible

Yes

Communications Technology

Bluetooth, Zigbee

Expansion / Connectivity

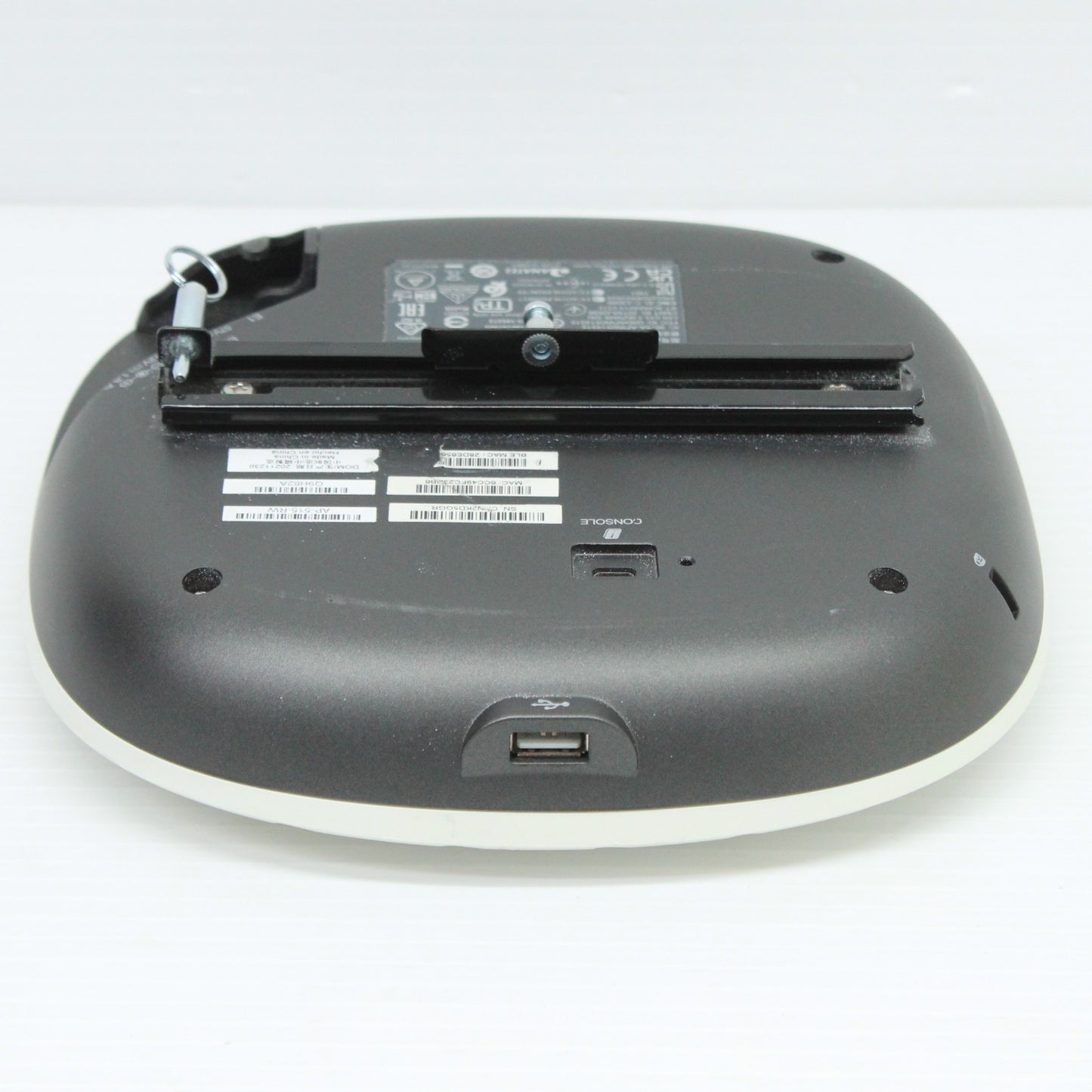

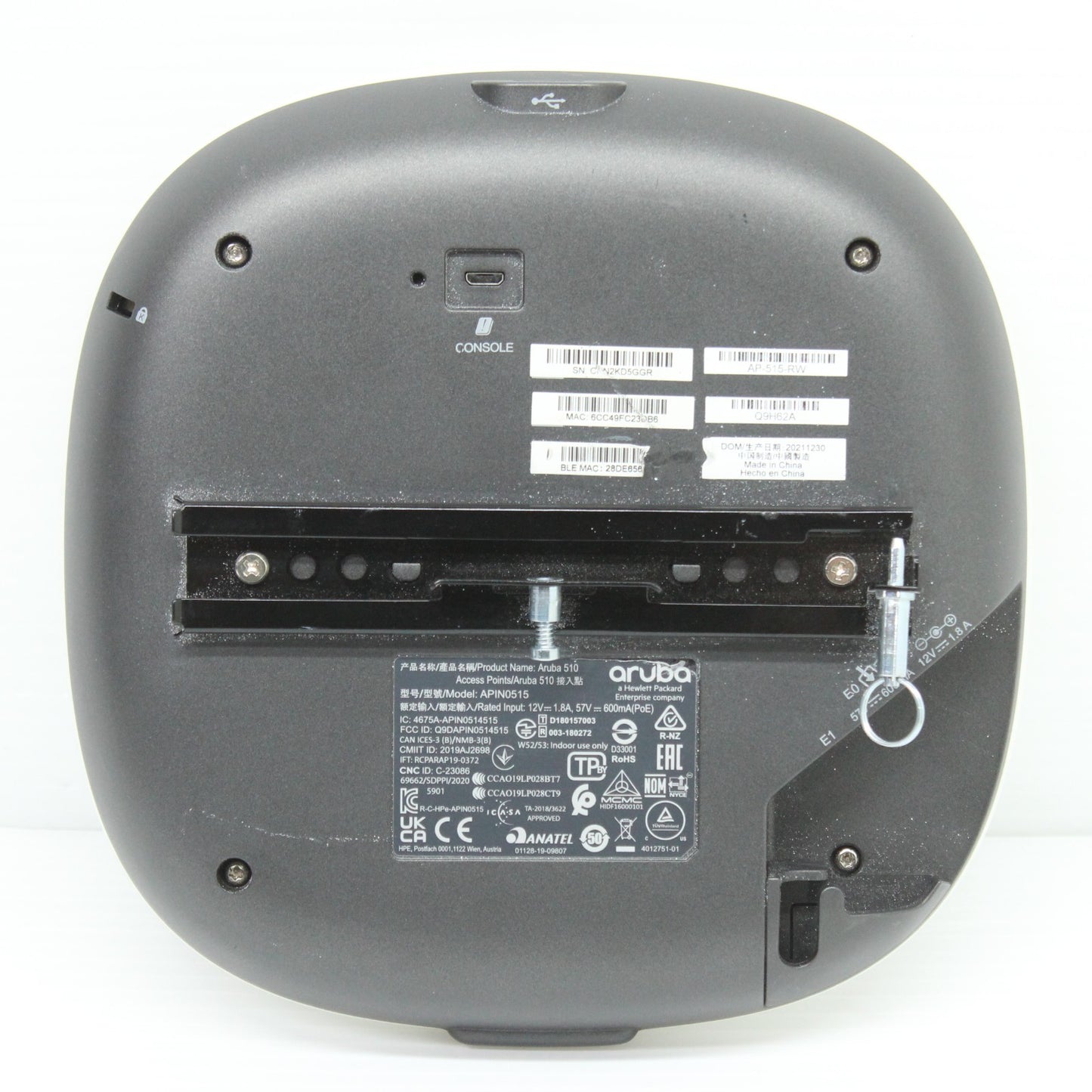

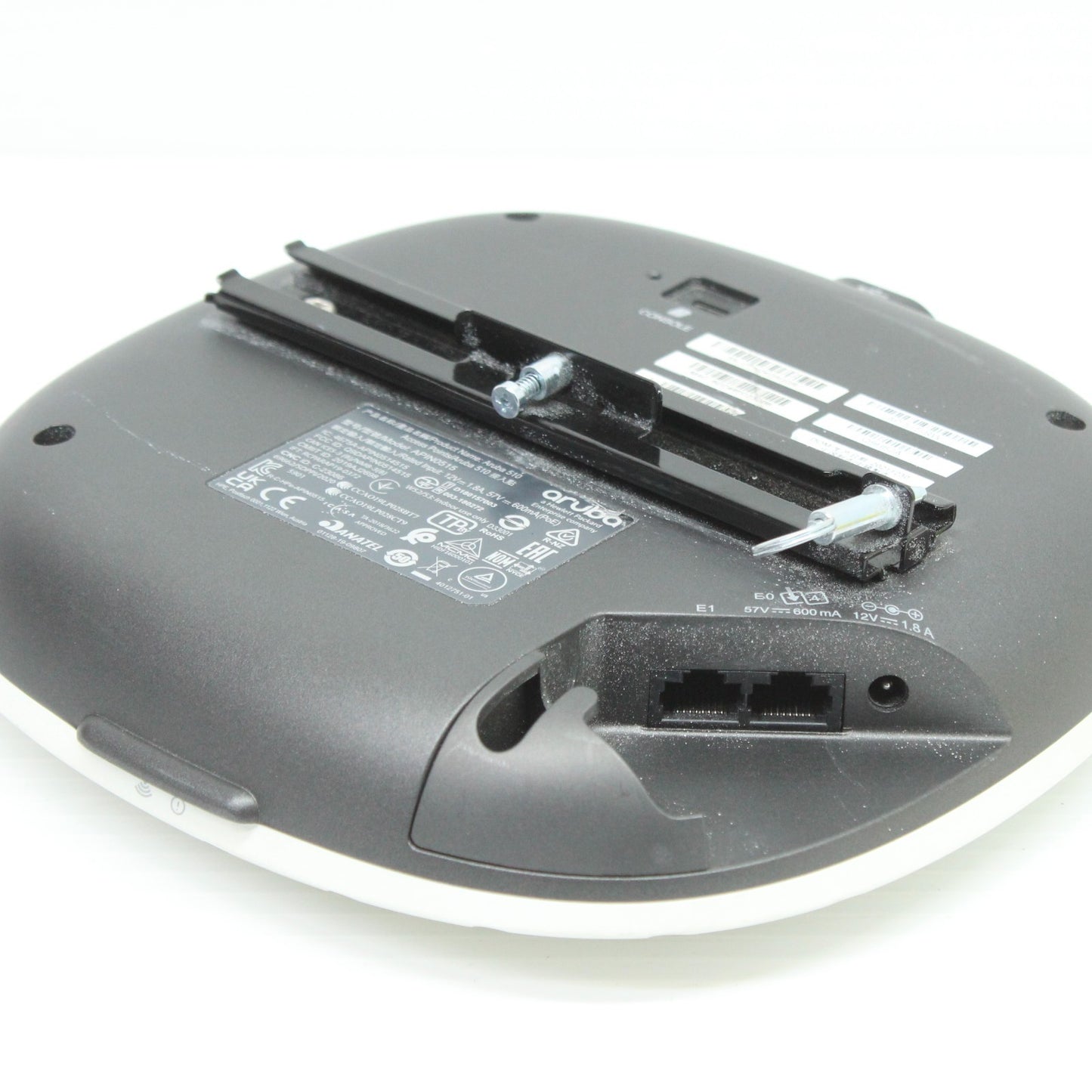

Interfaces

1 x HPE Smart Rate - RJ-45
1 x 1000Base-T - RJ-45
1 x USB 2.0 - Type A
1 x console - micro-USB

Miscellaneous

MTBF

64 years

Compliant Standards

UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019 Class 1.1, ETS 300 019 Class 2.3

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

16 Watt

Software / System Requirements

OS Required

ArubaOS, InstantOS

SPECIFICATIONS:
