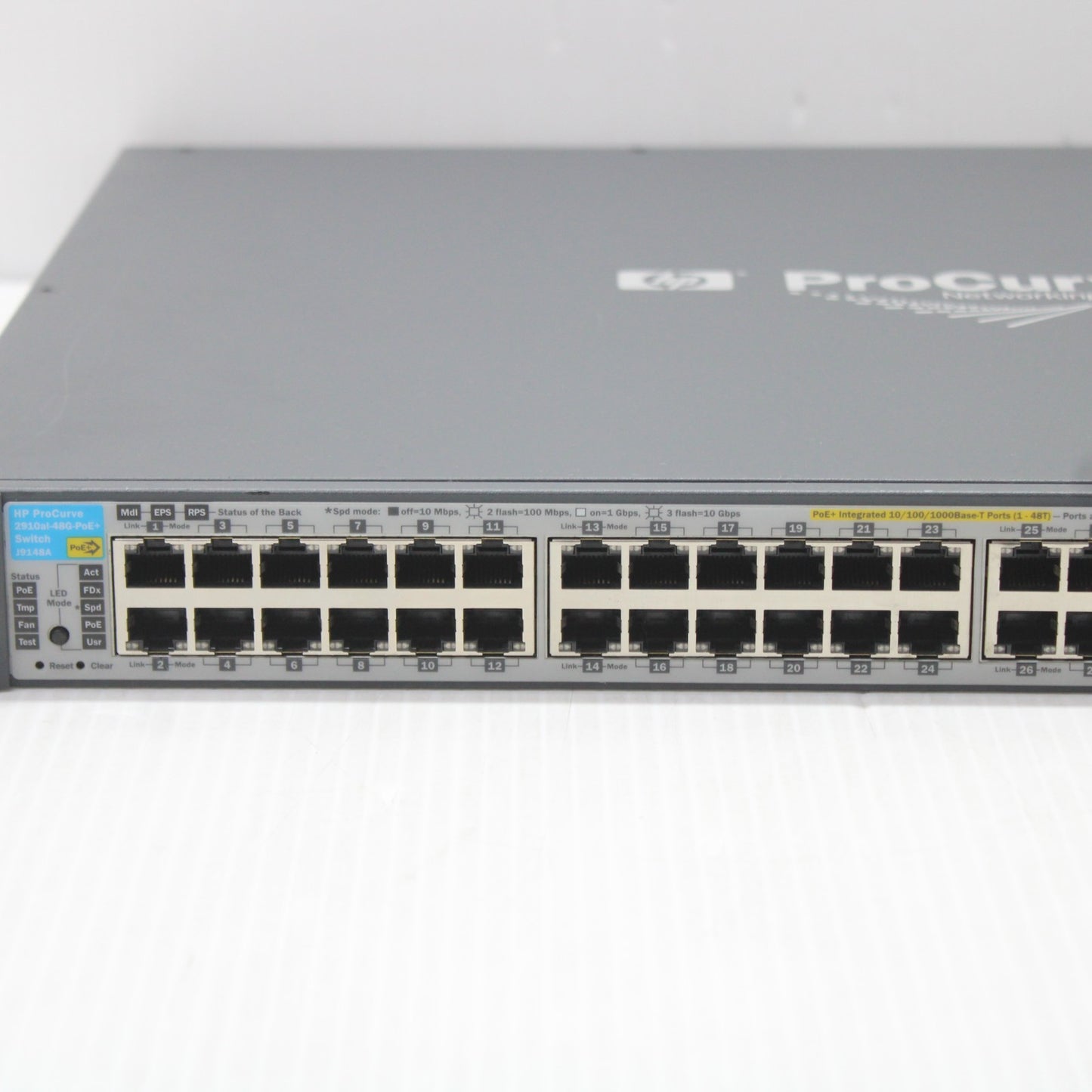

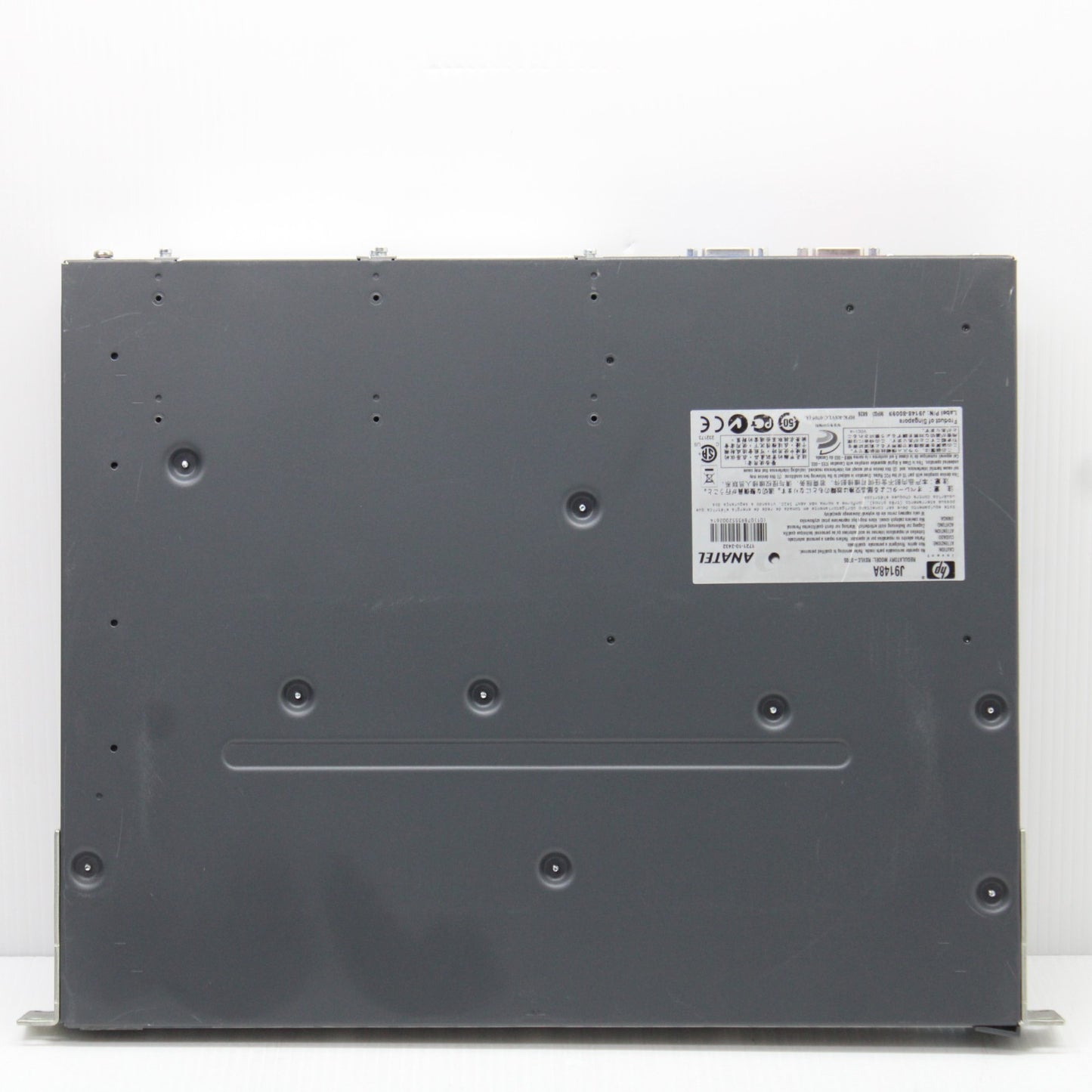

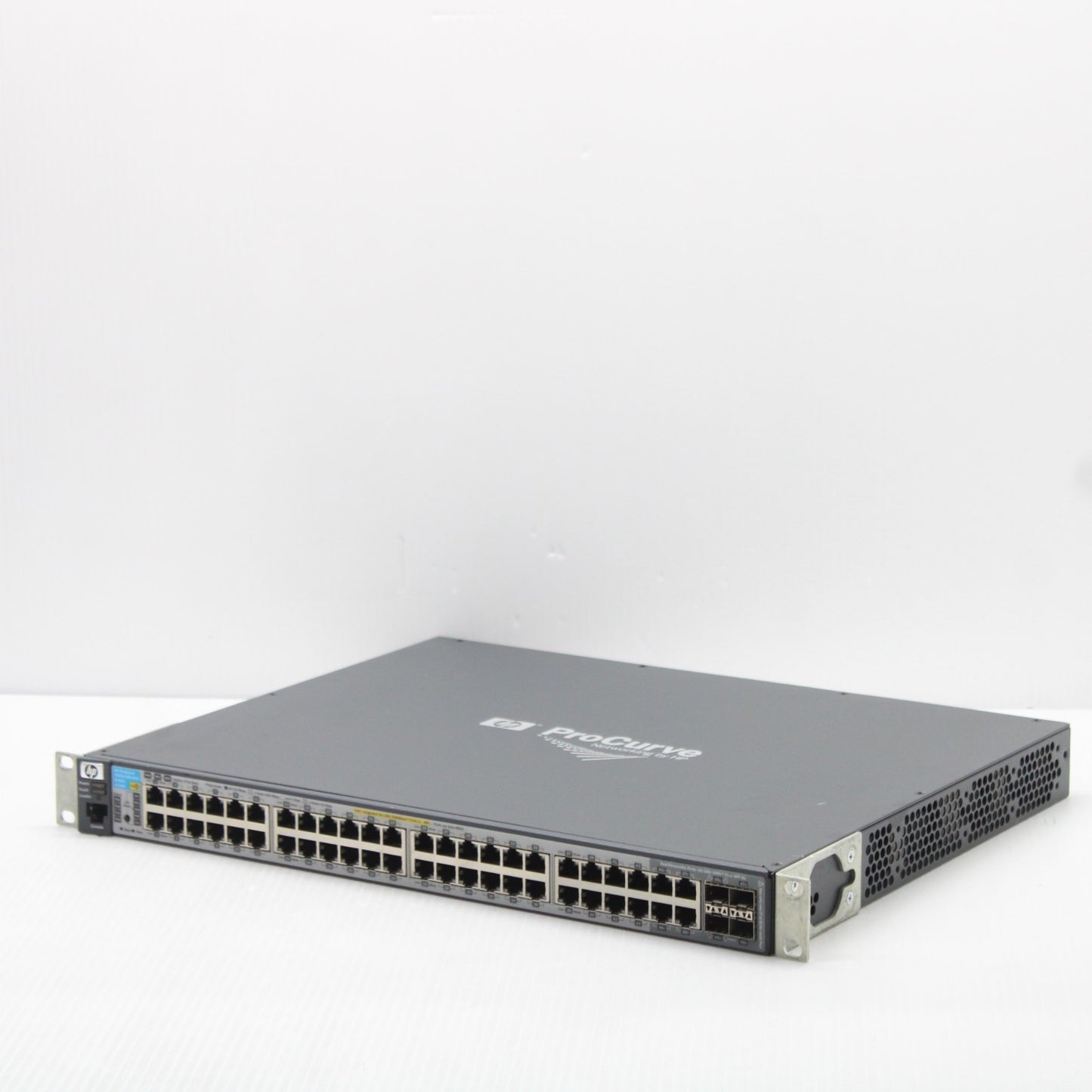

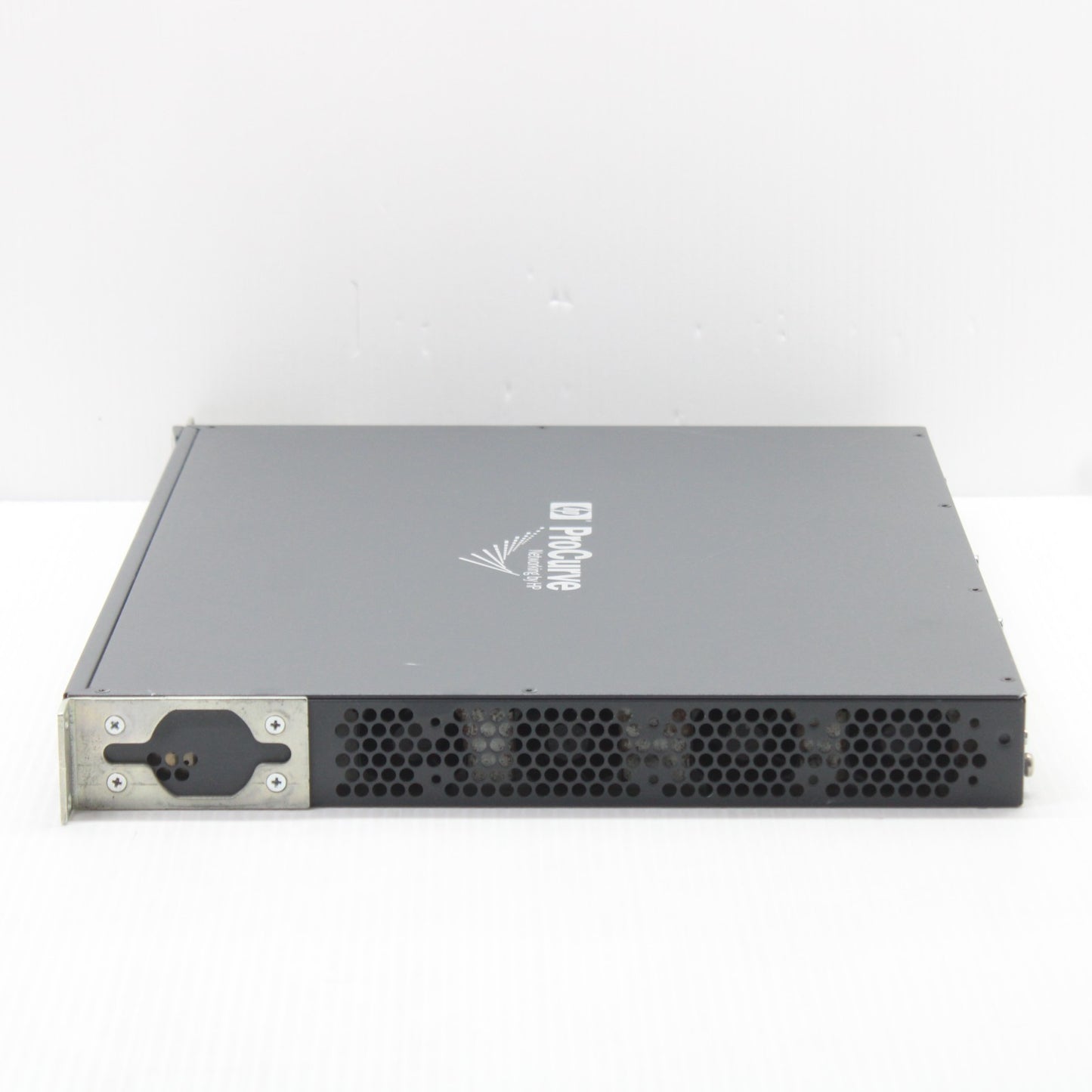

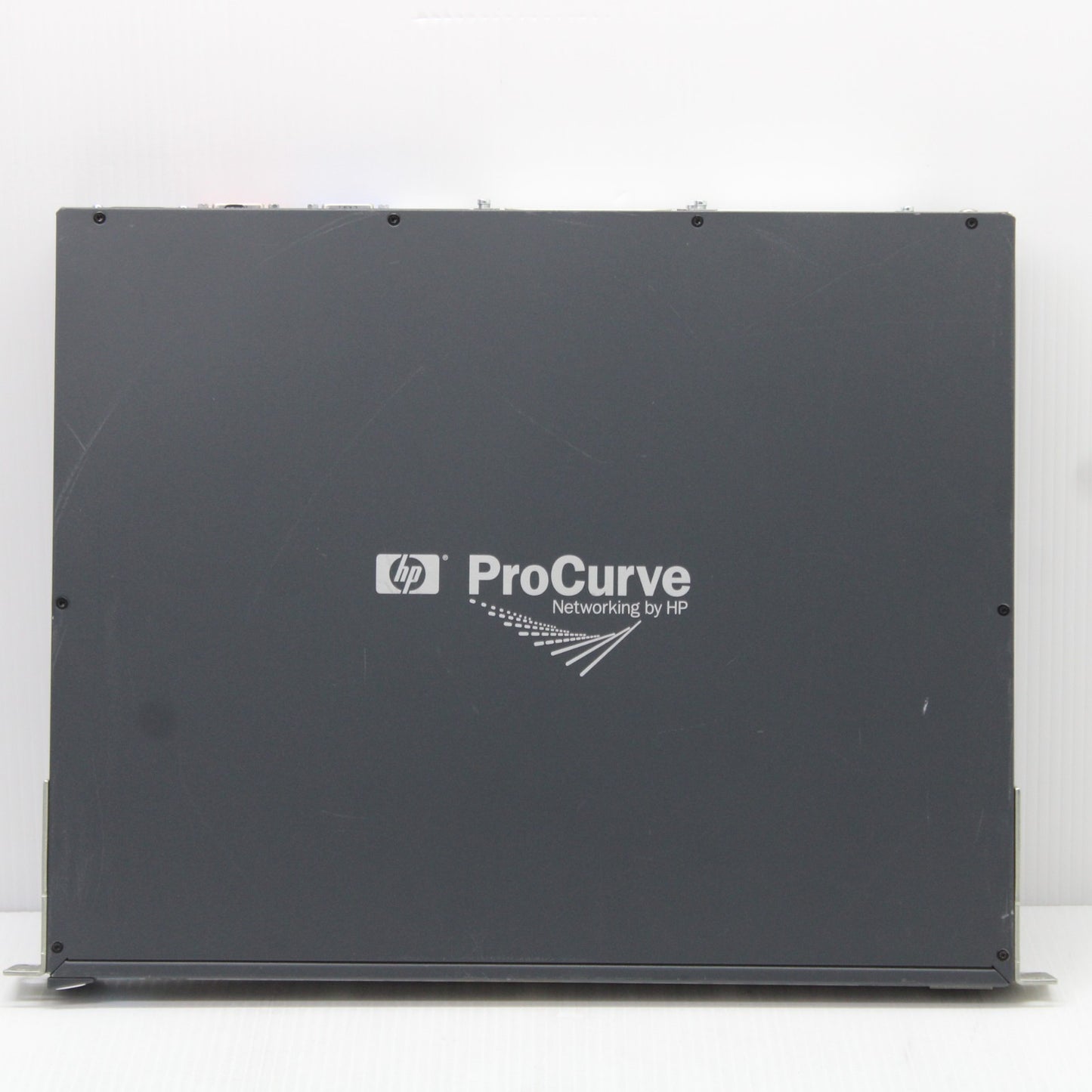

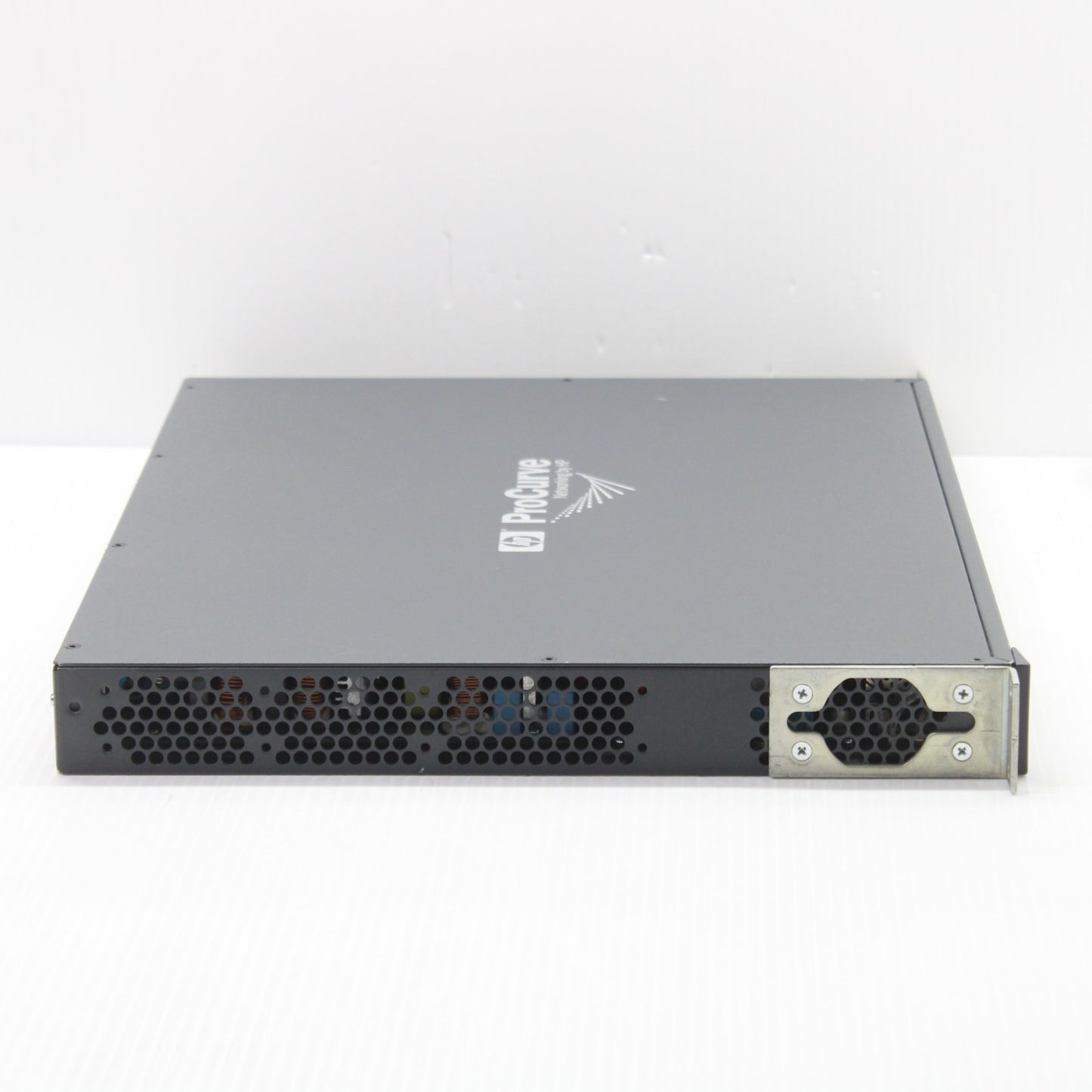

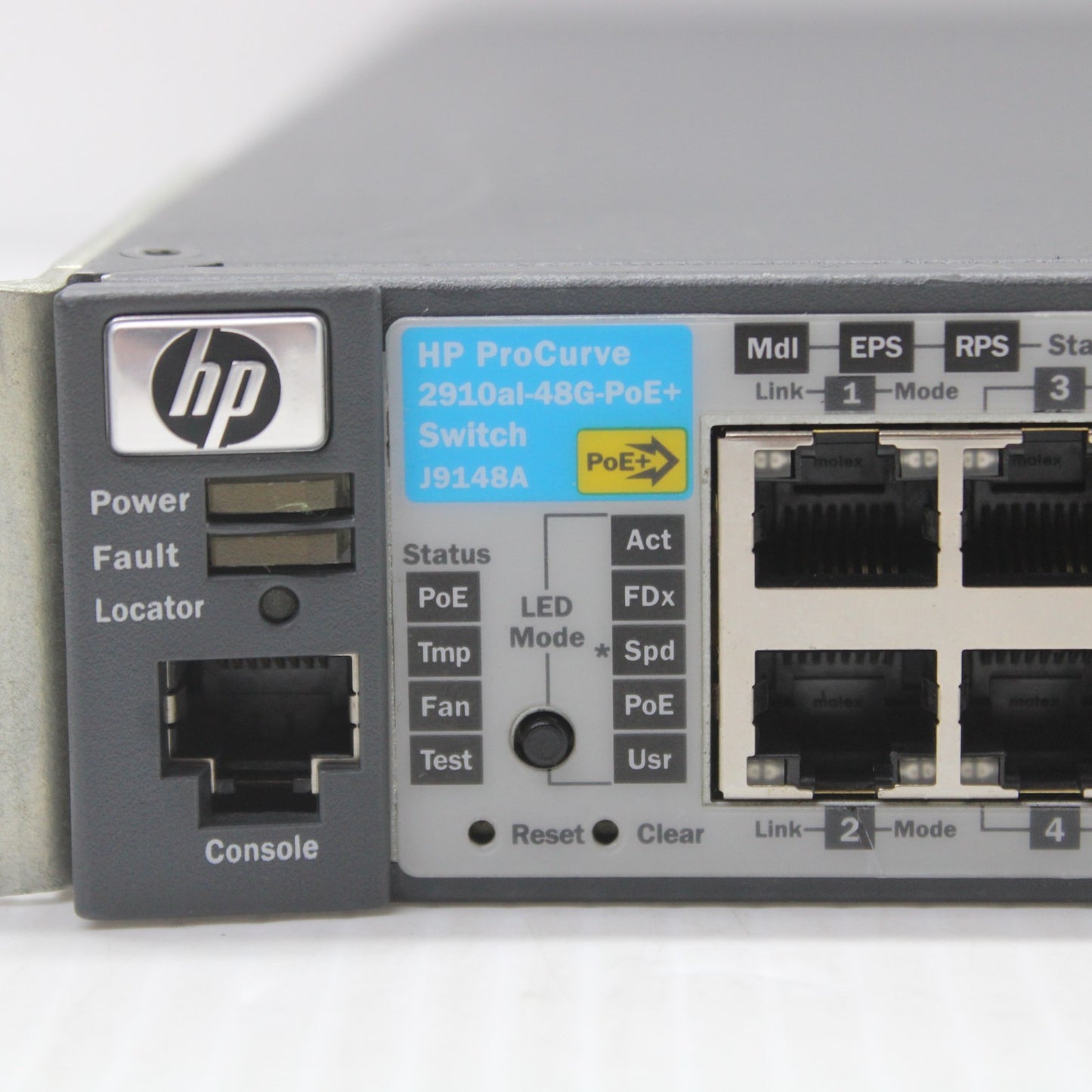

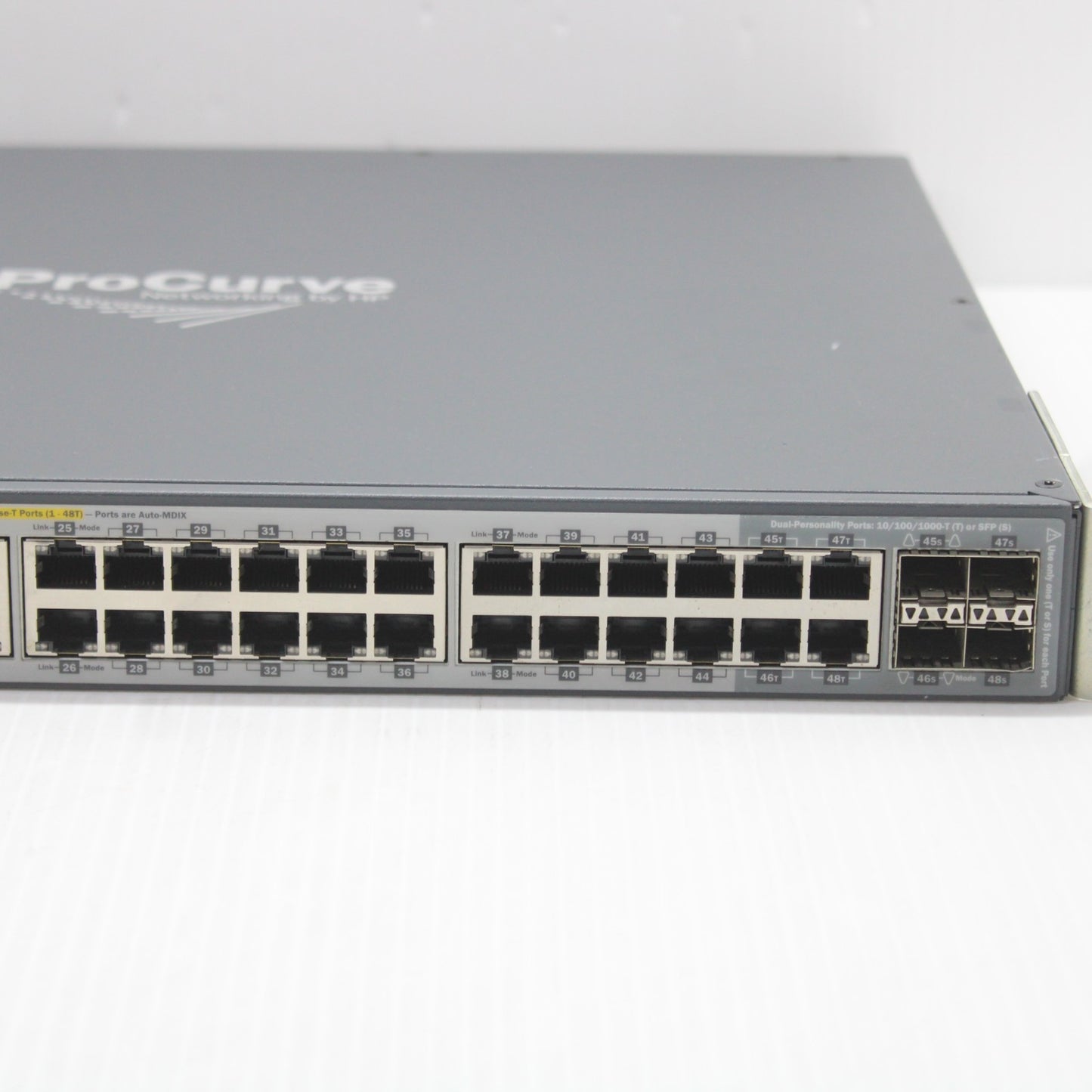

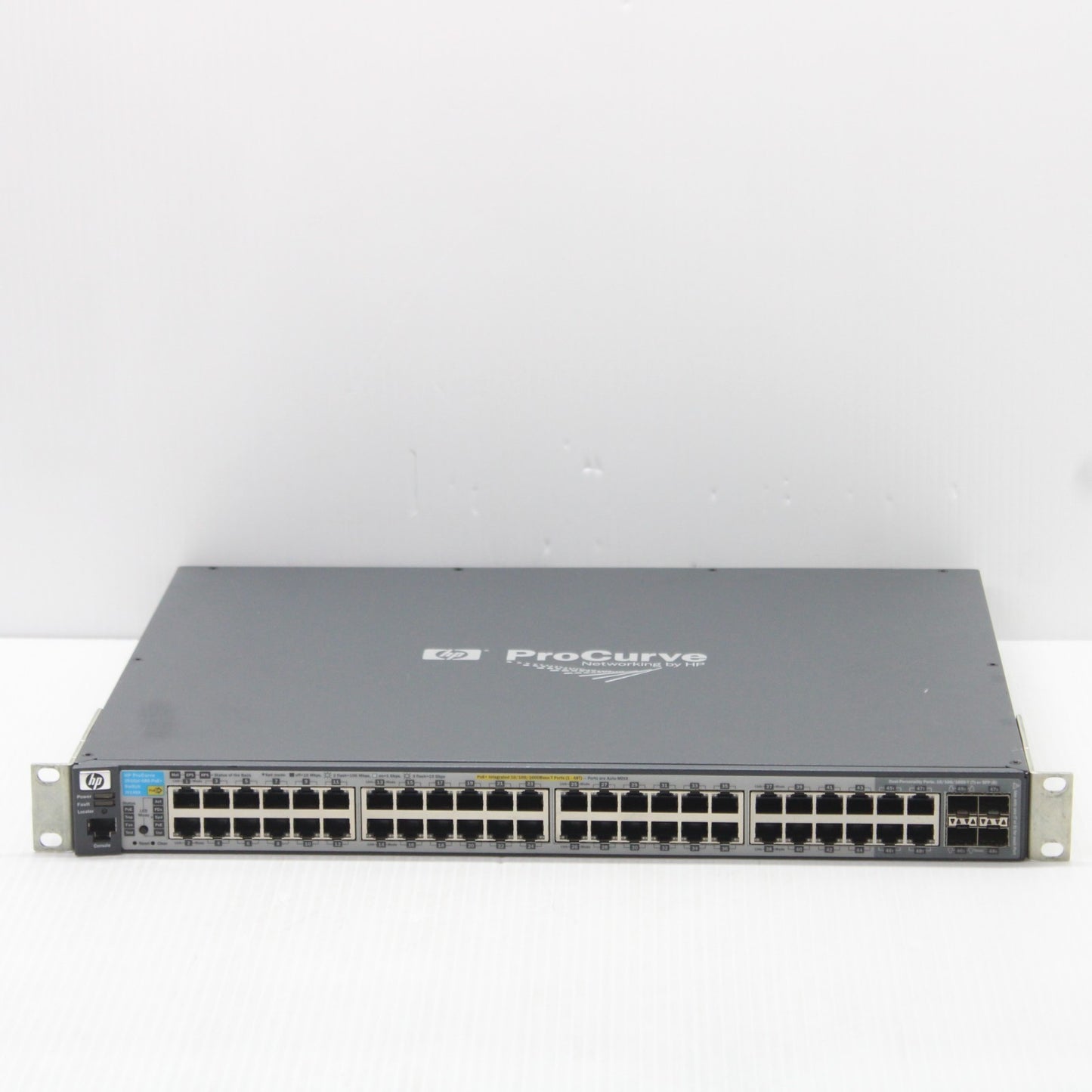

HP ProCurve 2910al 48G PoE+ J9148A Layer 2 Fully Managed Gigabit Switch

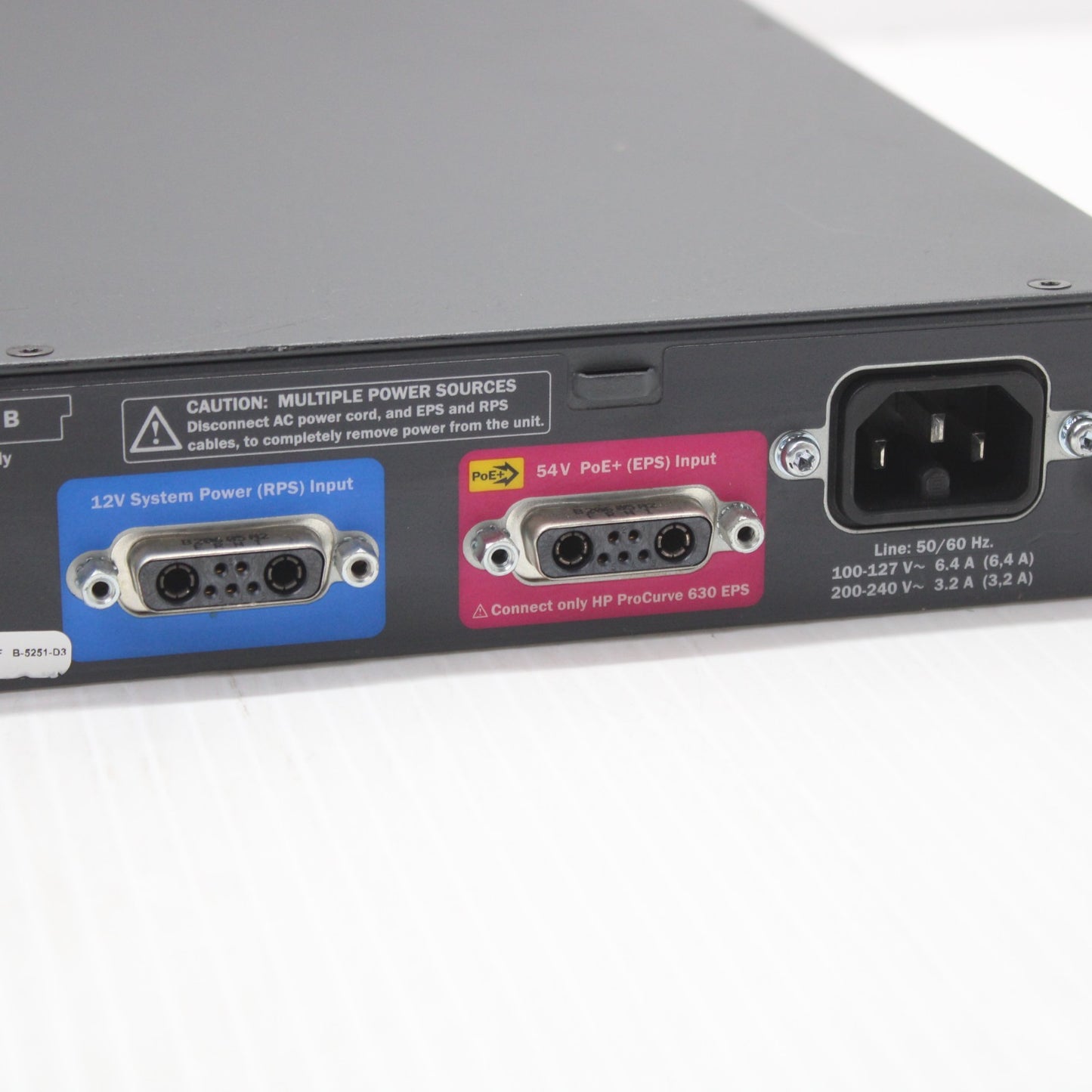

Model HP 2910al-48G-PoE+ Switch Part Number J9148A Series HP ProCurve 2910al Series Form Factor 1U Rackmount Total Ports 48 x 10/100/1000 Mbps RJ-45 ports + 4 x Dual-Personality ports (RJ-45/SFP) PoE Support IEEE 802.3af (PoE) and 802.3at (PoE+) PoE Power Budget 382W (with standard power supply), expandable to 870W with optional supply Switching Capacity 104 Gbps Forwarding Rate 77.4 Mpps Layer Support Layer 2 with Layer 3 Lite (static routing) Expansion Slots 2 x 10GbE module slots (CX4, SFP+, stacking modules) Stacking Up to 4 switches via optional stacking modules MAC Address Table 32,000 entries VLAN Support 4,094 VLANs Security Features 802.1X, ACLs, RADIUS, TACACS+, DHCP snooping QoS Features 802.1p, DSCP, rate limiting, traffic prioritization Management Interfaces Web GUI, CLI (console, Telnet, SSH), SNMP v1/v2/v3 Power Supply Internal AC (100–240V, 50/60 Hz), optional redundant supply Cooling Fan-cooled Dimensions (WxDxH) 44.25 x 34.8 x 4.4 cm Weight ~5.6 kg Operating Temperature 0°C to 45°C SPECIFICATIONS:

Feature	Details
