Dell Force10 S4820T 48xRJ-45 10G 4xQSFP+ 40G FTR Managed Switch
£220.99
£198.89
JANUARY SALE10% OFF
Taxes included.
Shipping calculated at checkout.
Low stock: 1 left
Description
Description

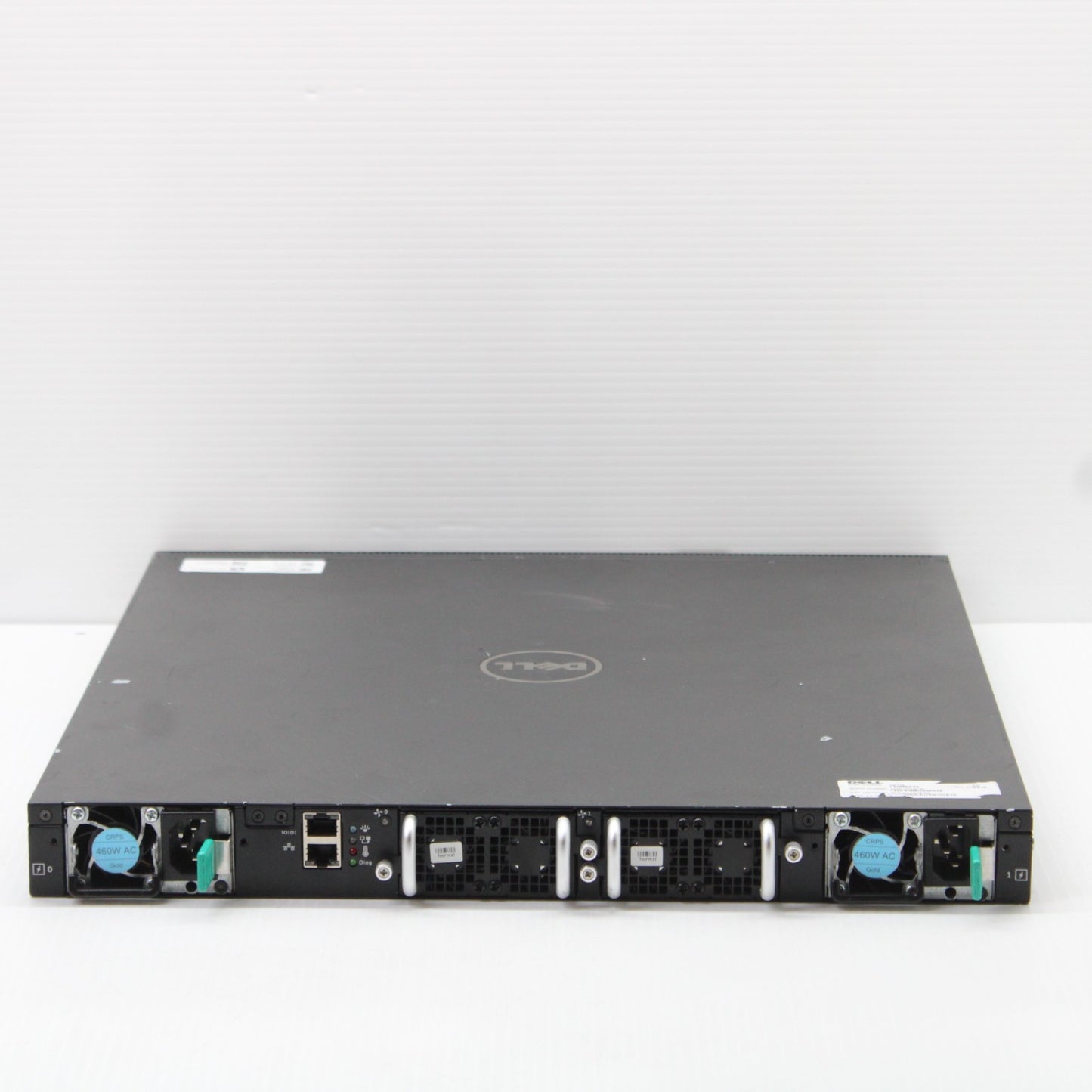

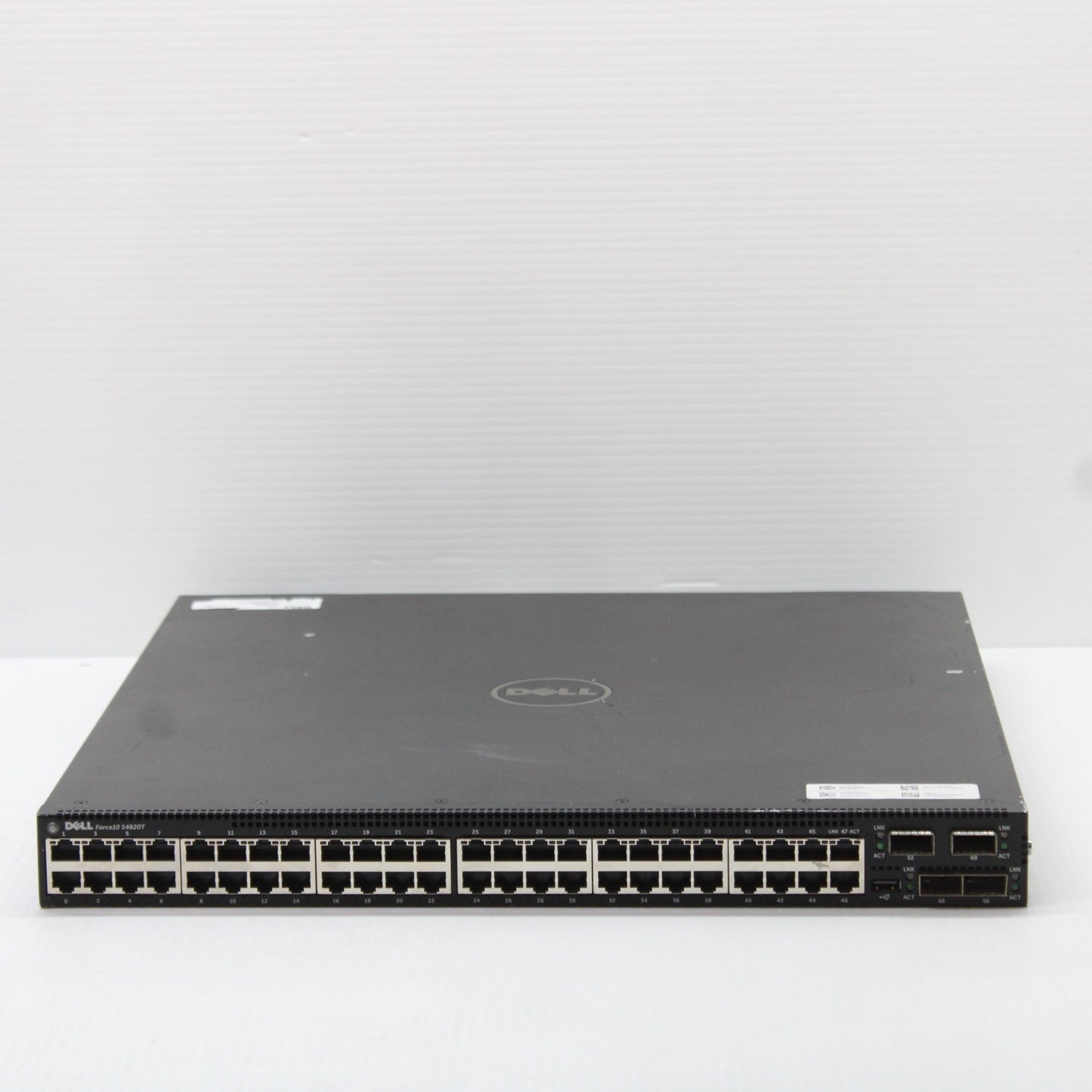

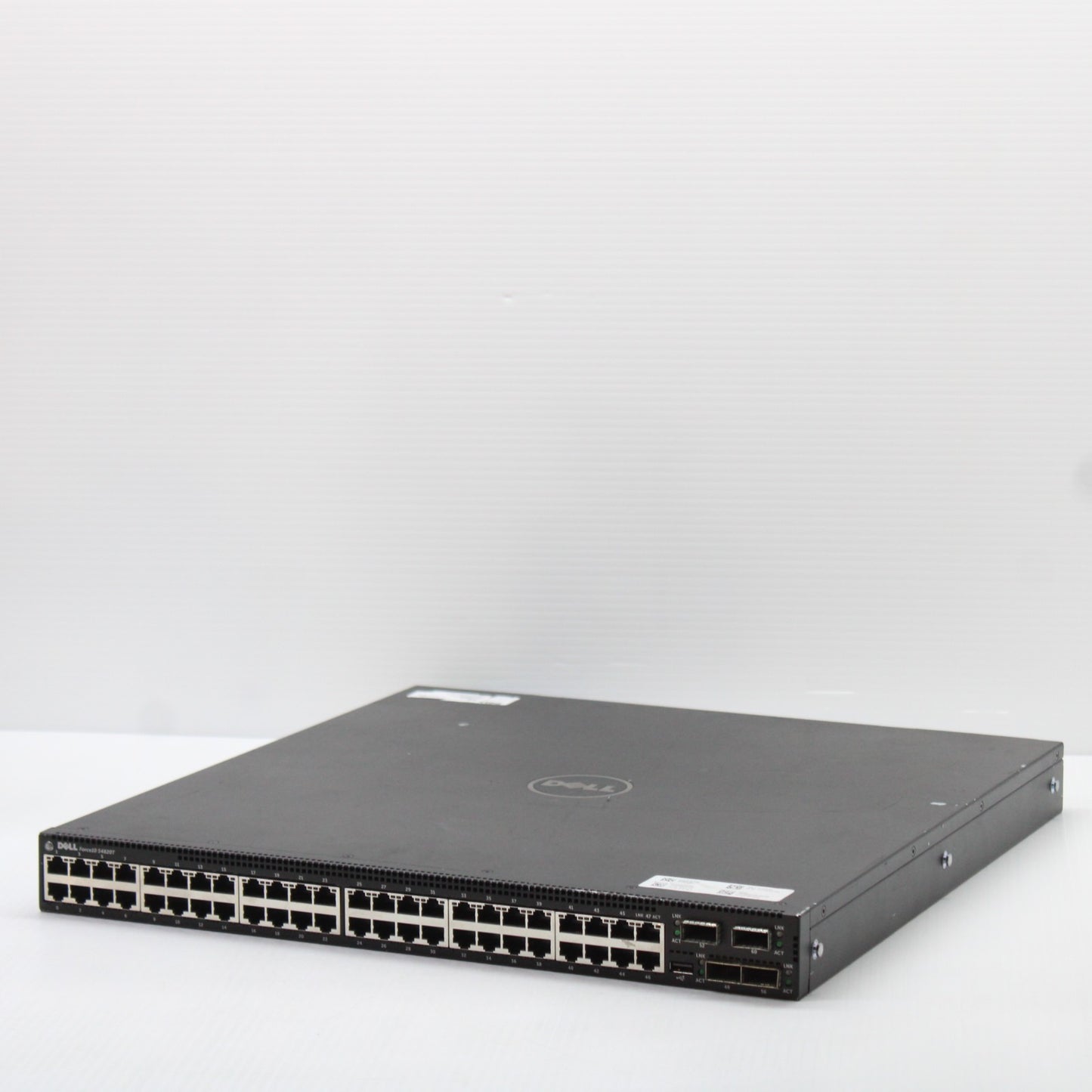

Dell Force10 S4820T Switch
| Specification Category | Detail |
|---|---|
| Product / Model | Dell Force10 S4820T (S-Series 1/10GBASE-T switch) |
| Device Type | High-performance managed Ethernet switch |

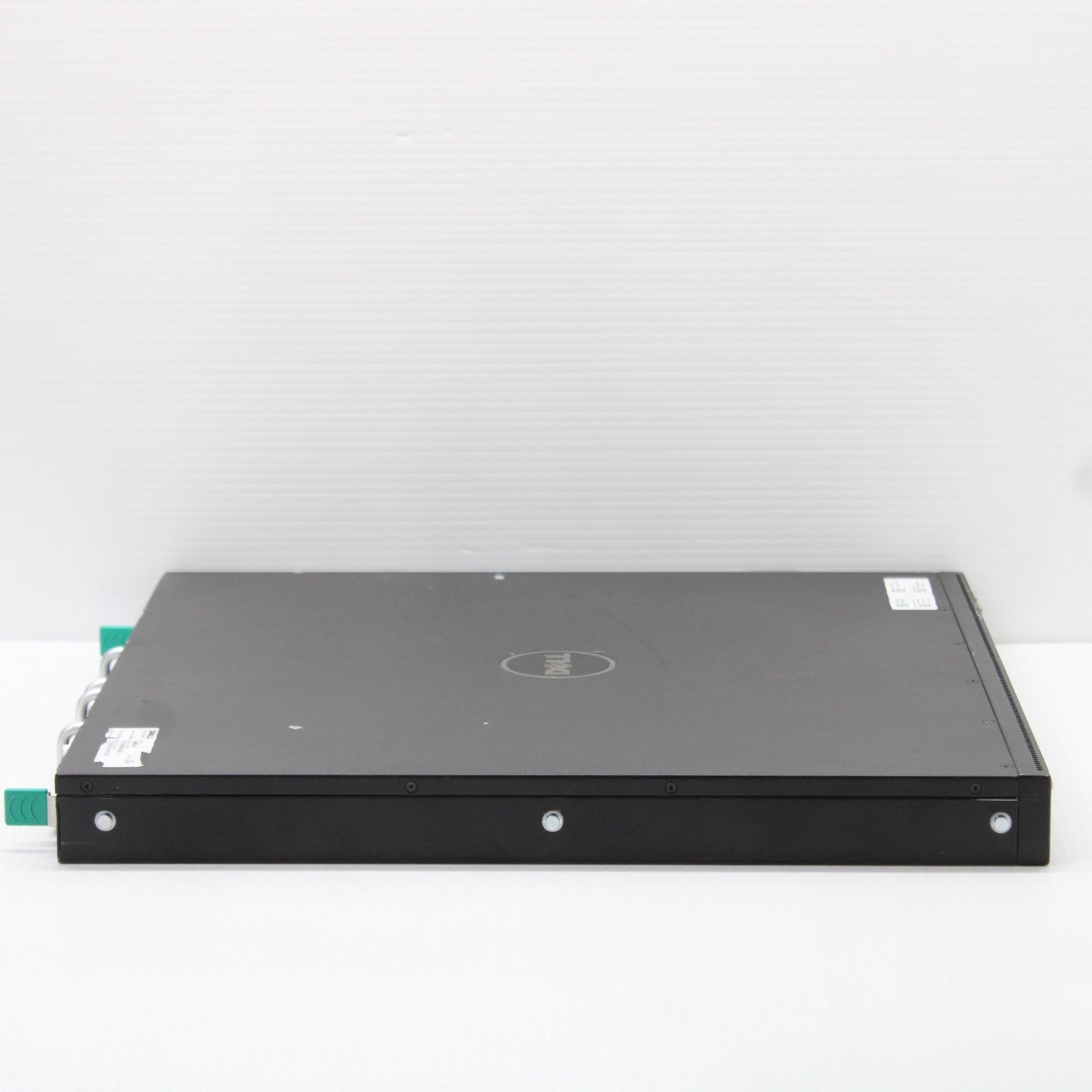

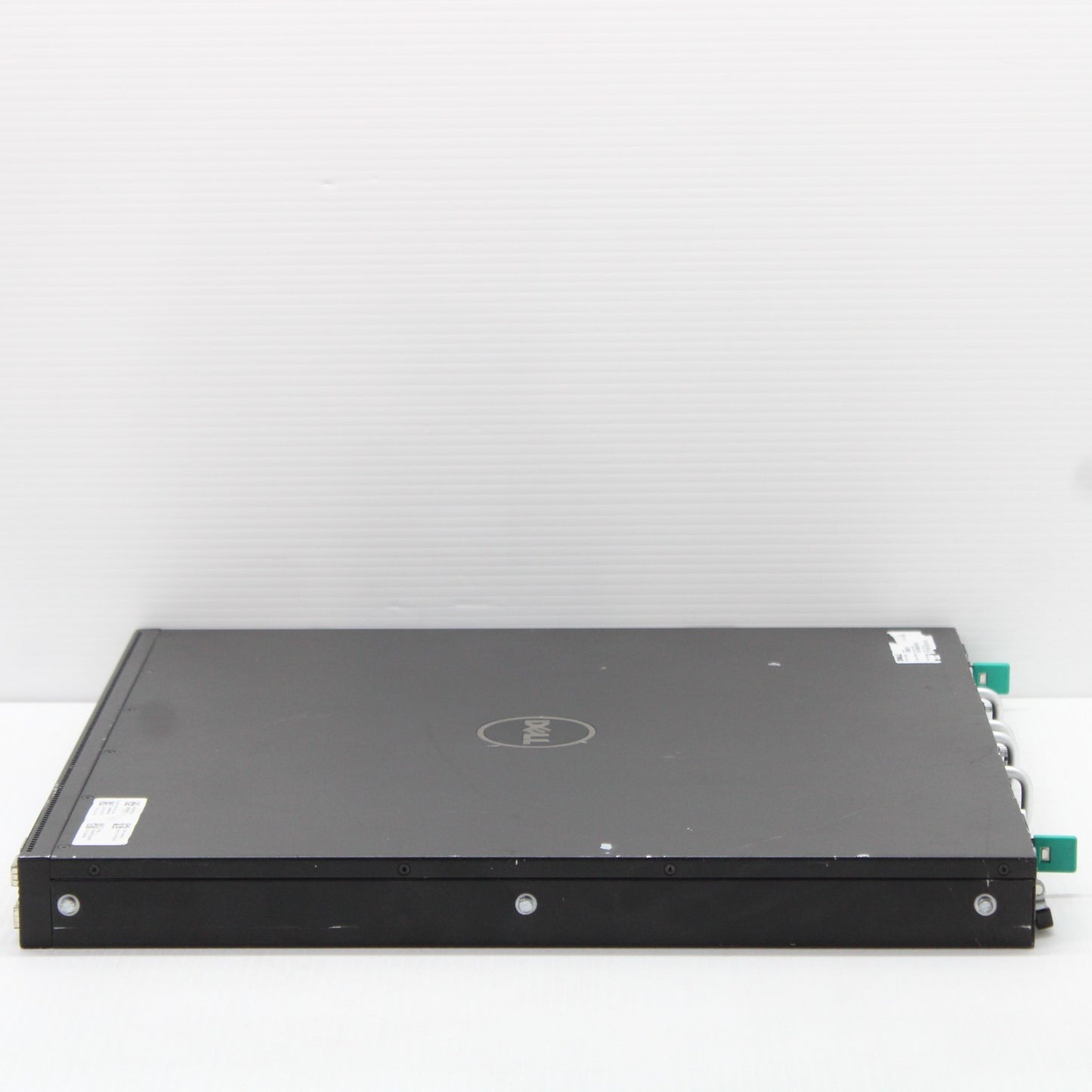

| Form Factor | 1 RU rack-mount chassis |
| Switching Architecture | Non-blocking, line-rate L2/L3 switching fabric |
| Switching Capacity | ~1.28 Tbps full-duplex (line-rate) |
| Forwarding Performance | High line-rate performance optimized for data center environments |

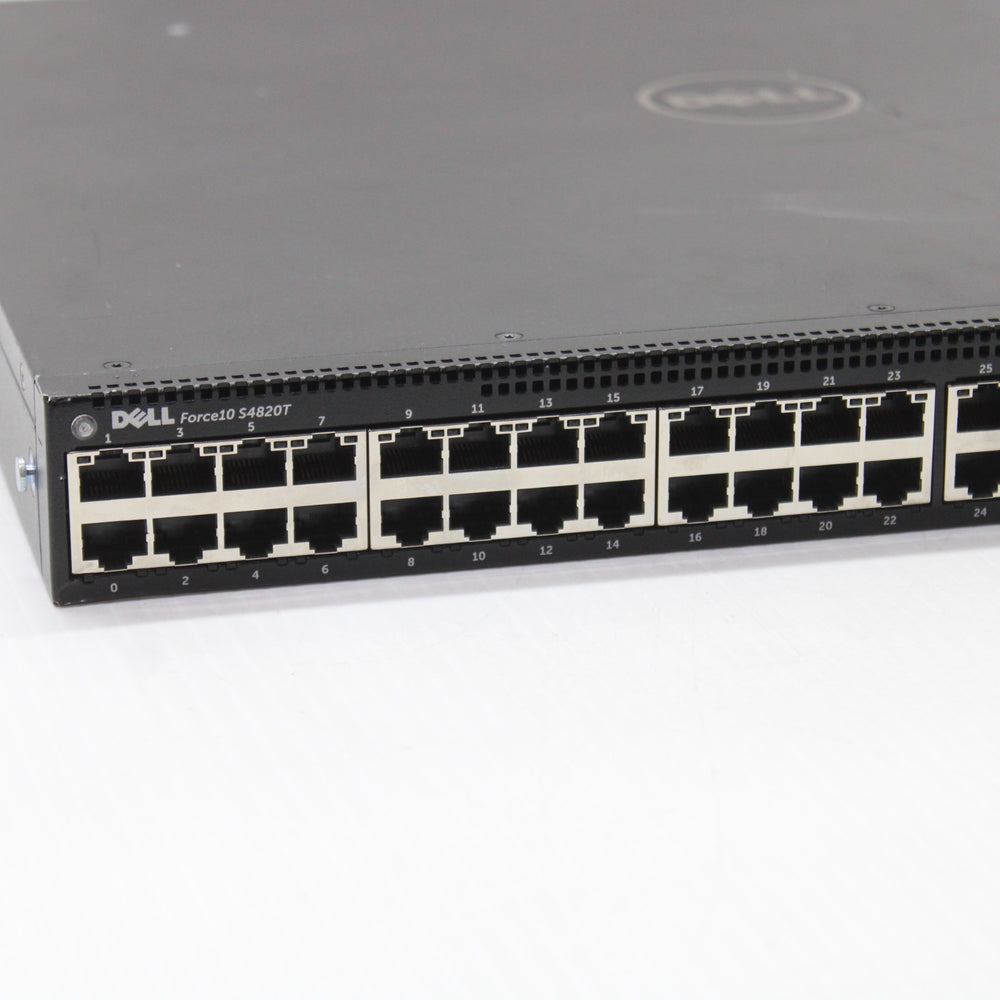

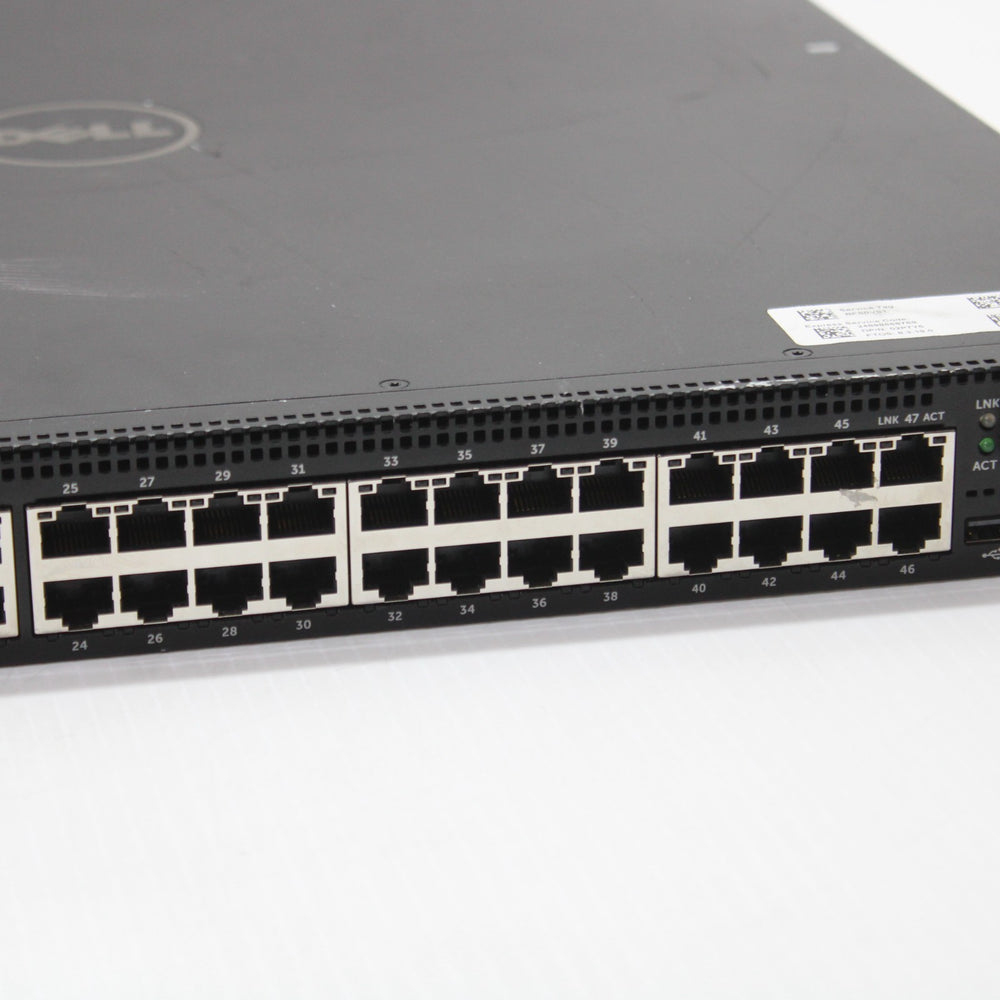

| Main Ports | 48 × 1/10 GbE RJ45 BASE-T copper ports (supports 100 Mb/1 Gb/10 Gb) |

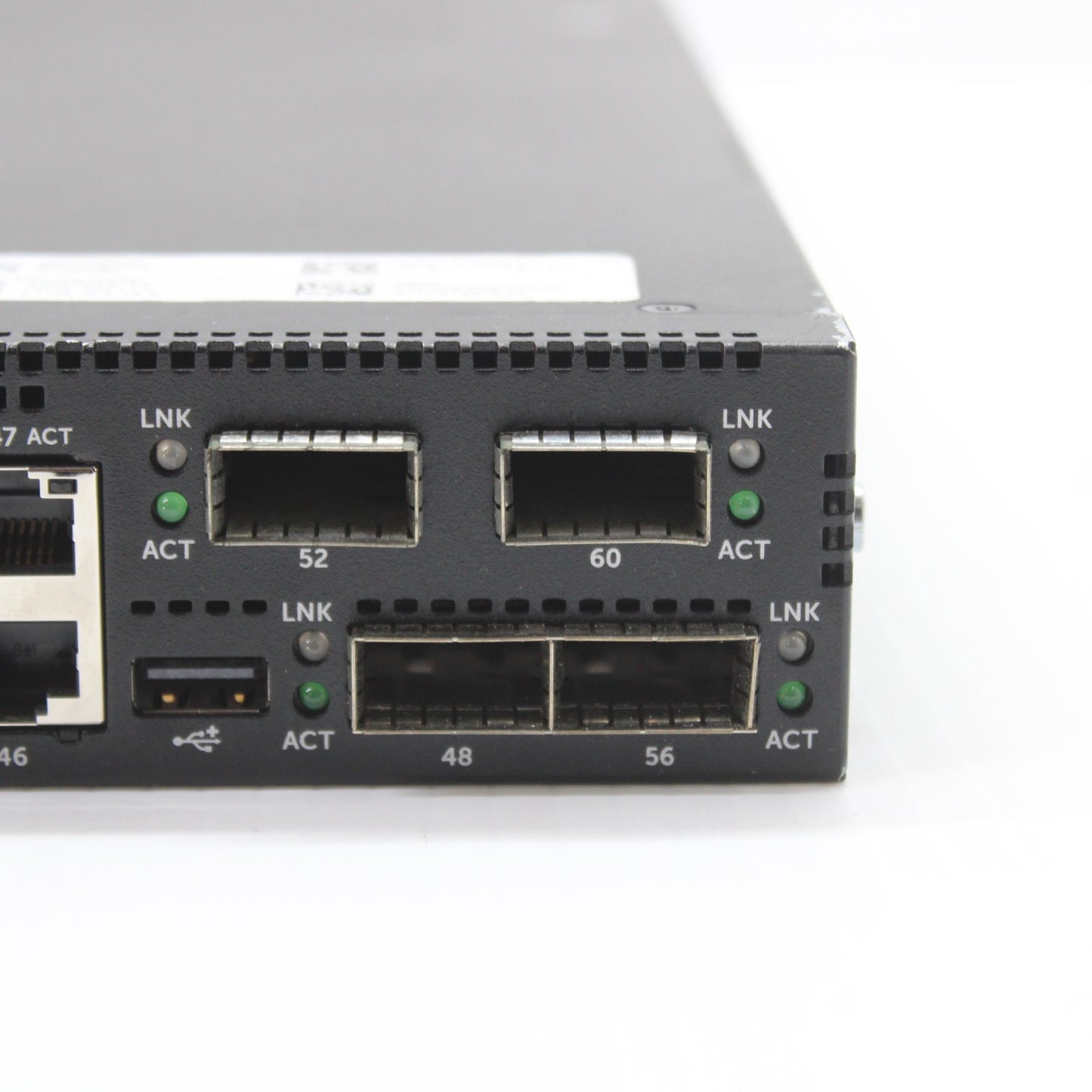

| Uplink Ports | 4 × 40 GbE QSFP+ ports (can be broken out to 4 × 10 GbE each with breakout cables) |
| Console / Management | 1 × RJ45 console/management port (RS-232) |
| Operating System | Dell Force10 Operating System (FTOS) / DNOS |
| Layer Support | Layer 2 and Layer 3 switching and routing (IPv4/IPv6) |
| MAC Address Table | ~128,000 entries |
| IPv4 / IPv6 Routes | ~16,000 IPv4 / ~8,000 IPv6 entries (shared CAM) |
| Link Aggregation | Supports up to 128 LAG groups with up to 8 members each |
| VLANs | Supports up to 4K VLAN IDs |
| Airflow Options | IO Panel → PSU or PSU → IO Panel (varies by model/installation) |

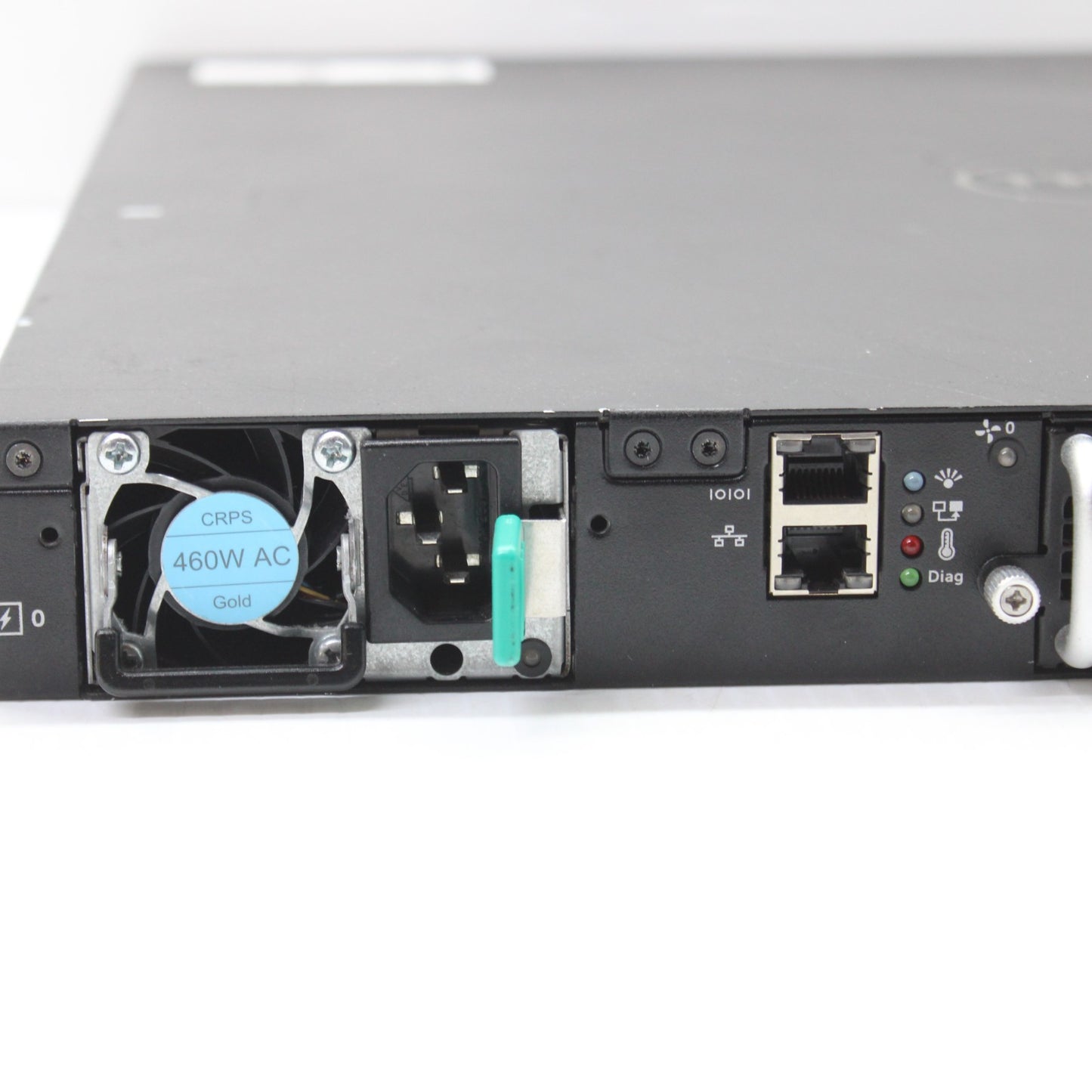

| Power Supply | Internal AC power (e.g., 100–240 VAC, 50/60 Hz); options for DC also documented |
| Cooling | Dual hot-swappable fan modules |
| Dimensions | ~1.71″ H × 17.09″ W × 18.11″ D (1 RU) |
| Weight | ~21.7 lbs (≈9.86 kg) |
| Environmental | Operating temp ~0–40 °C; humidity 5–90 % non-condensing |
| Special Features | Virtual Link Trunking (VLT), QoS, DCB, PFC, ETS, jumbo frame support, FTOS/DNOS routing protocols (OSPF, BGP, etc.) |
| Typical Use Cases | Top-of-Rack (ToR) in data centers, server aggregation, storage networking
SPECIFICATIONS: |
