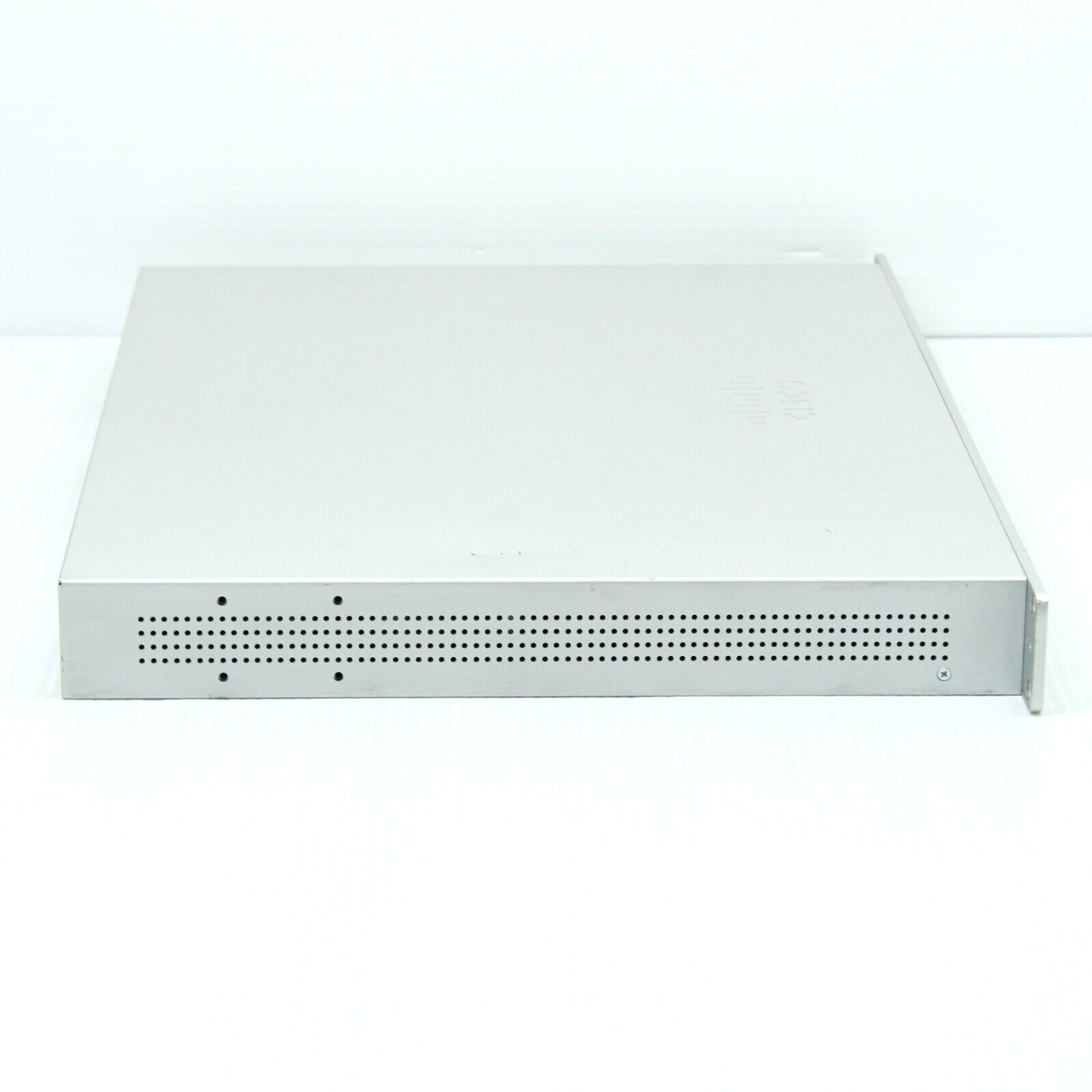

Cisco Meraki MS225 48LP L2 Cloud-Managed Switch 48x GigE 370W PoE 4 × 10GbE SFP+

Product Highlights

• Gigabit Access switching with 24 and 48 port models and optional PoE+

• 4 x 10G SFP+ uplink interfaces on all models

• Built-in dual stacking interfaces with up to 80G bandwidth

• Non-blocking switch backplane with up to 176 Gbps bandwidth support

• Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices

• 6 dedicated QoS queues for converged voice, video, and data applications

• Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms

• Integrated mounting brackets for rack and desk mounting

• Fanless design on select models









  Interfaces




  48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover




  802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-48 LP/FP, available on all ports (maximum of 30W per port for PoE+)




  4 × SFP+ 10 Gigabit Ethernet interfaces for uplink




  2 × Stacking interfaces




  Auto negotiation and crossover detection




  Management




  Managed via the cloud using the Meraki dashboard




  Integrated with Meraki Wireless and complete portfolio of IT products and solutions




  No-touch remote deployment (no staging needed)




  Detailed historical per-port and per-client usage statistics




  DHCP, client, and hostname fingerprinting




  SNMPd and SYSLOG support for integration with other network management solutions




  Seamless over-the-web firmware upgrades with scheduling & control




  Remote diagnostics




  Email, SMS and Mobile push notification alerts




  Cable testing and link failure detection with alerting




  Live remote packet capture




  Dynamic and interactive network discovery and topology




  Aggregated event logs with instant search




  Flexible stacking




  Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models




  Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration




  Ethernet switching capabilities




  802.1p Quality of Service prioritization




  802.1Q VLAN tagging with 4,095 addressable tags




  802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)




  Broadcast storm control




  802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)




  802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches




  IGMP snooping for multicast filtering




  MAC forwarding entries: 16K on 24-port models, 32K on 48-port models




  Security




  Integrated two-factor authentication for Dashboard management




  Role-based access control (RBAC) with granular device and configuration control




  Corporate wide password policy enforcement




  IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing




  MAC-based RADIUS authentication (MAB)




  Port security: Sticky MAC, MAC whitelisting




  DHCP snooping, detection and blocking




  STP Enhancements: BPDU guard, Root guard




  IPv4 ACLs




  Power over Ethernet:




  802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port




  Maximum PoE output (48LP/48FP): 370 / 740 W




  PoE available on all ports simultaneously




  Performance




  Non-blocking switching fabric




  Switching capacity: 128Gbps (24-port models), 176Gbps (48-port models)




  Forwarding rate (mpps): 95.24 (24-port models), 127.98 (48-port models)




  Jumbo Frame Support (9578 byte Ethernet frame)




  Flow control support




  Layer 3




  Static Routing (maximum of 16 static routes supported)




  DHCP Relay




  Power




  Power input: 100 – 240 VAC, 47-63 Hz




  Power consumption: 25 – 882 W




  RPS interface: Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information




  Mounting




  1U Rack-mountable with included rack mount hardware




  2-post front mounting options available




  Desktop-mountable with included feet




  Environment




  Operating temperature: 32°F to 104°F (0°C to 40°C)




  Humidity: 5 to 95% non-condensing




  MS225-24, MS225-48 feature fanless operation




  Regulatory




  CSA-US (US, Canada)




  FCC (USA)




  IC (Canada)




  CE (Europe)




  RCM (Australia/New Zealand)




  RoHS




  MTBF at 25°C




  MS225-48LP: 381,015




  Physical dimensions (H×W×D)




  MS225-48LP: 1.72” x 19.08” x 13.38”(4.38 x 48.46 x 34cm)




  Physical Weight




  MS225-48LP: 9.63 lb (4.37 kg)
