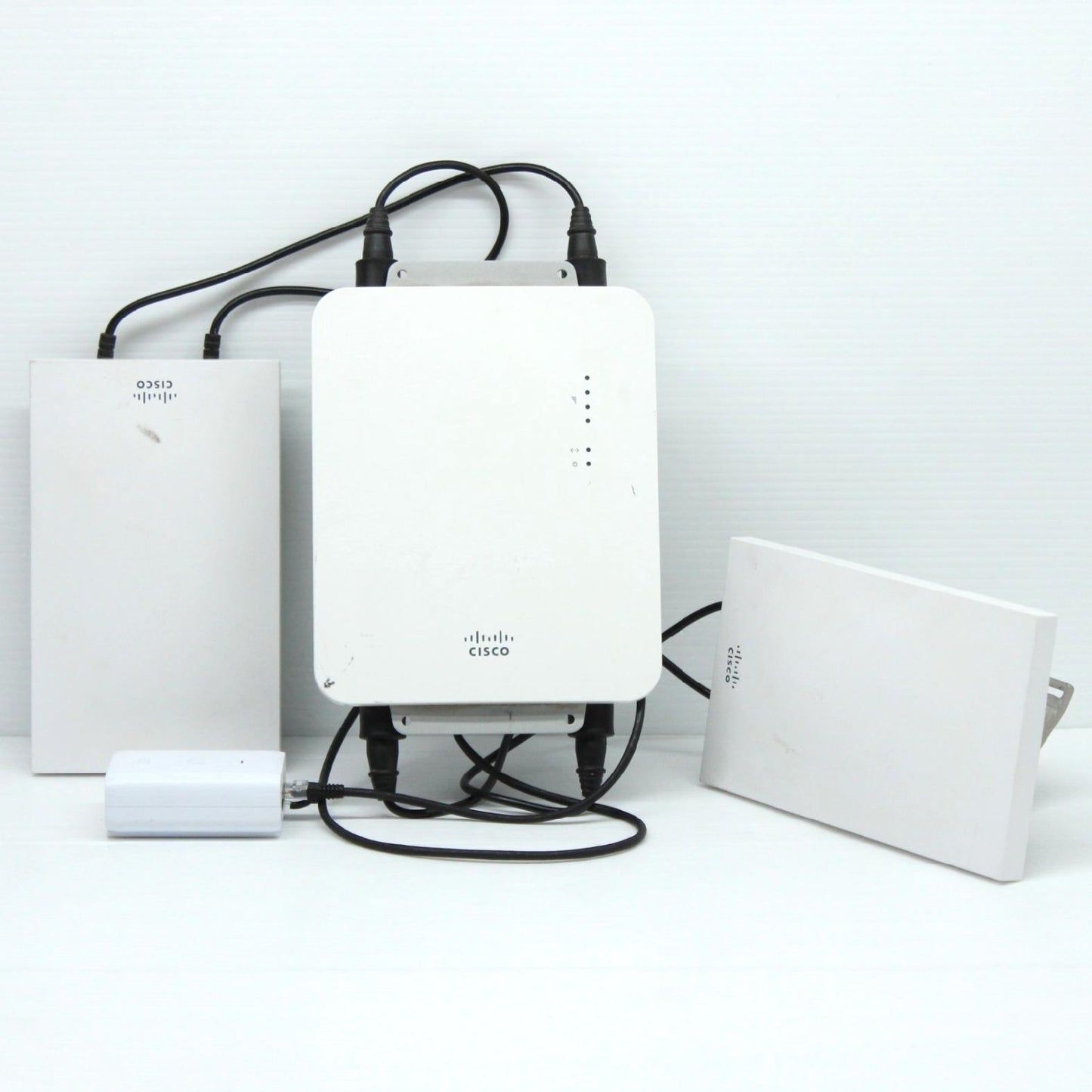

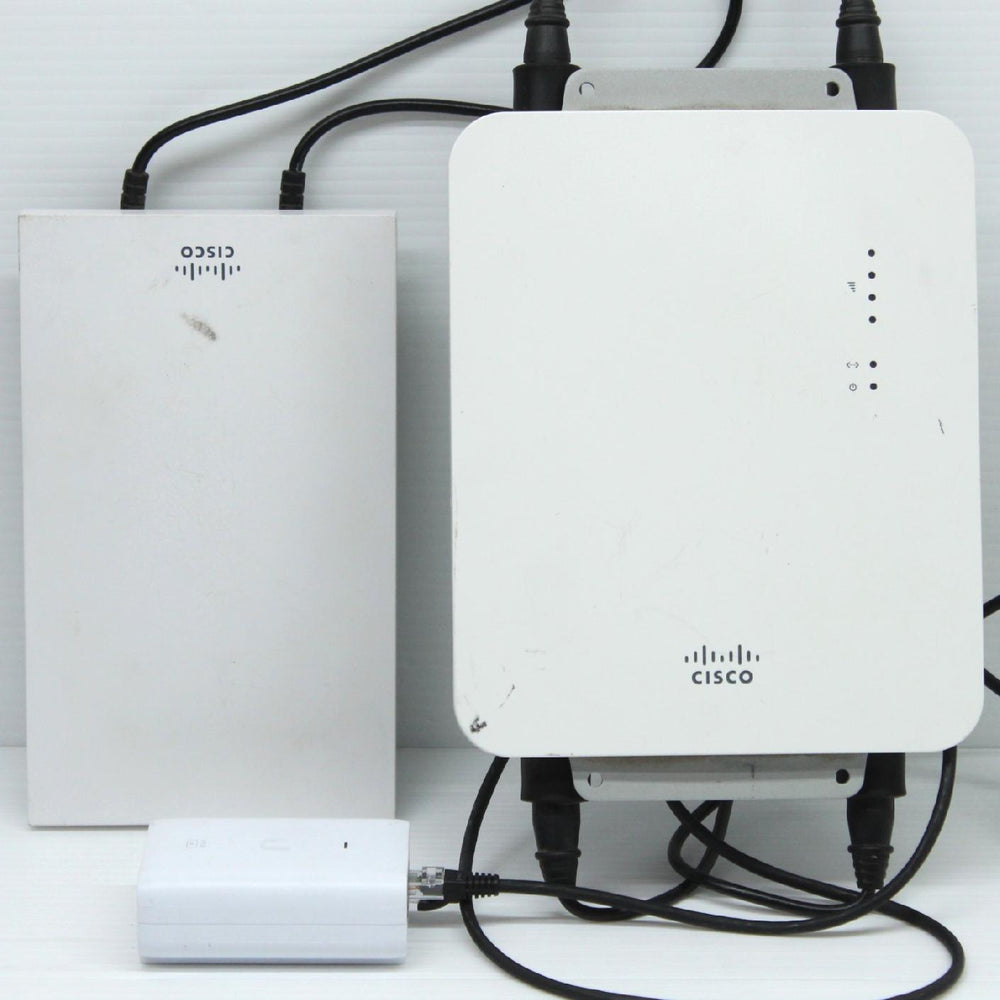

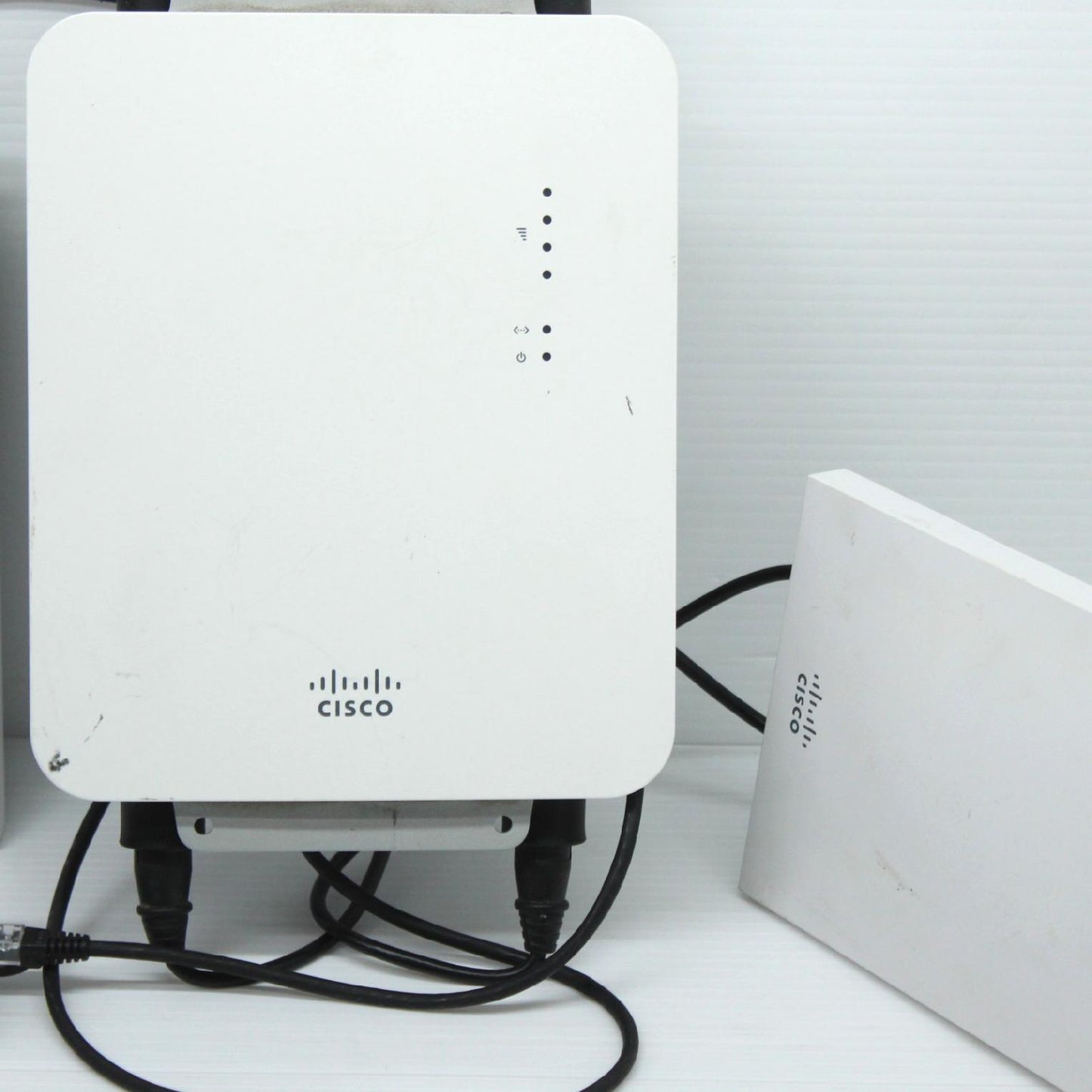

Cisco Meraki MR66 Dual-Radio Outdoor Cloud Managed PoE Access Point 2x MA-ANT-21

Hardware features

• IP67 rated, tested for dust, shock, vibration, and moisture
• Dual-radio 802.11n, up to 600 Mbps
• Gigabit Ethernet port, 802.3af PoE compatible

  Cloud management

  • Network-wide visibility and control
  • Self-provisioning for rapid deployment
  • Automatic reporting
  • Seamless firmware updates

    Enterprise security

    • 802.1X and native Active Directory integration
    • Intrusion detection and prevention (WIDS/WIPS)
    • Stateful Layer 3-7 firewall
    • Identity-based group policies
    • Built-in antivirus scan (NAC)

      Guest access

      • 1-click secure guest access
      • Guest isolation firewall
      • Customizable splash pages
        RF optimization

        • Cloud based RF planning
        • Built in spectrum analysis
        • Dual-concurrent radios with band steering

          Layer 7 traffic shaping

          • Classifies hundreds of applications
          • Create per-application bandwidth limits
          • Prioritize productivity apps
          • Restrict recreational traffic

            Mesh

            • Self-configuring, self-optimizing mesh
            • High performance multi-radio routing protocols
            • Extends coverage to hard-to-wire areas
            • Self-heals after cable or switch failures

              Device management

              • Create device-specific firewall rules
              • Deploy applications and updates
              • Troubleshoot issues with built-in RDP



                MR66Specifications
                Radio	1 x 802.11b/g/n radio, 1 x 802.11a/n radio Auto-selection of optimal 2.4 GHz or 5 GHz band Max radio rate of 300 Mbps per radio 2.4 GHz +26 dBm peak transmission power 5 GHz +24 dBm peak transmission power
                Interfaces	One 100/1000 Mbps auto-crossover Ethernet port Four external N-type connectors Signal strength LEDs
                802.11n Capabilities	2 x 2 multiple input, multiple output (MIMO) with two spatial streams Maximal ratio combining (MRC) Beamforming Packet aggregation Cyclic shift diversity (CSD) support
                Power	Power over Ethernet: 24 - 57 V (802.3af compatible) Power consumption: 10.5 W max Power over Ethernet injector sold separately

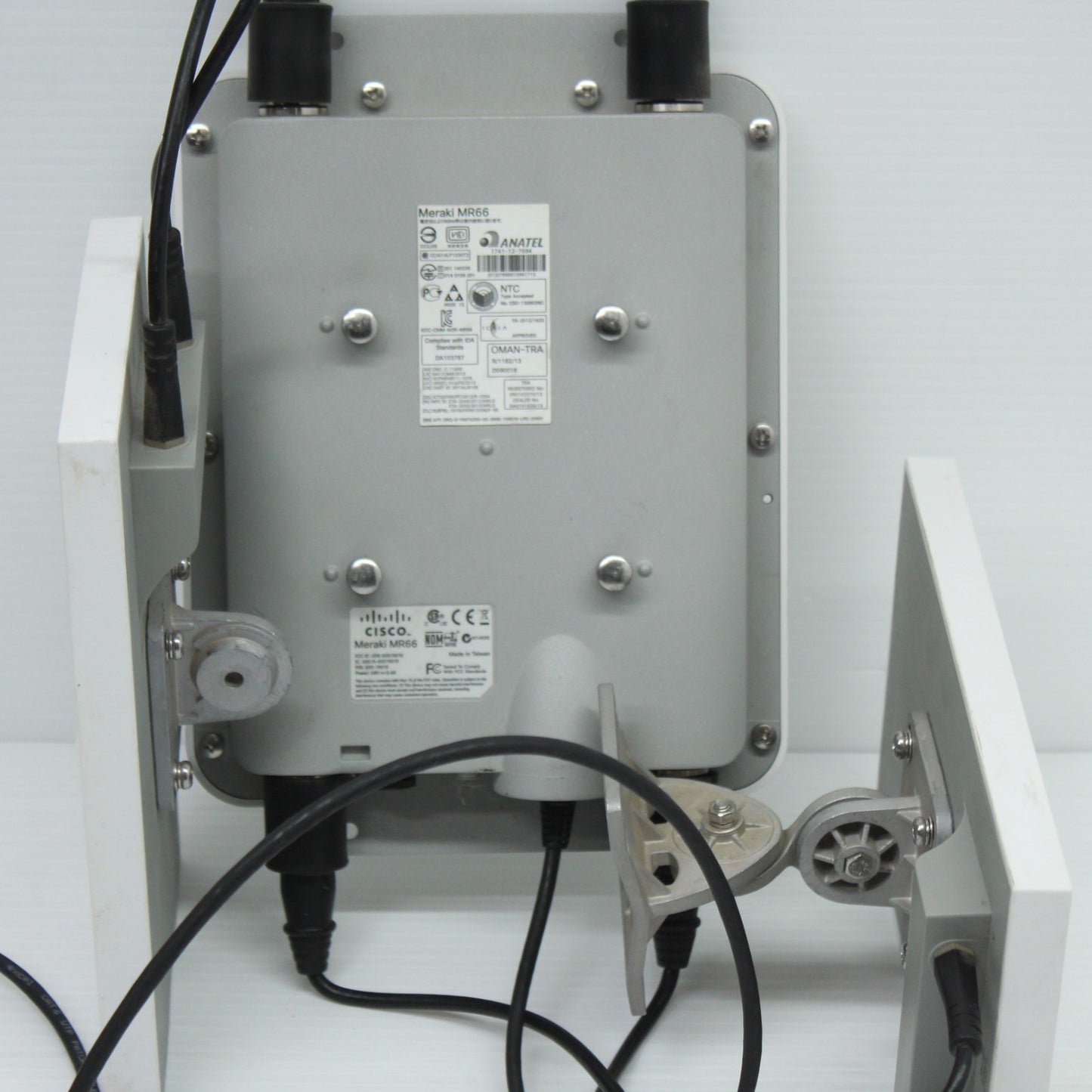

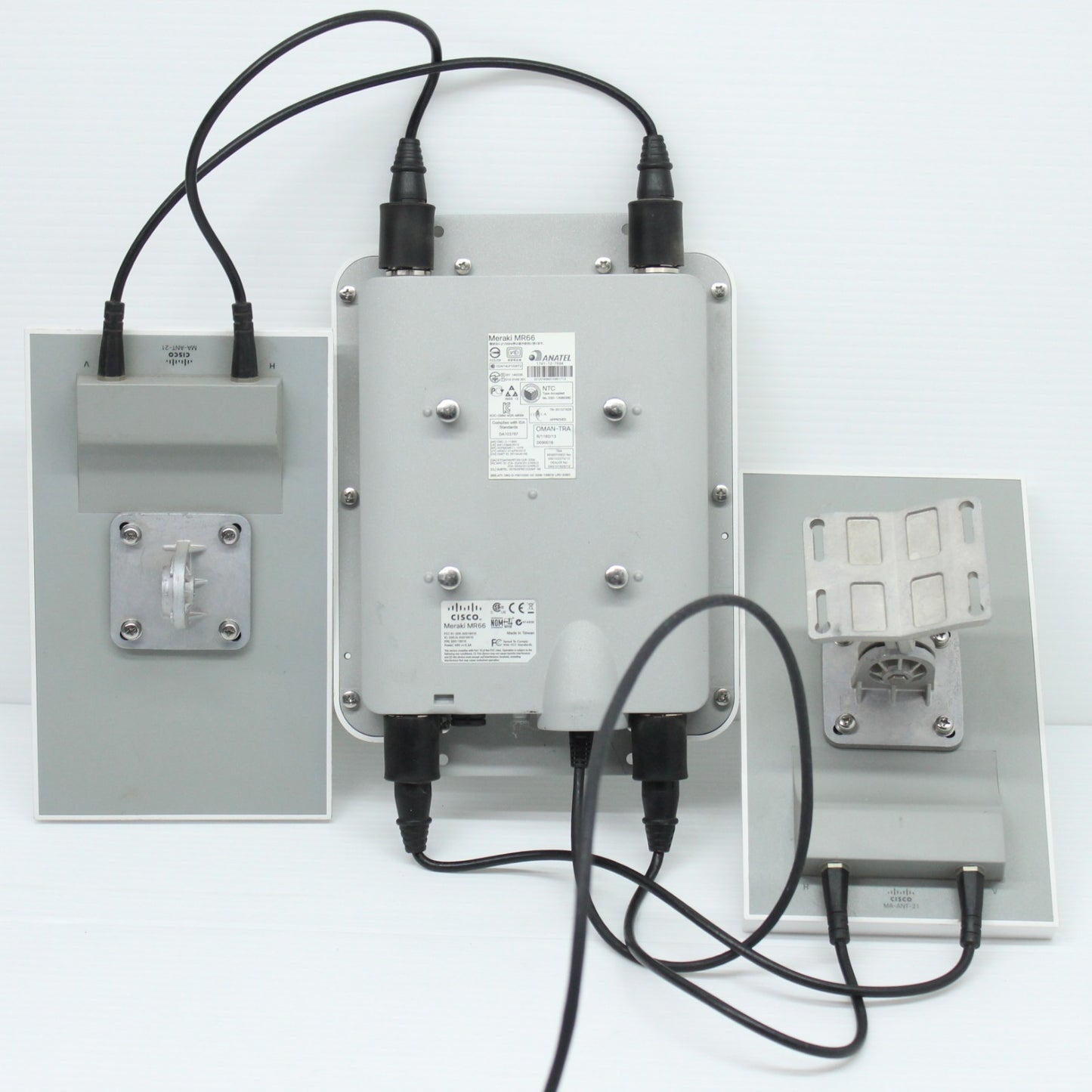

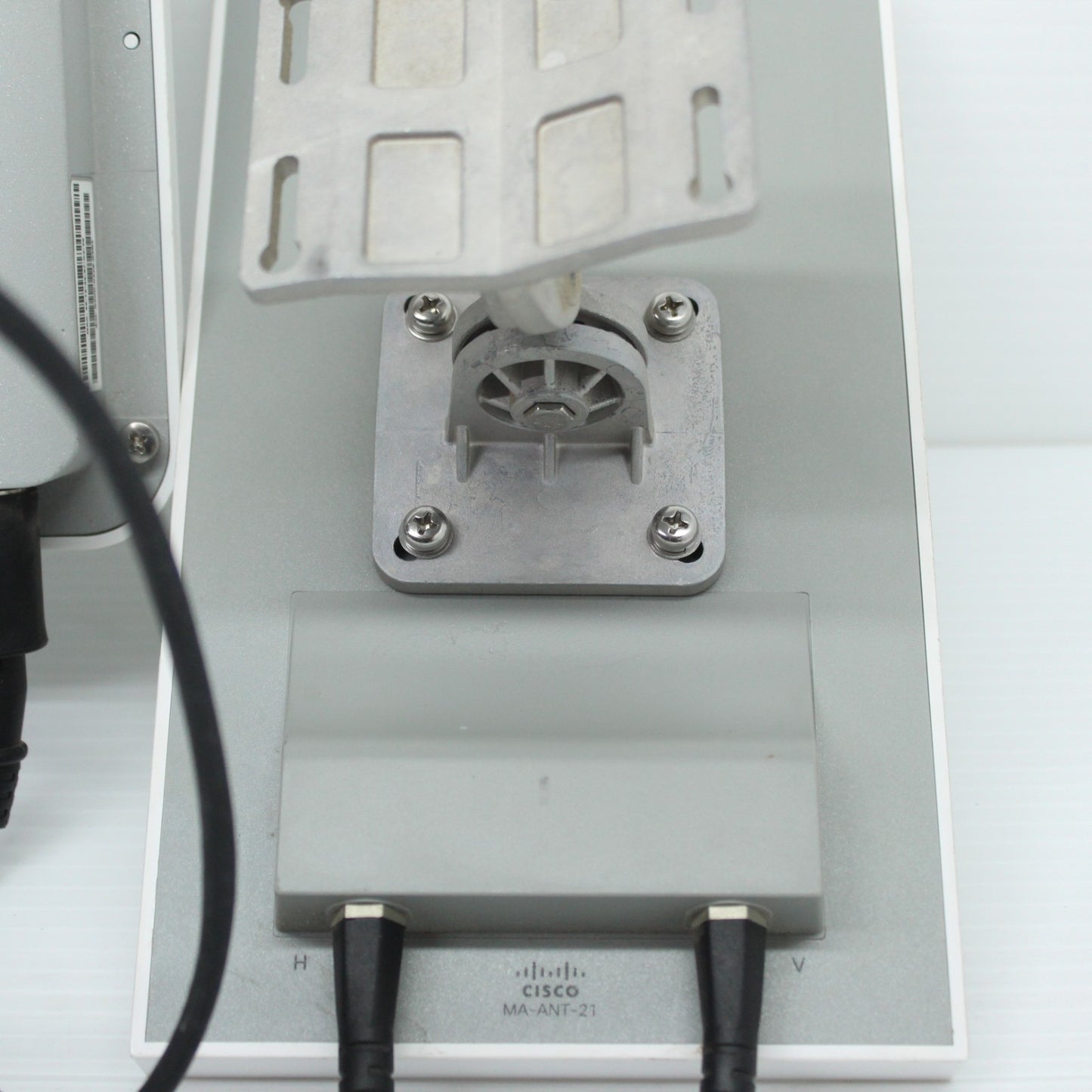

                Mounting	Mounts to walls and horizontal, vertical, and angled poles Mounting hardware included
                Physical Security	Security screw included Kensington lock hard point Anti-tamper cable bay Concealed mount plate
                Environment	Operating temperature: -4°F to 122°F (-20°C to 50°C) IP67 environmental rating (sealed against water and dust)
                Physical Dimensions	10.5" x 7.6" x 2.2" (267 mm x 192 mm x 57 mm) not including mount
                Weight	1.9 lb (862 g)
                Antenna	Integrated omni-directional antennas Gain: 3 dBi
                Security	Integrated policy firewall (Identity Policy Manager) Air Marshal: real-time WIPS with forensics Guest Isolation WEP, WPA WPA2-PSK WPA2-Enterprise with 802.1X TKIP and AES encryption VLAN tagging (802.1Q)
                Quality of Service	Wireless Quality of Service (WMM/802.11e) DSCP (802.1p)
                Mobility	PMK and OKC credential support for fast Layer 2 roaming 802.11r and 802.11k L3 roaming
                LED Indicators	4 signal strength 1 Ethernet connectivity 1 power/booting/firmware upgrade status SPECIFICATIONS:
