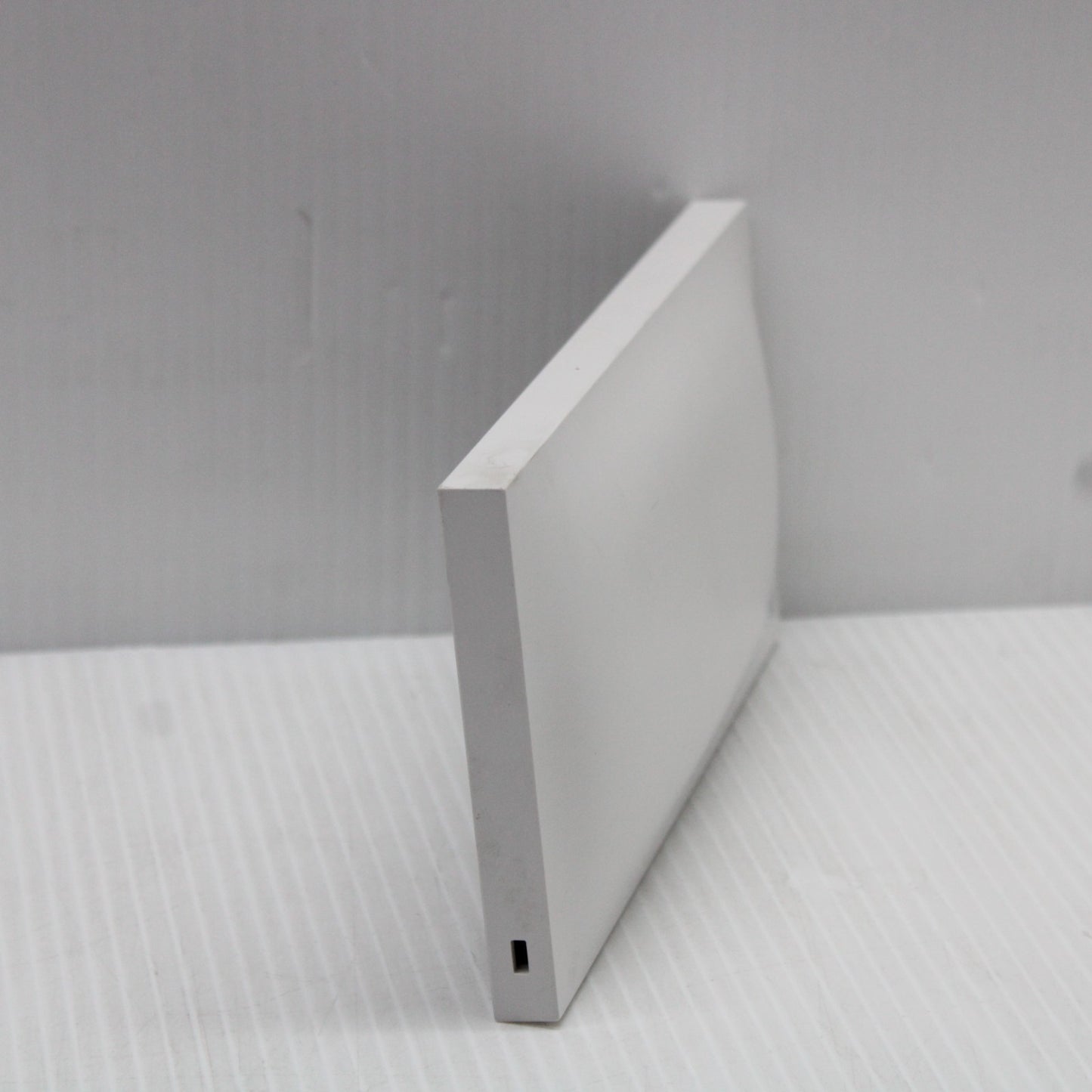

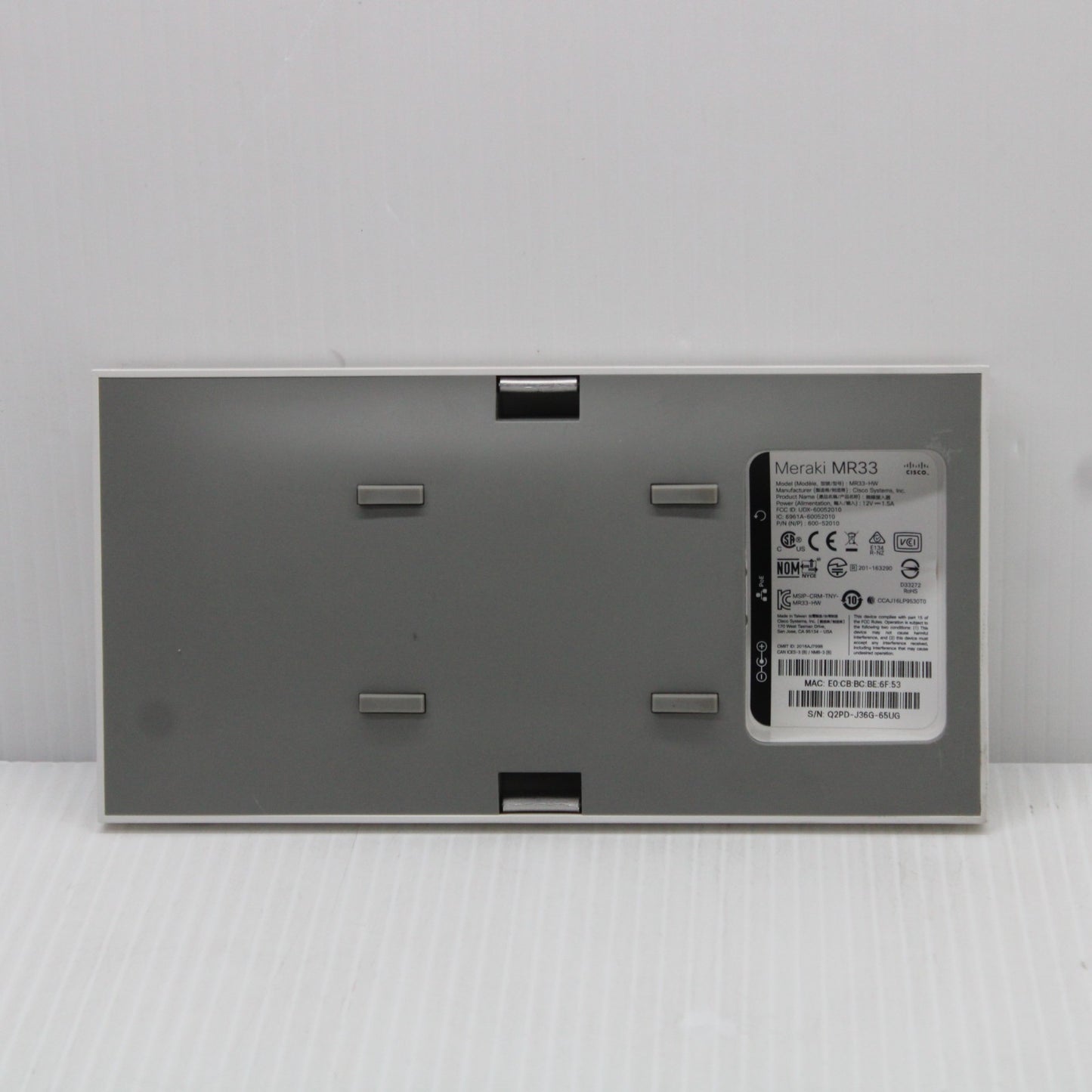

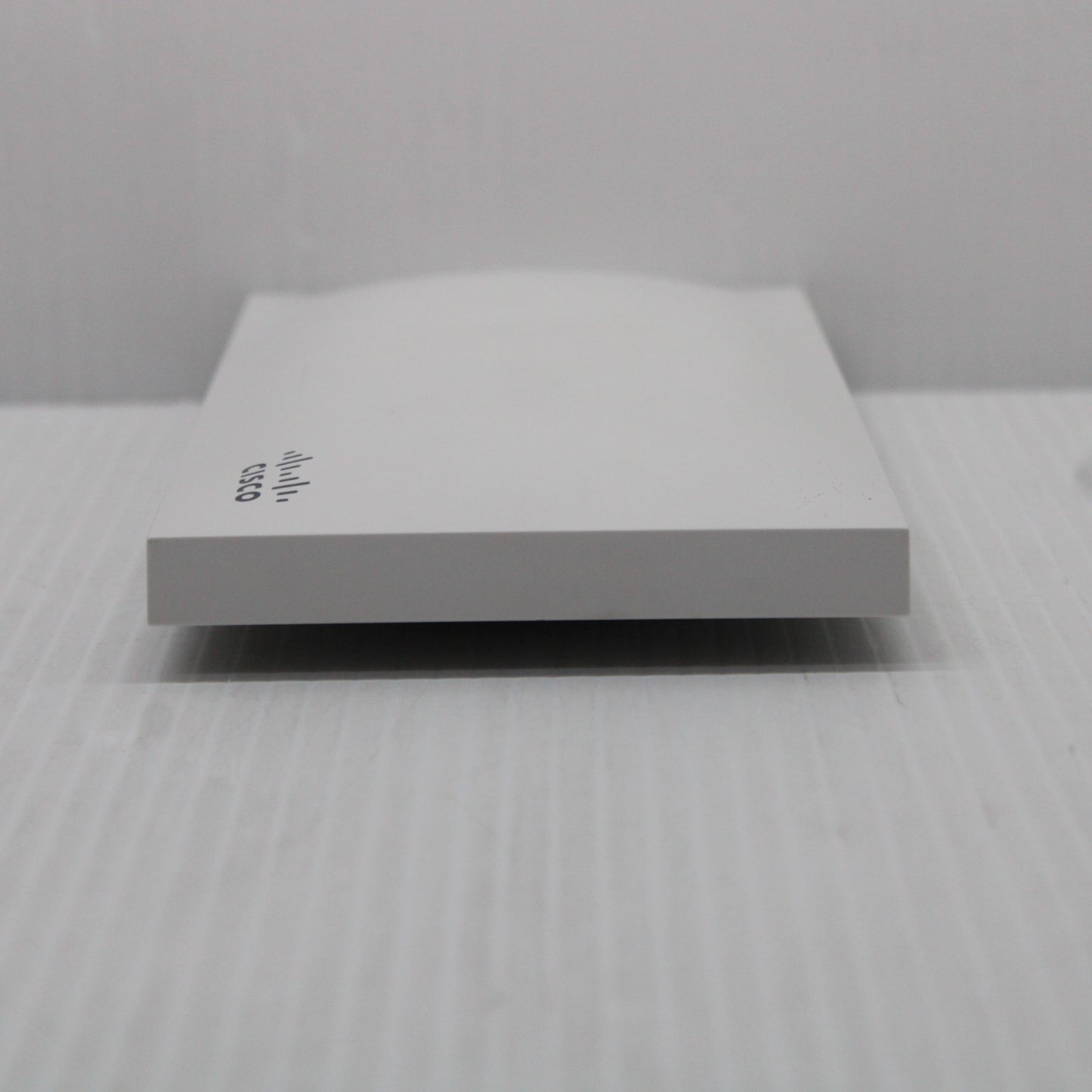

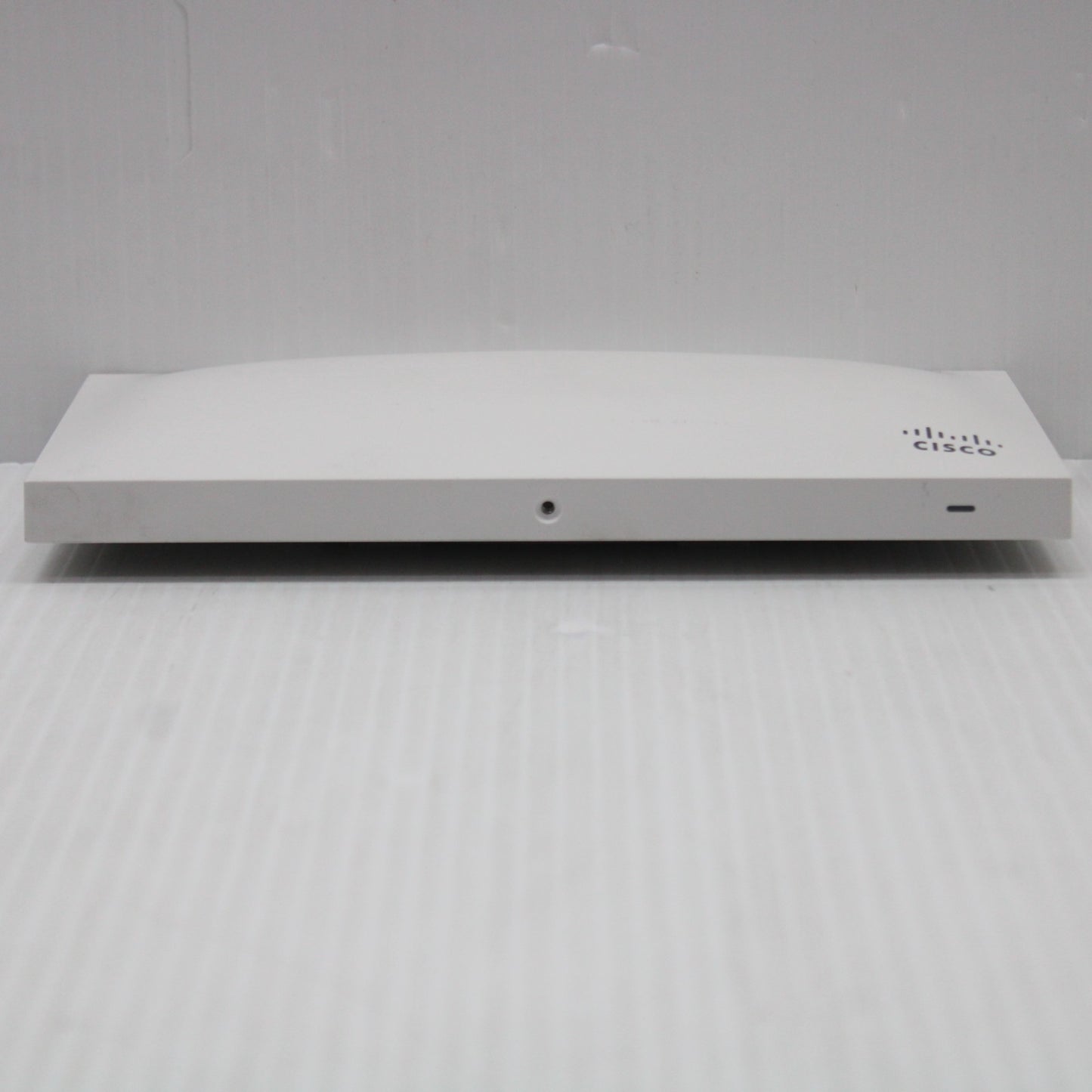

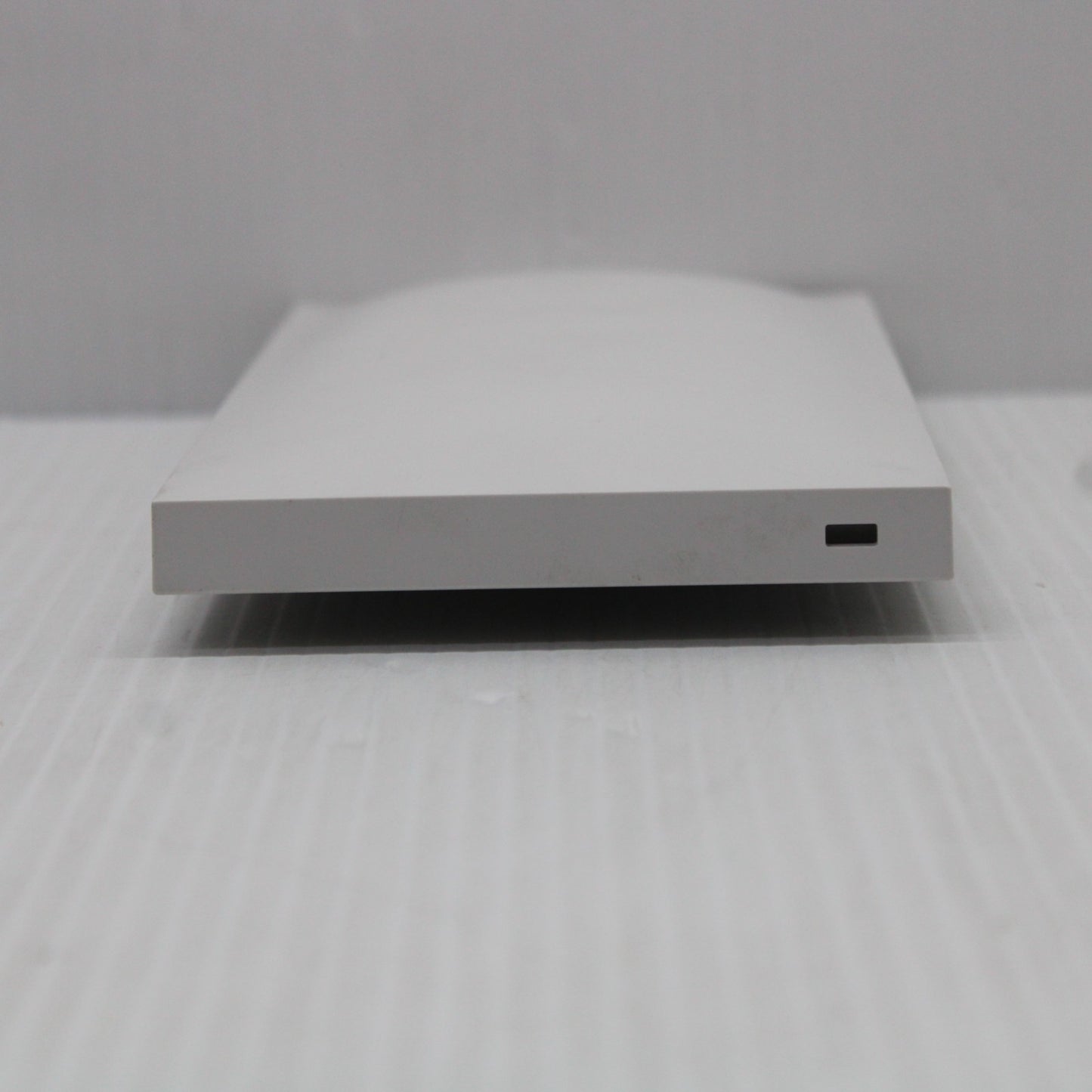

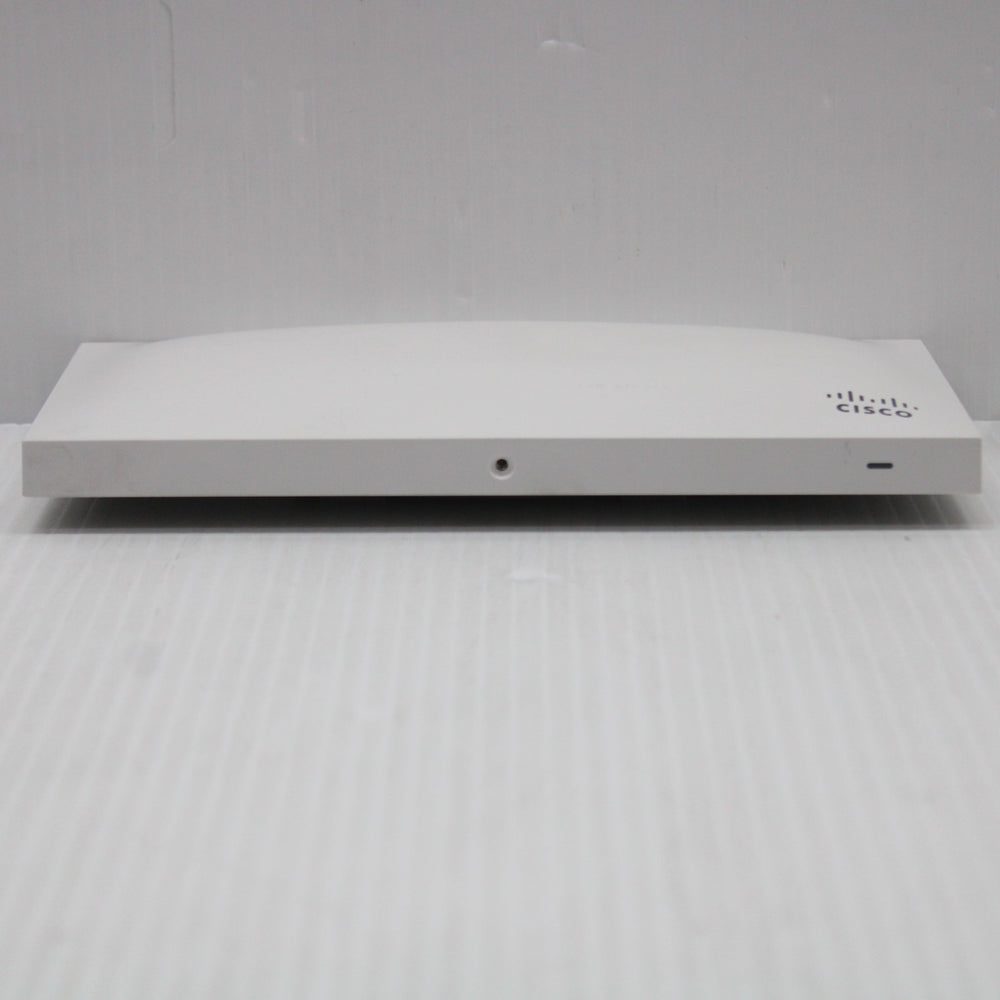

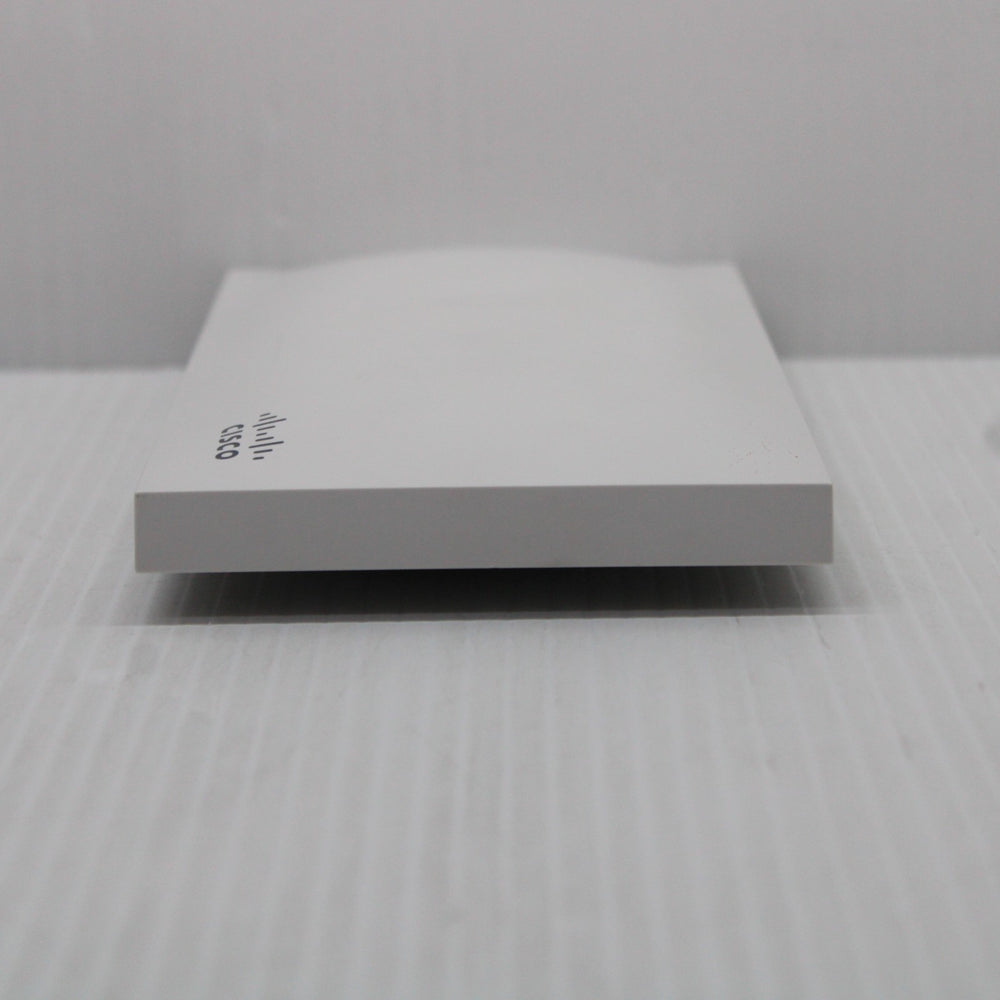

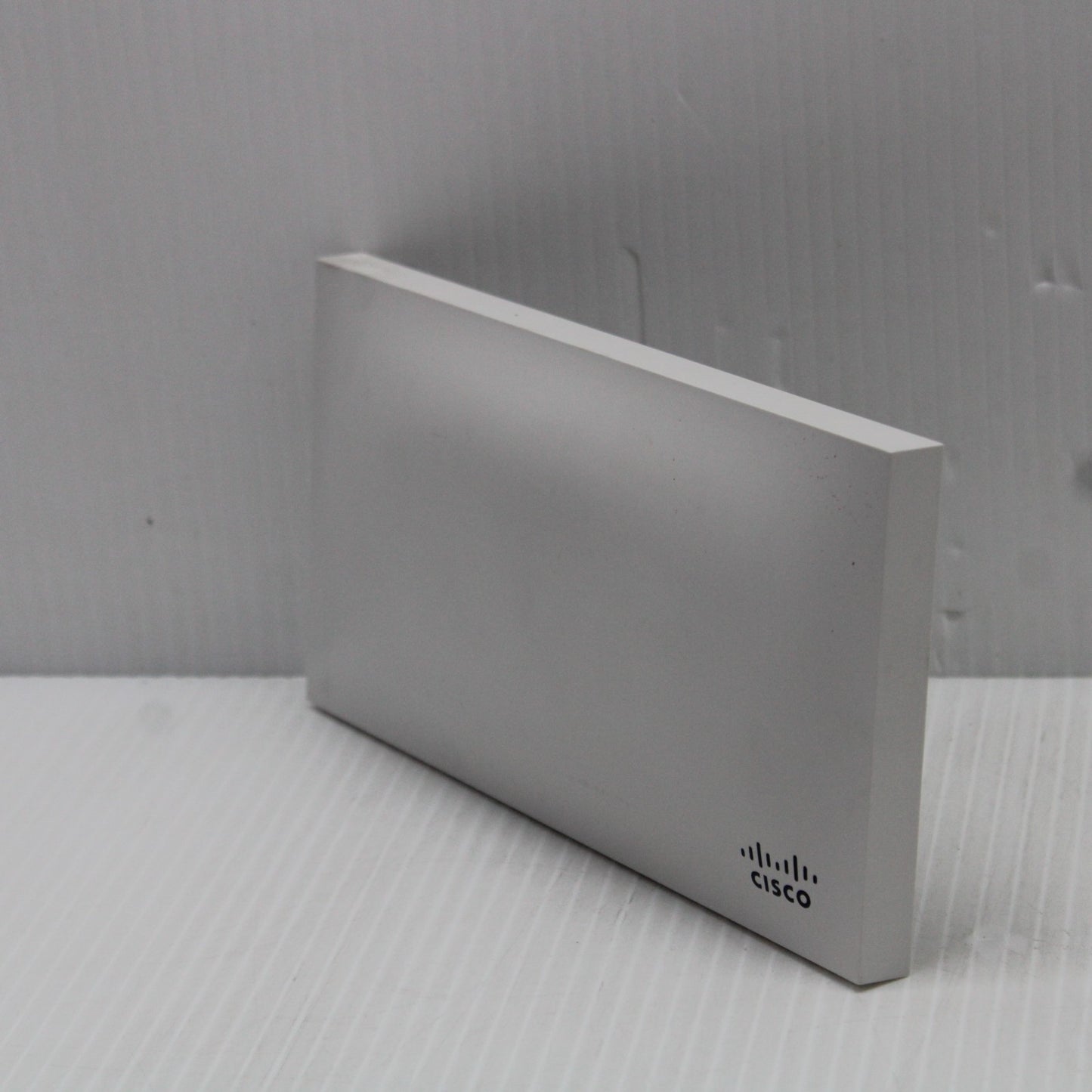

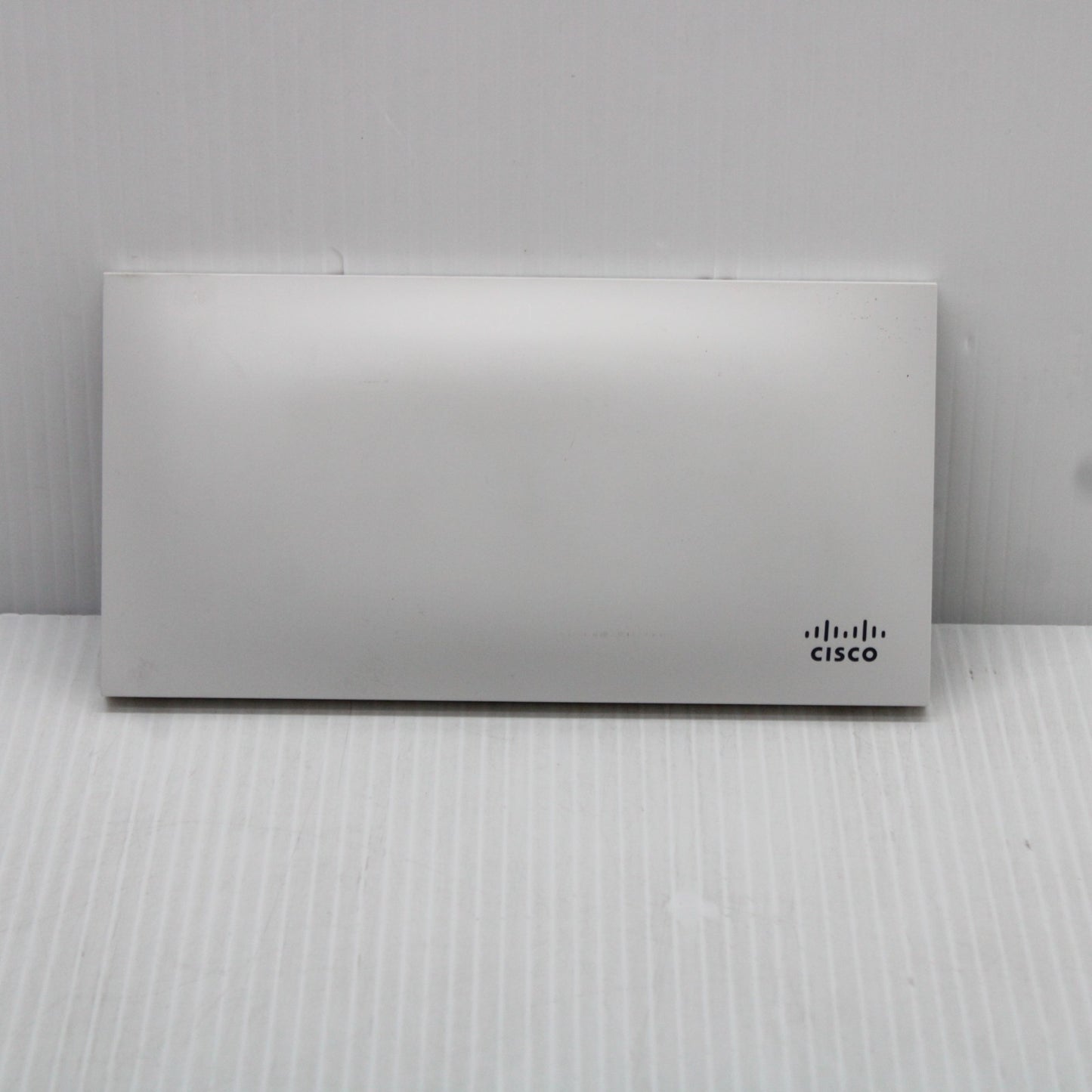

Cisco Meraki MR33 Dual Band Cloud Managed PoE Wireless Access Point Unclaimed

Radios

• 2.4 GHz 802.11b/g/n/ac client access radio
• 5 GHz 802.11a/n/ac client access radio
• 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
• 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and BLE scanning support
• Concurrent operations of all four radios

  Operating Bands

  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.250-5.350 GHZ (UNII-2)
  • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
  • 5.725 -5.825 GHz (UNII-3)

    802.11ac & 802.11n Capabilities

    • 2×2 multiple input, multiple output (MIMO) with two spatial streams
    • Maximal ratio combining (MRC)
    • Beamforming
    • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
    • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
    • Packet aggregation

      Power

      • Power over Ethernet: 37 – 57 V (802.3af compatible)
      • Alternative 12 V DC input
      • Power consumption: 11W max (802.3af)
      • Power over Ethernet injector and DC adapter sold separately

        Physical Security

        • Two security screw options (included)
        • Kensington lock hard point
        • Concealed mount plate with anti-tamper cable bay

          Environment

          • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
          • Humidity: 5 to 95% non-condensing

            Physical Dimensions

            • 8.5” x 4.3” x 1.3” (215 mm x 110 mm x 32 mm), not including deskmount feet or mount plate
            • Weight: 13.2 oz (376.5 g)

              Antenna

              • Integrated omni-directional antennas (3.8 dBi gain at 2.4 GHz, 3.9 dBi gain at 5 GHz)

                Interfaces

                • 1 × 10/100/1000 BASE-T Ethernet (RJ45)
                • 1 × DC power connector (5.5 mm x 2.5 mm, center positive)

                  Security

                  • Integrated layer 7 firewall with mobile device policy management
                  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
                  • Flexible guest access with device isolation
                  • VLAN tagging (802.1Q) and tunneling with IPSec VPN
                  • PCI compliance reporting
                  • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
                  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
                  • TKIP and AES encryption
                  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

                    Quality of Service

                    • Advanced Power Save (U-APSD)
                    • WMM Access Categories with DSCP and 802.1p support
                    • Layer 7 application traffic identification and shaping

                      Mobility

                      • PMK, OKC, and 802.11r for fast Layer 2 roaming
                      • Distributed or centralized layer 3 roaming

                        LED Indicators

                        • 4x 2 Ethernet status for Ethernet ports
                        • 1 power/booting/firmware upgrade status SPECIFICATIONS:
