Cisco Meraki MG21 Cellular Gateway MG21 HW WW Integrated Antennas

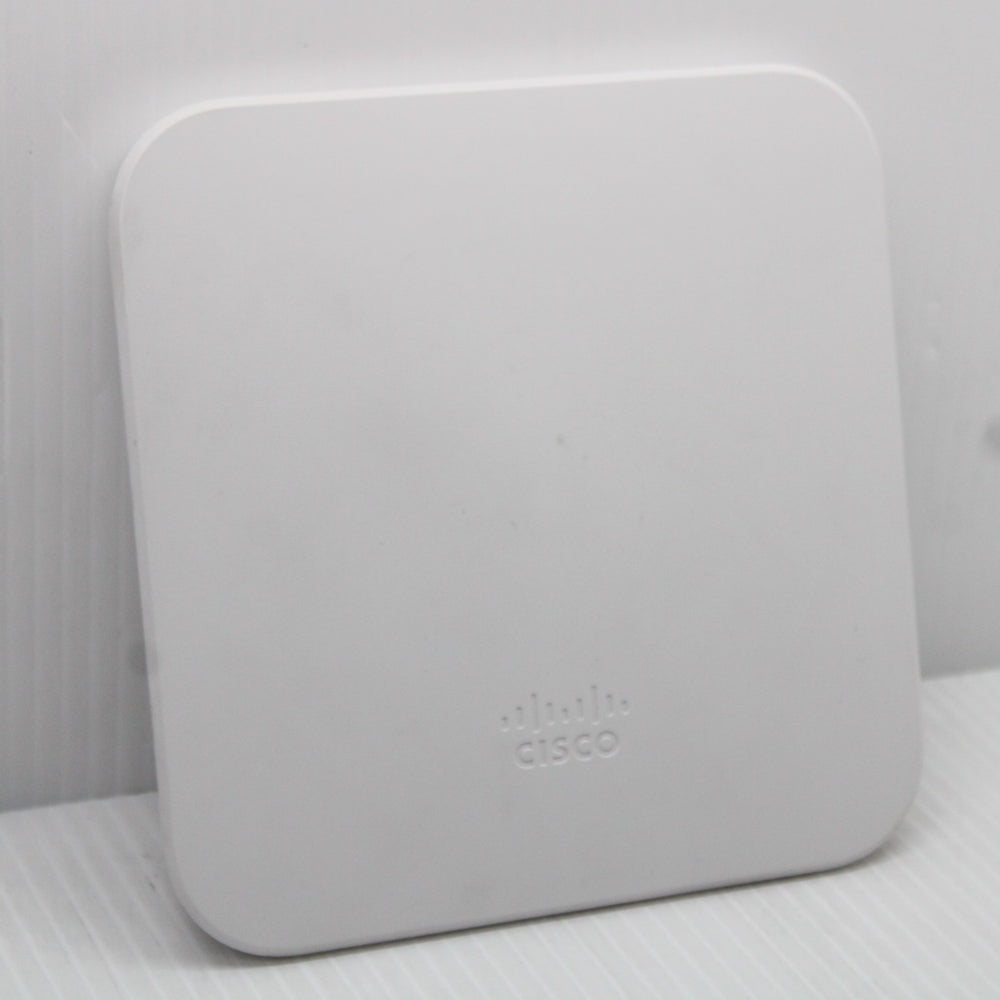

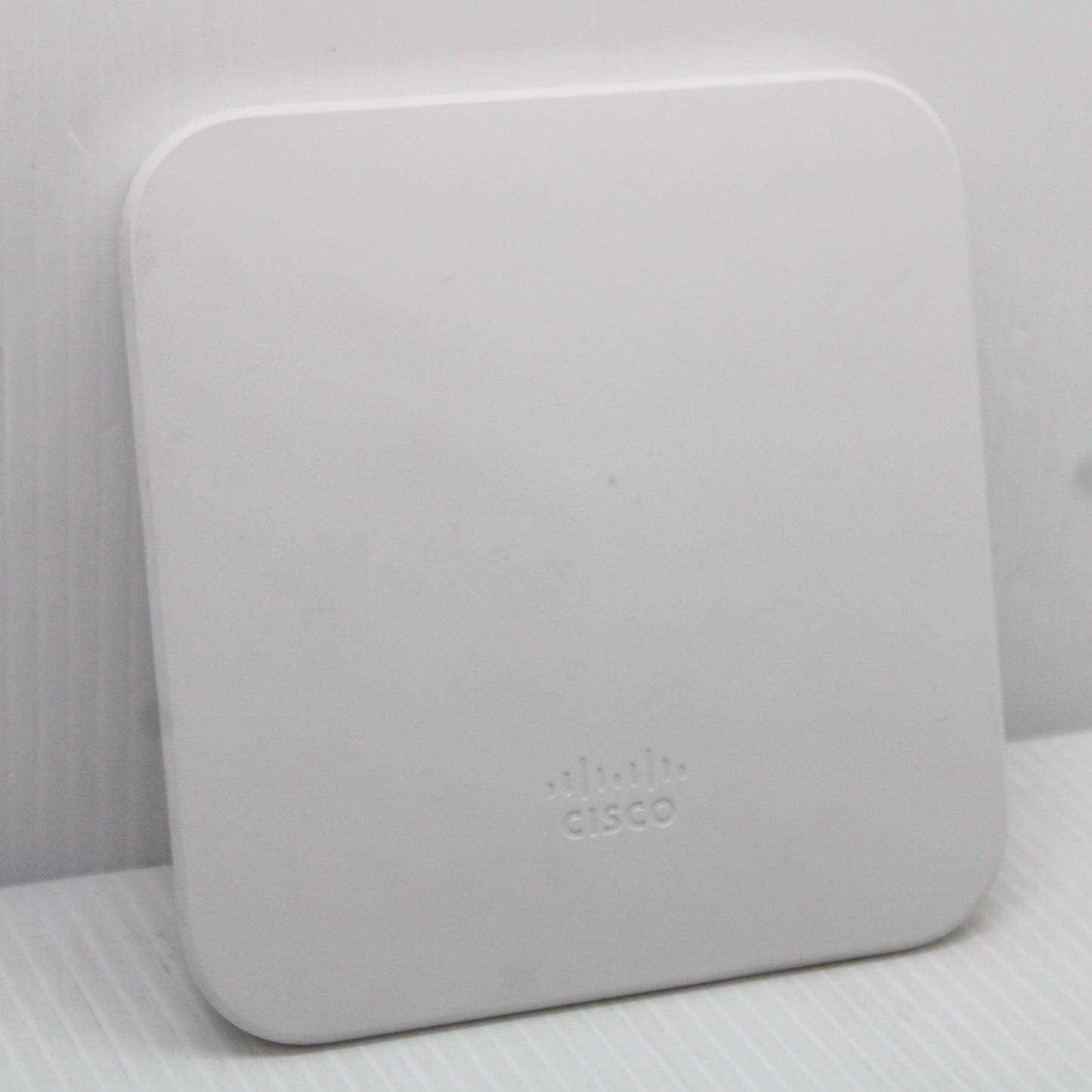

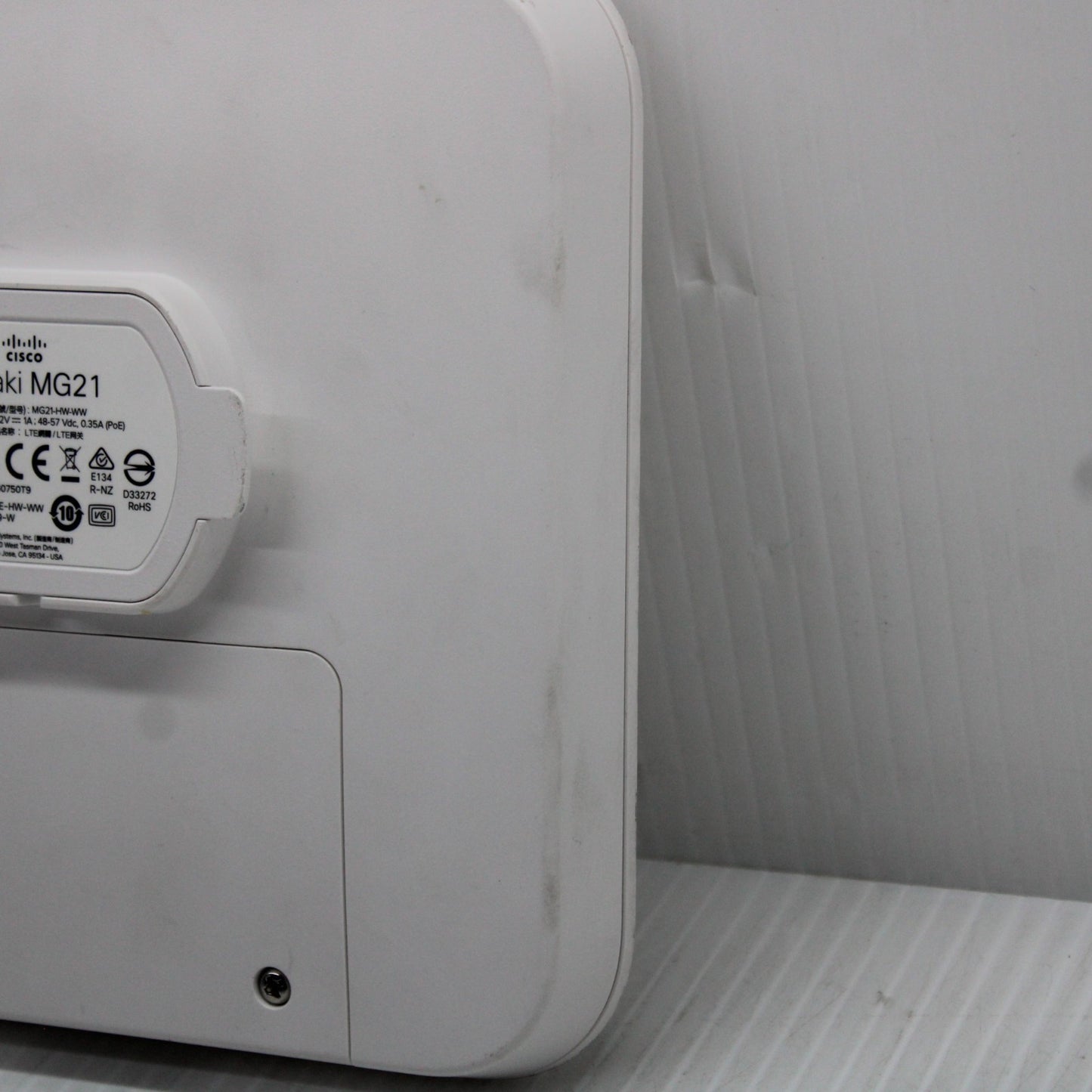

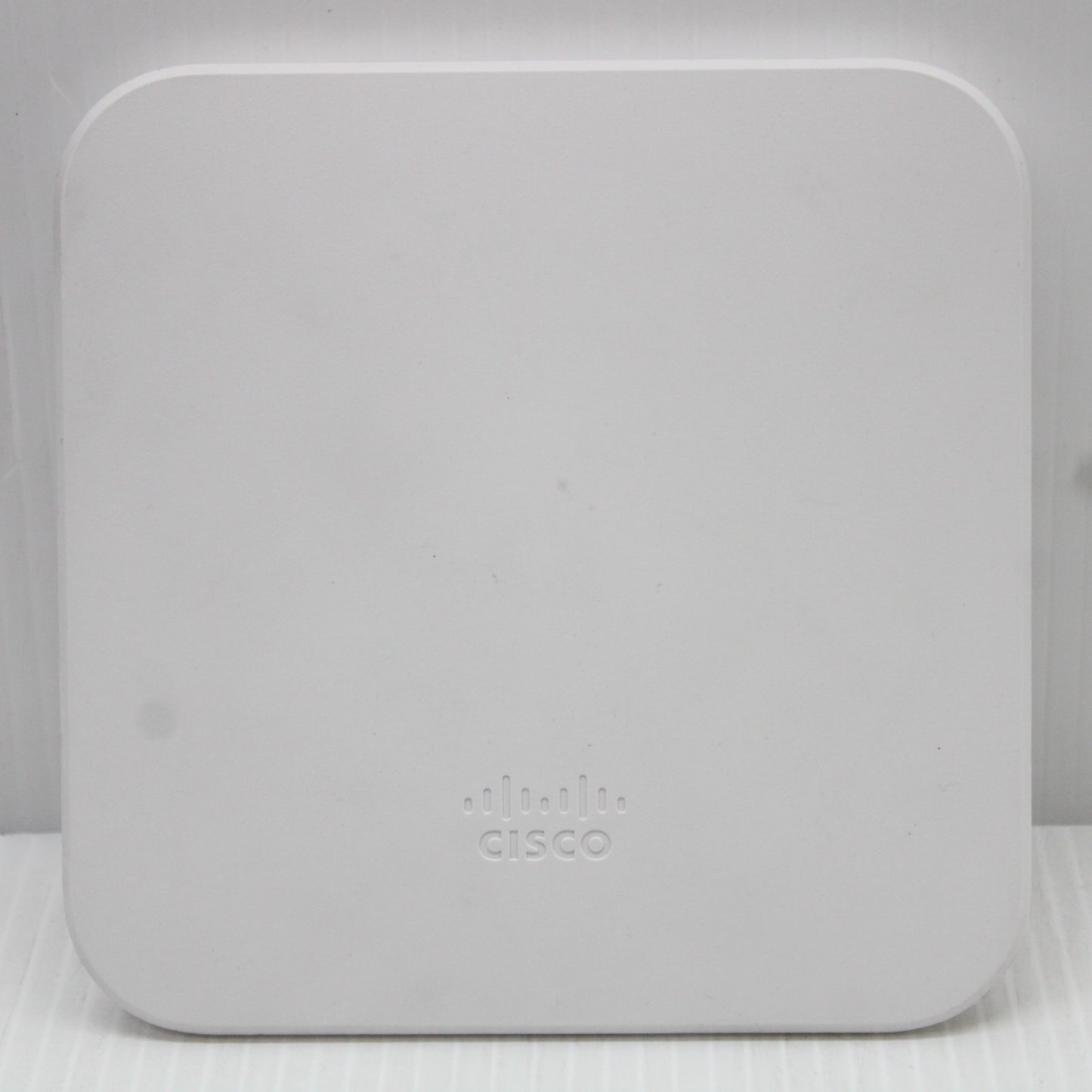

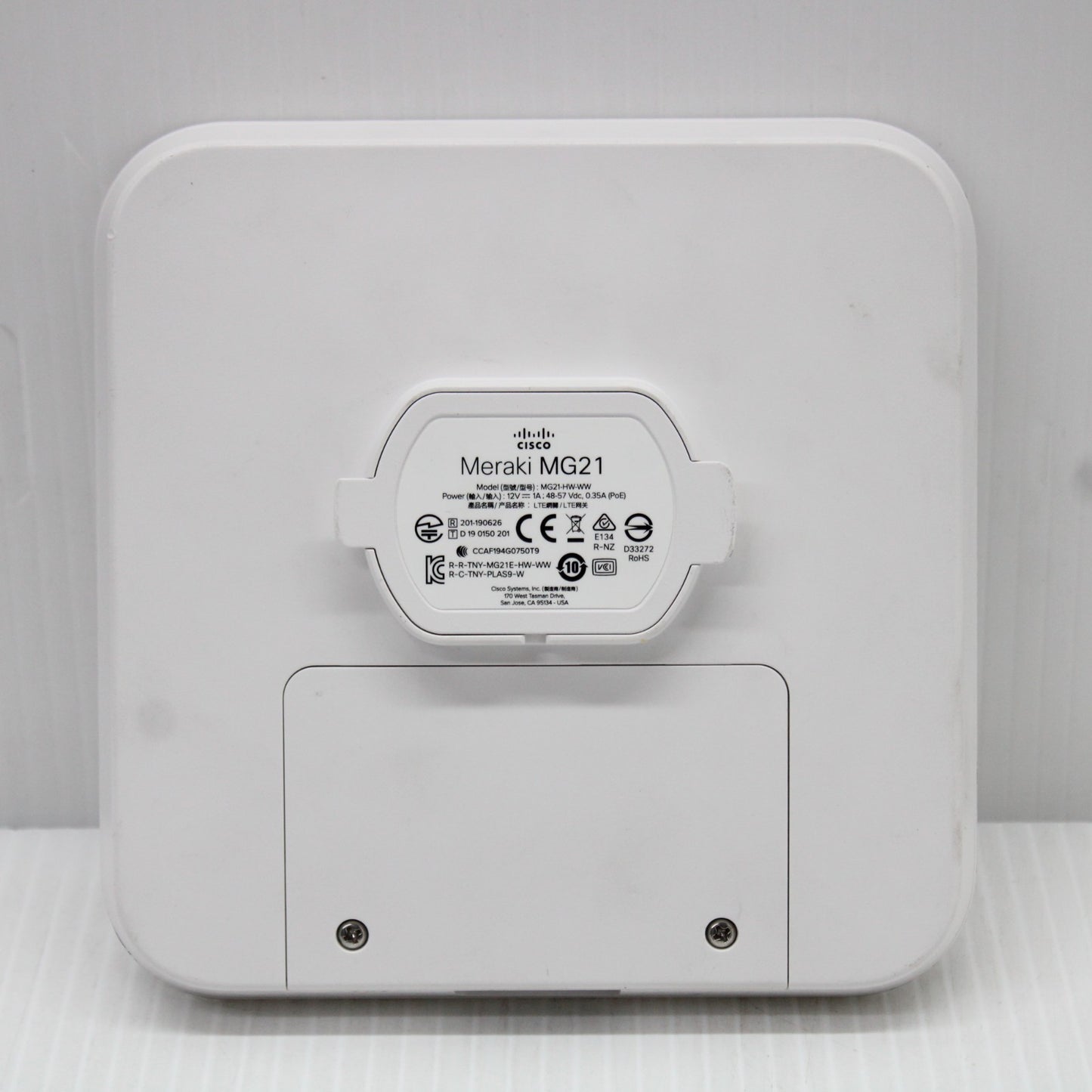

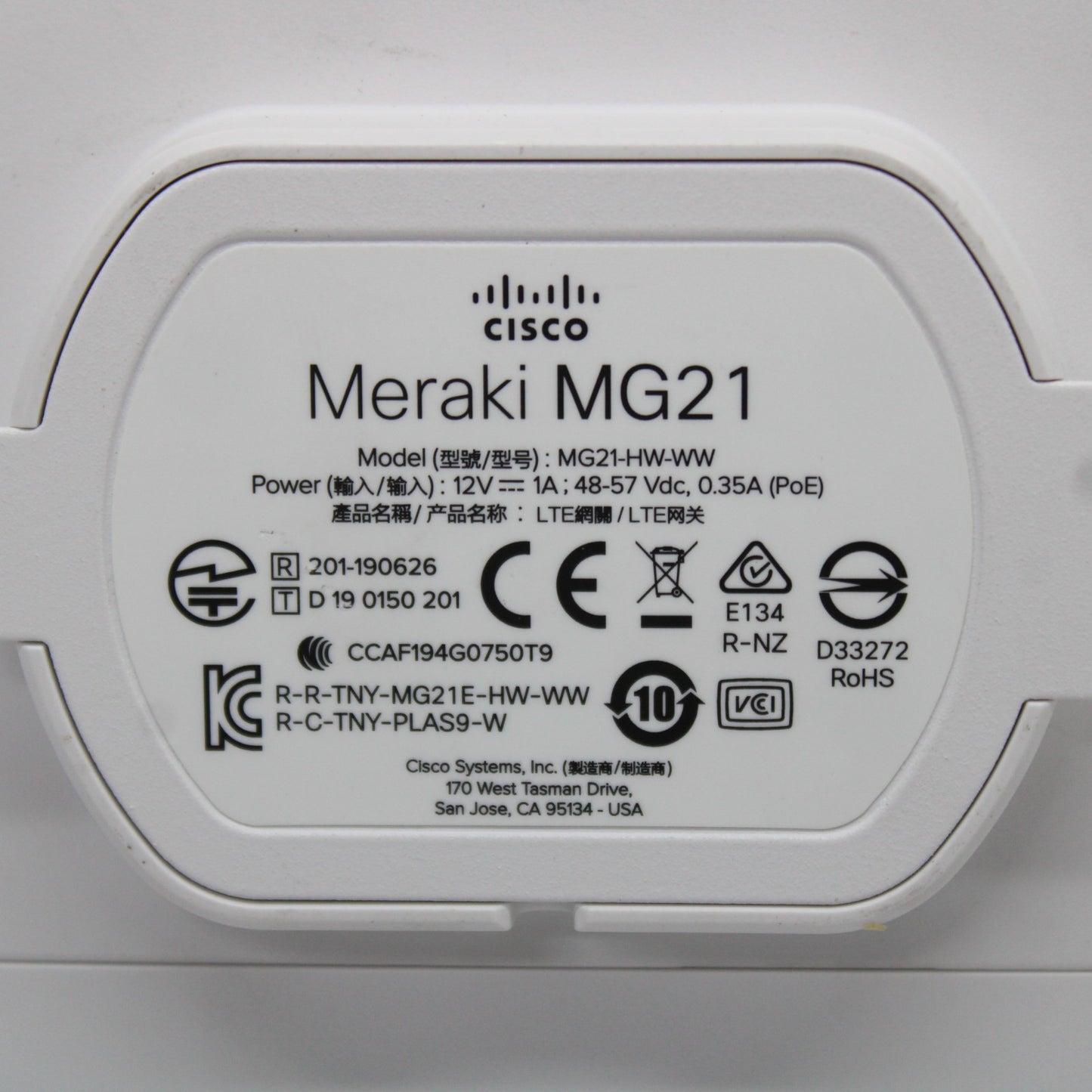

Cisco Meraki MG21 Cellular Gateway
Model Cisco Meraki MG21 Function Cellular gateway for LTE WAN uplink Cellular Modem Integrated CAT 6 LTE modem Max Throughput Up to 300 Mbps WAN Interface Converts LTE signal to Ethernet handoff LAN Ports 2 x Gigabit Ethernet PoE Support 1 x 802.3af PoE input port Power Options 12V/1A DC or 48–57V DC/0.35A via PoE Management Cisco Meraki Dashboard (cloud-managed) Deployment Plug-and-play, self-configuring Diagnostics Remote packet capture, ping, traceroute, cable test, link failure alerts Alerts Email, SMS, and mobile push notifications Use Cases Primary WAN, failover WAN, SD-WAN uplink, HA topologies Antenna Support Internal antennas Antenna Gain 2.72 dBi Dimensions (WxDxH) 160.45 x 160.45 x 34.45 mm Weight ~487g Operating Temperature -20°C to 45°C Humidity 5% to 95% non-condensing Ingress Protection IP67 rated (dust and water resistant) SPECIFICATIONS:

Feature	Specification
