Sku:
9999-45873.63829

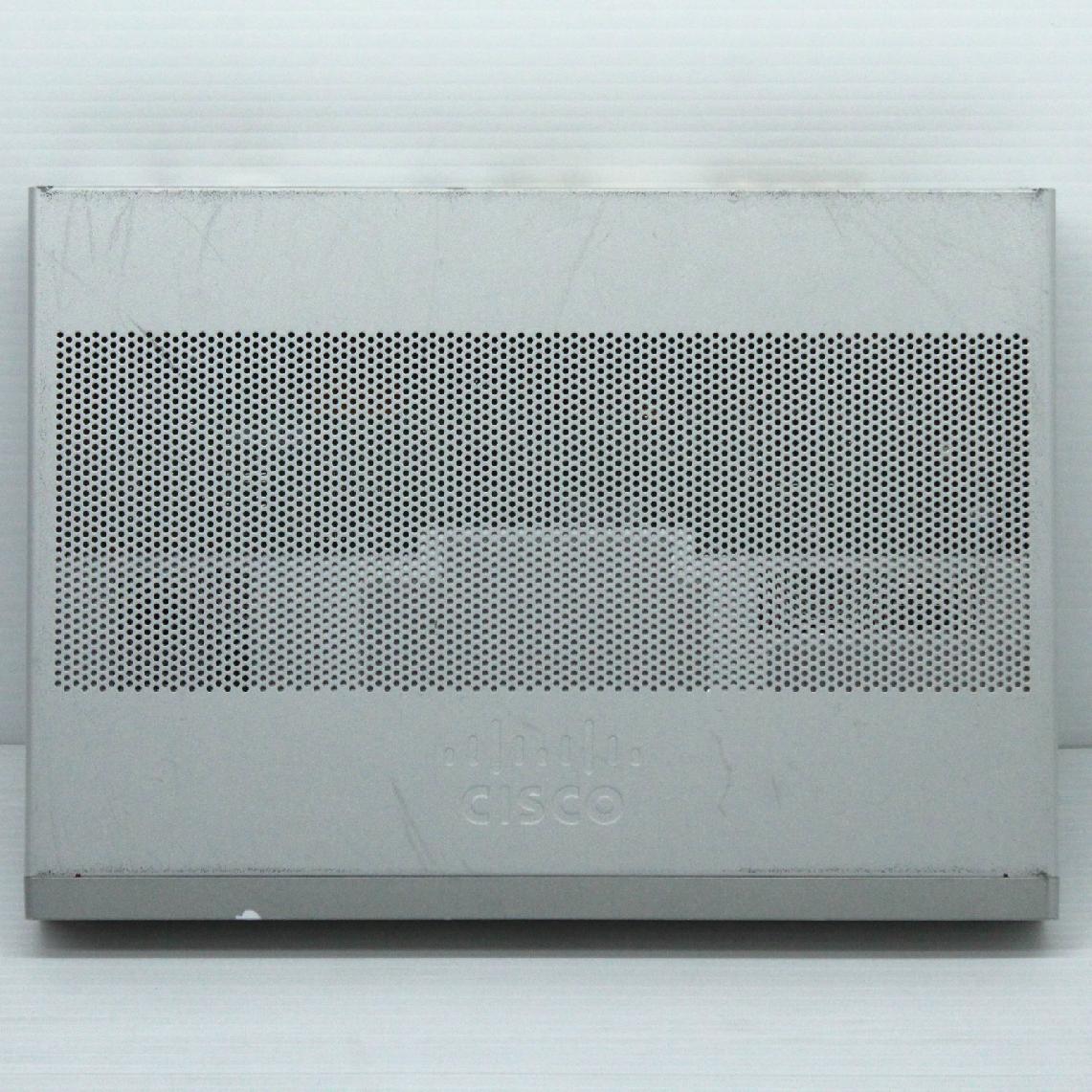

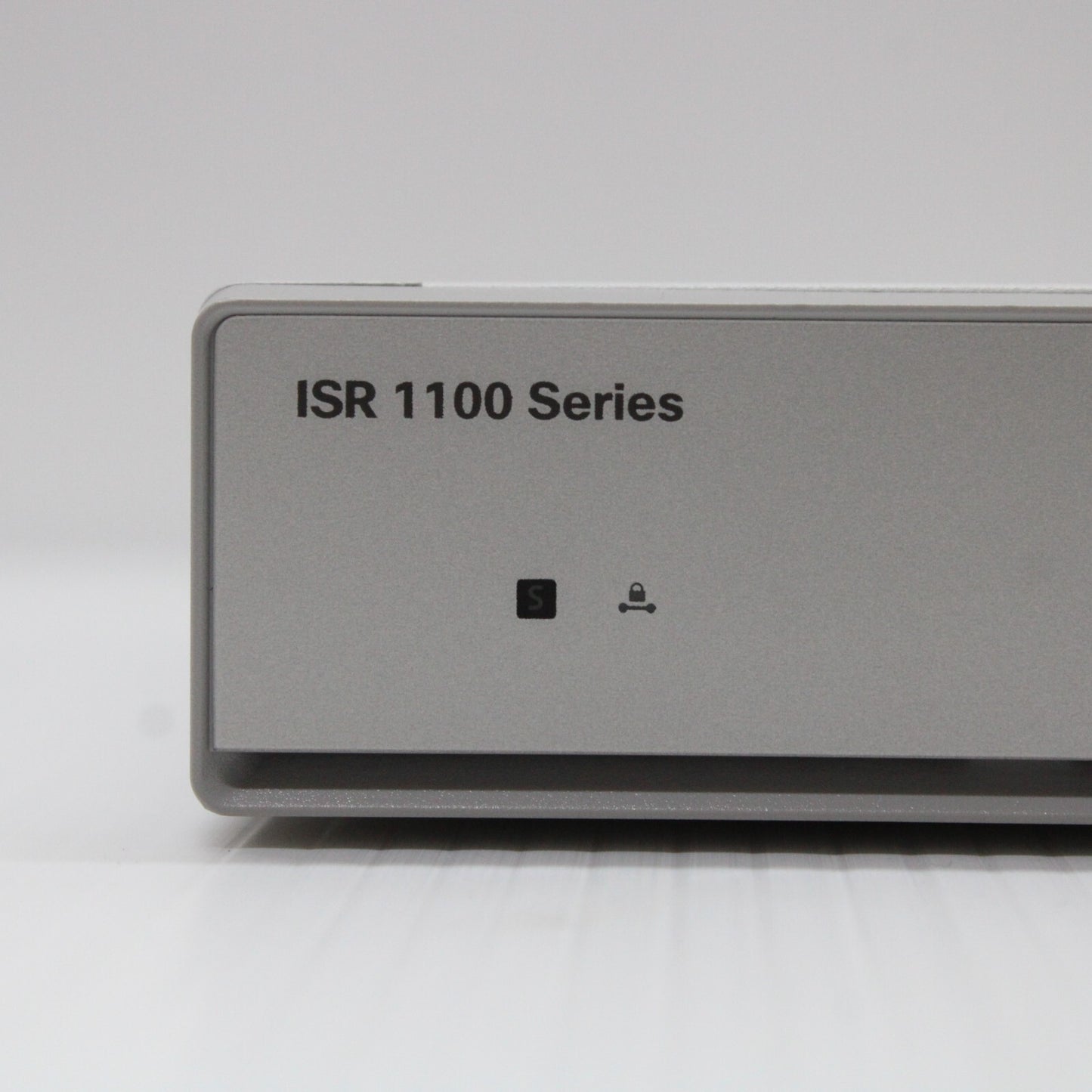

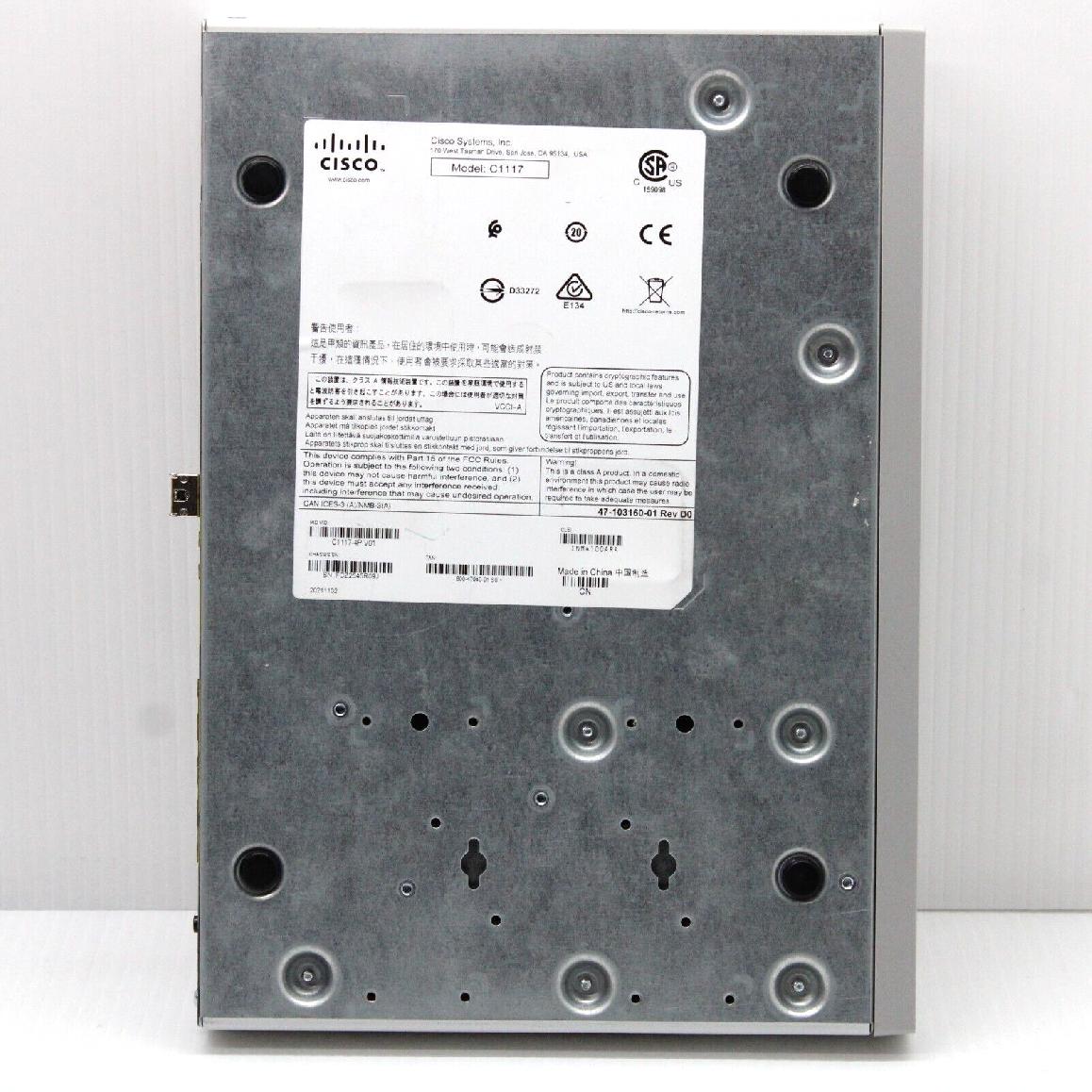

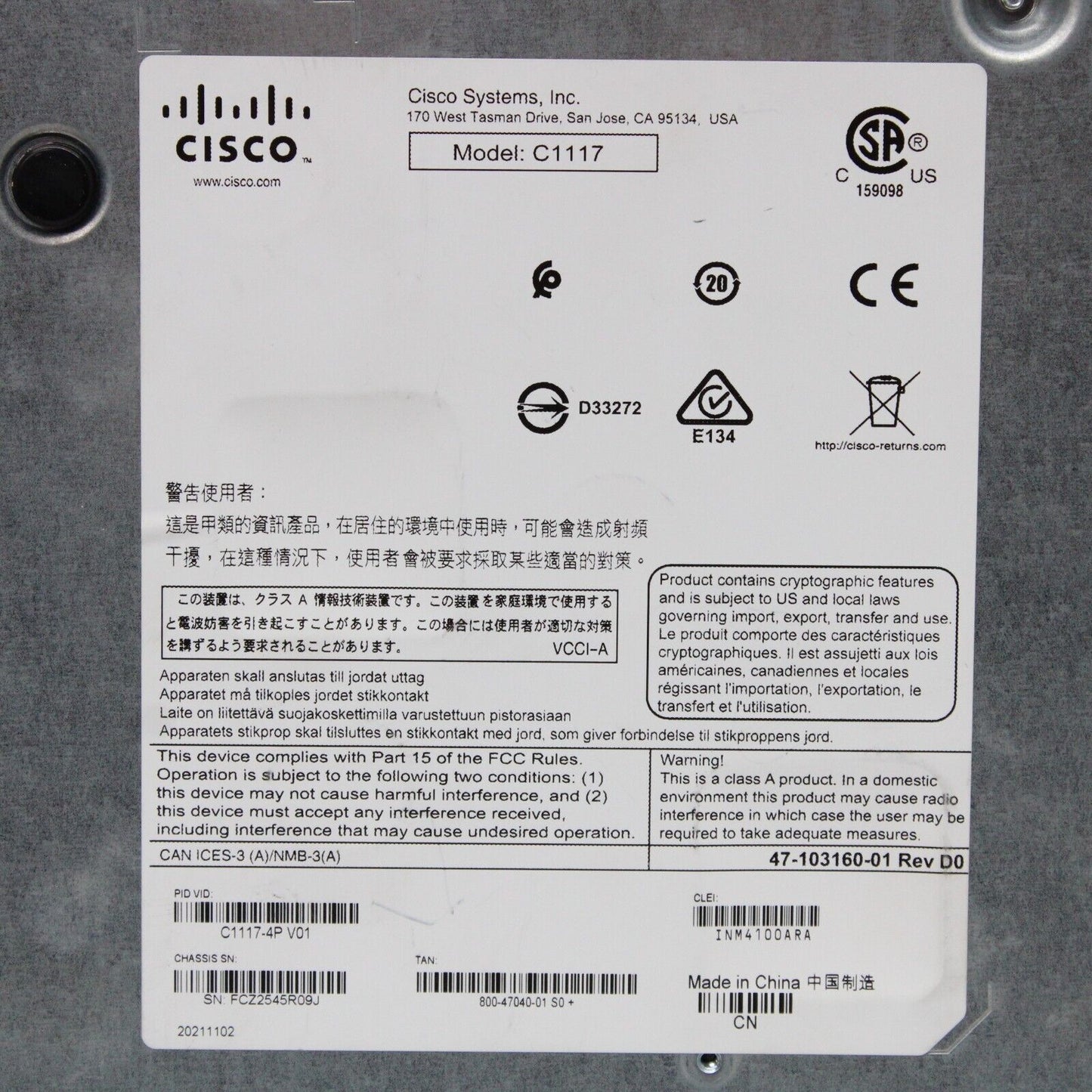

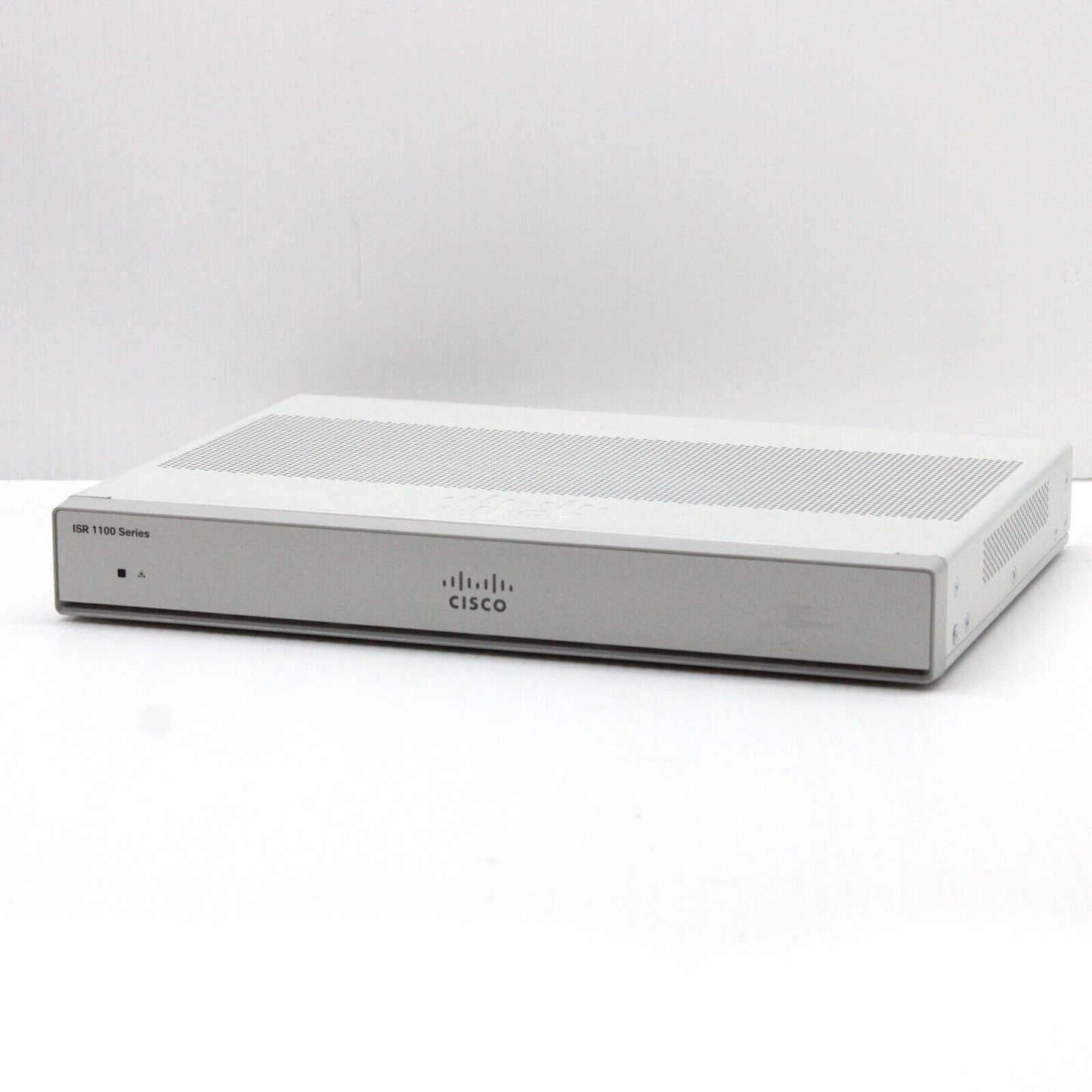

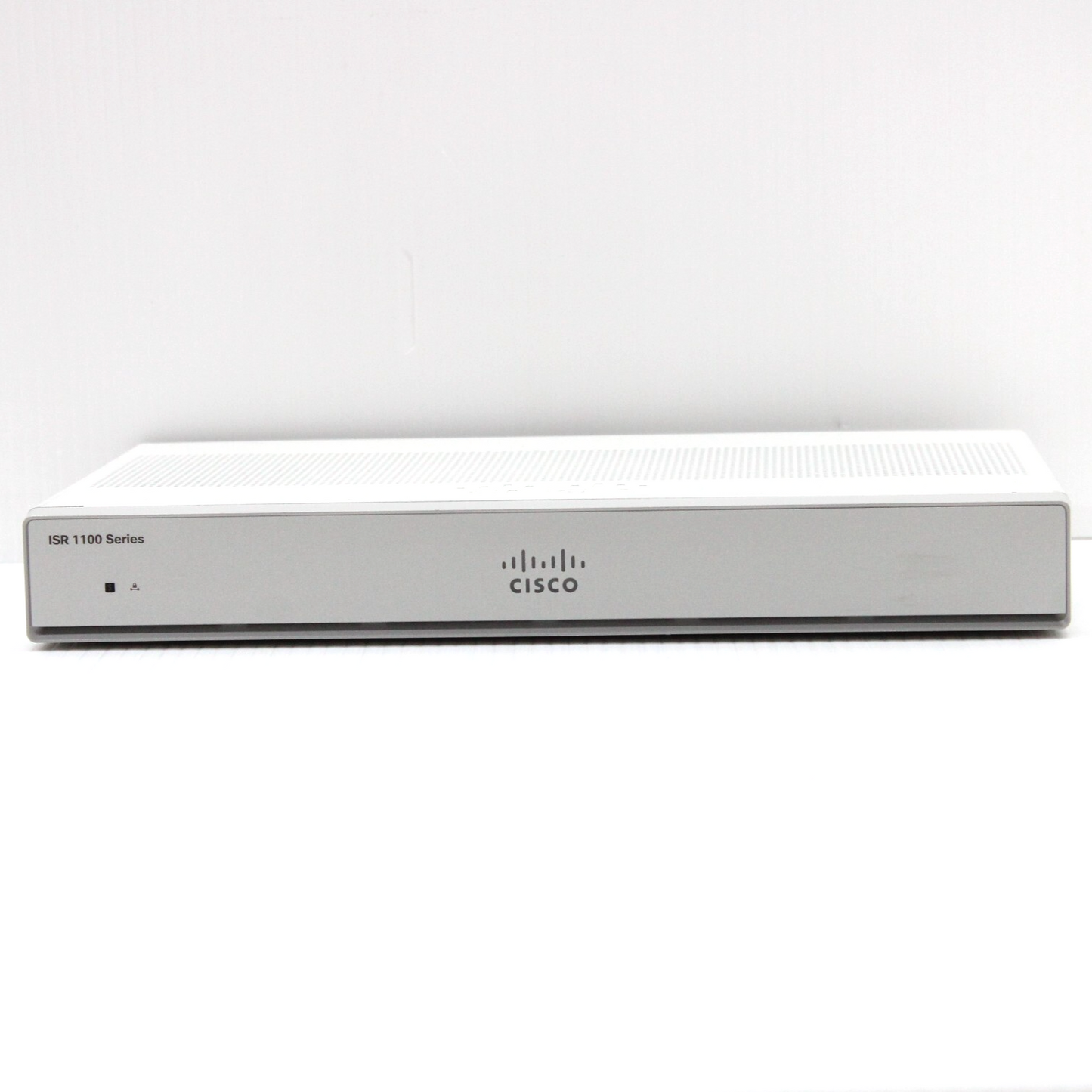

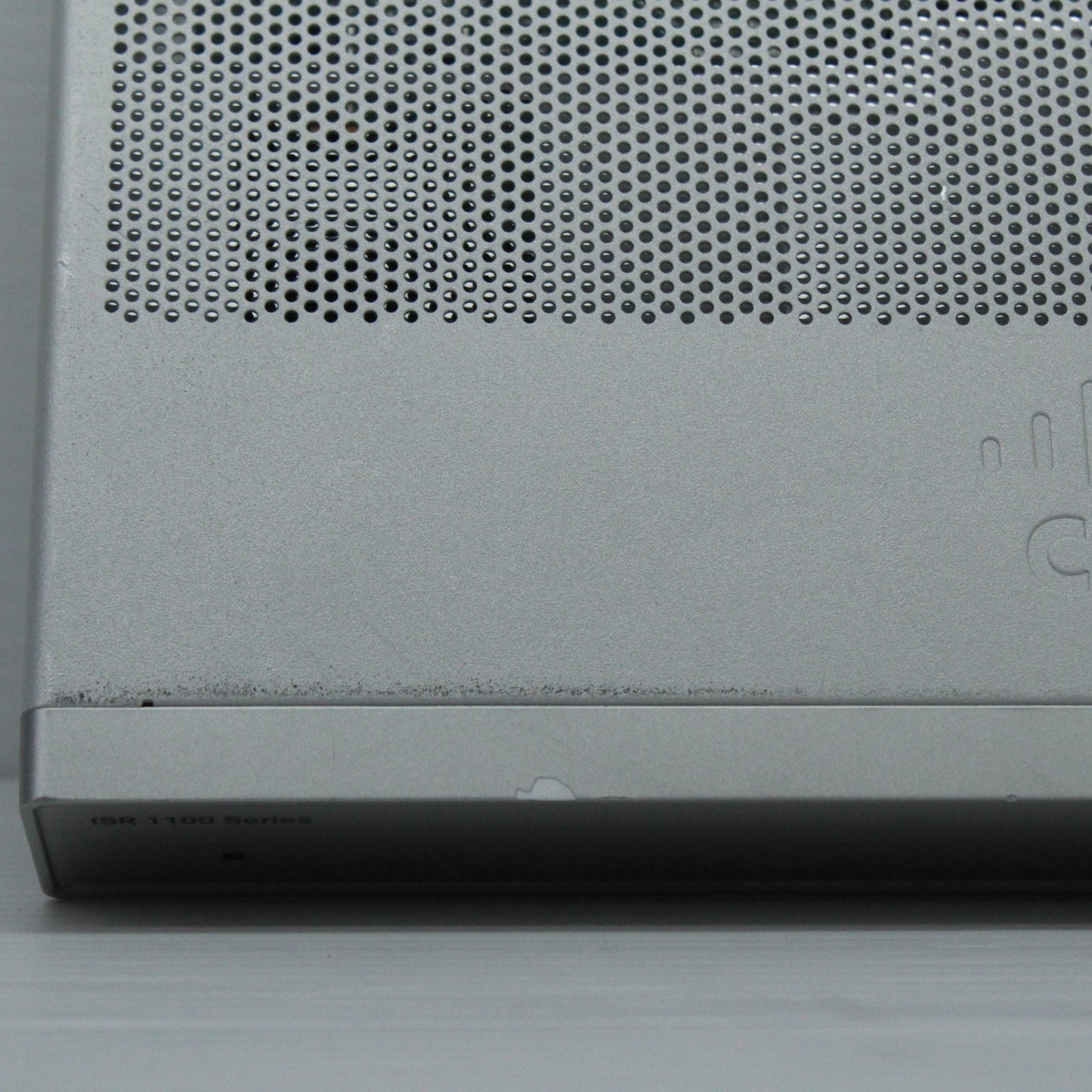

Cisco ISR 1100 Series C1117-4P 4 x 1GB PoE integrated services router with PSU
£60.00
£54.00
10% OFF
Taxes included.
Shipping calculated at checkout.
Low stock: 1 left
Description
Description
Cisco ISR 1100 4P GE Ethernet WAN Router C1117-4P
C1117-4P Specification | |
| Description | ISR 1100 4 Ports DSL Annex A/M and GE WAN Router |
|
Physical Properties | |
| Dimensions (H x W x D) |
Non-LTE models:
H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
| Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
|
AC Input Power | |
| Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Input current |
PoE not enabled: 0.82A maximum
PoE enabled: 1.55A Maximum |
| Surge current | 90 A peak and less than 8 Arms per half cycle |
|

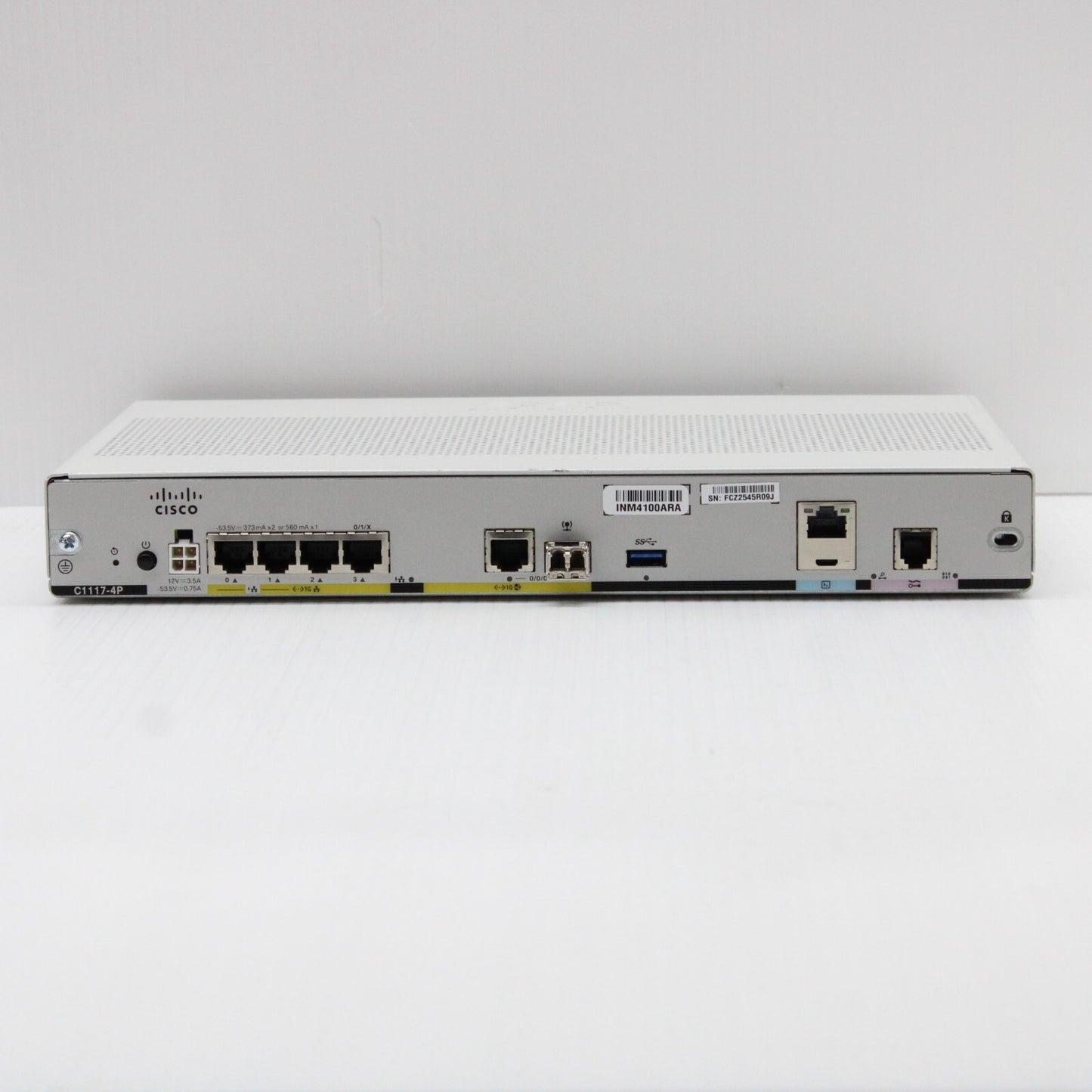

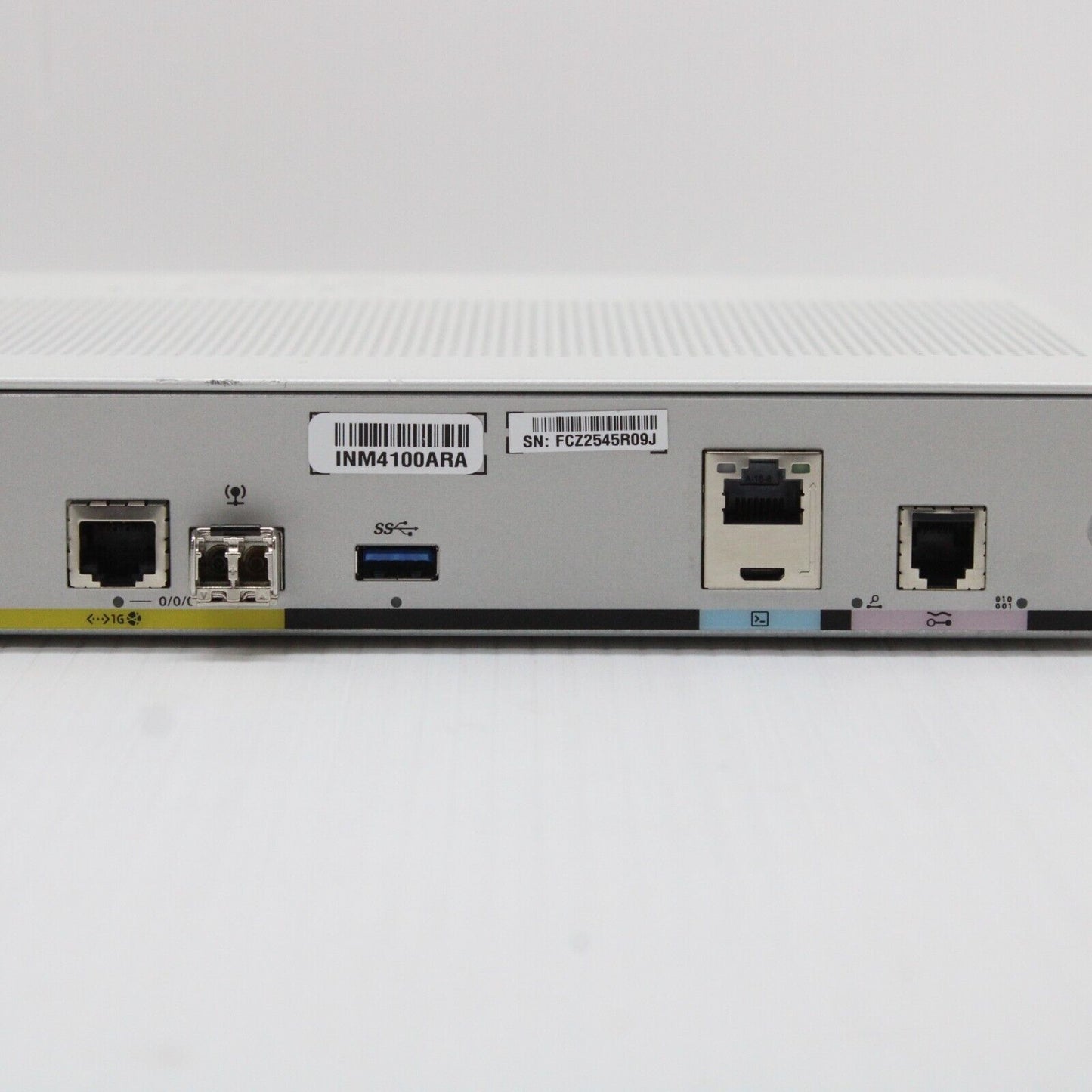

Ports | |
| Micro USB Port | One RJ-45: Separate console port |
| USB port |
USB 3.0 Type A host port
USB devices supported: USB flash memory |
| Console port | One USB 5-pin micro Type B: Console management connectivity |
| 10/100/1000 Gigabit Ethernet |
Two GE ports allocated among RJ45 and SFP as:
One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
| Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
| Wireless specifications | 2×2 .11ac Wave 2 |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |

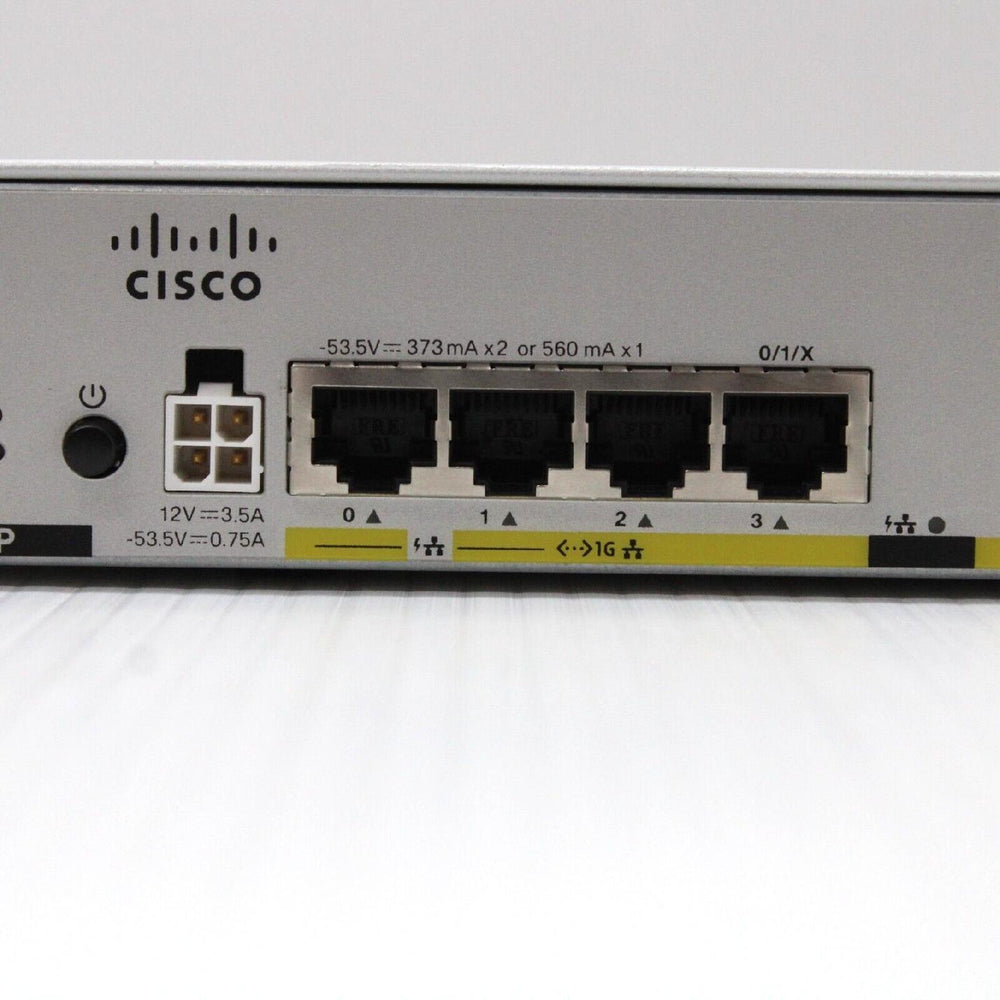

| Inline PoE |
4 ports for -8P PIDs, 2 ports for -4P PIDs
802.3af-compliant PoE or 802.3at-compliant PoE+ |
