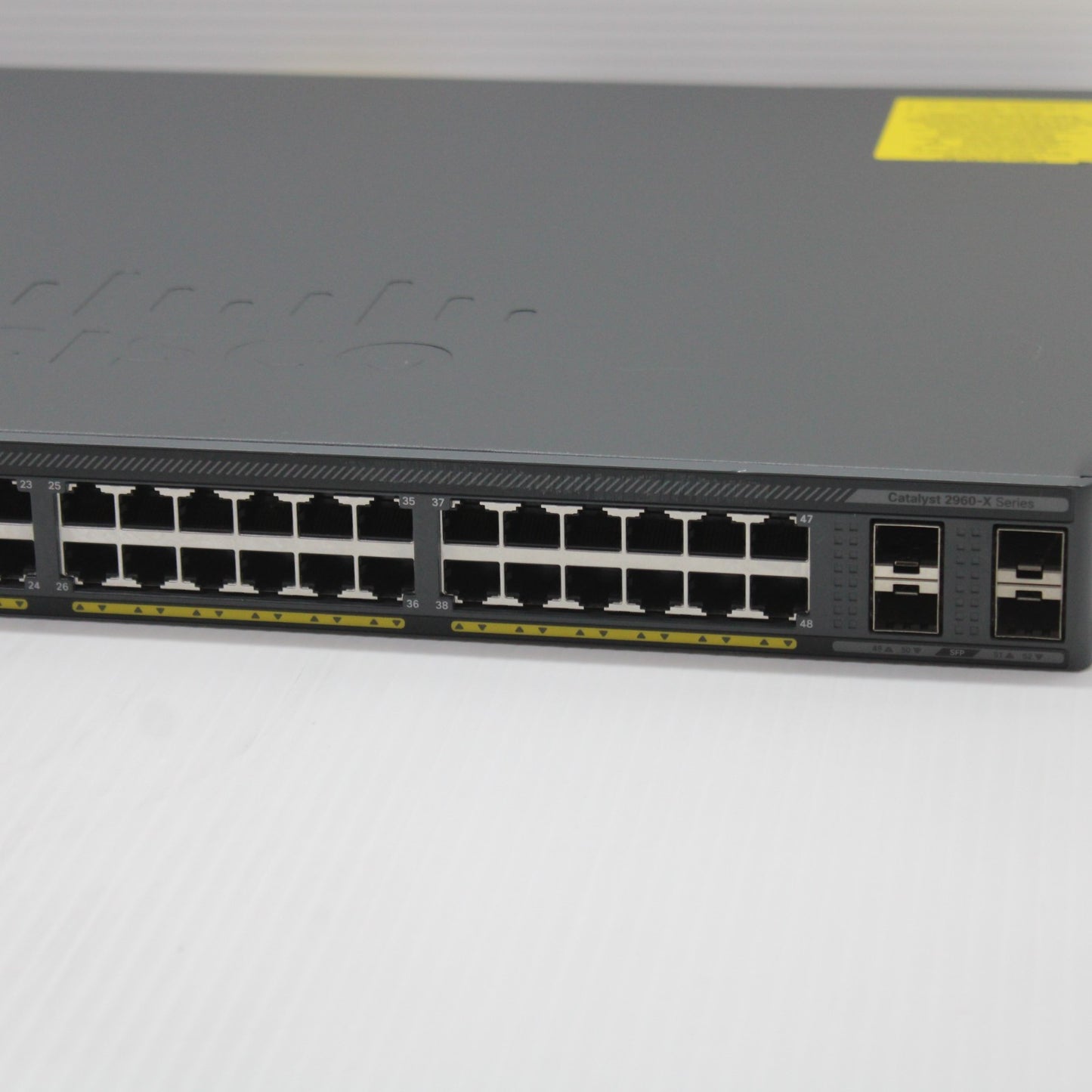

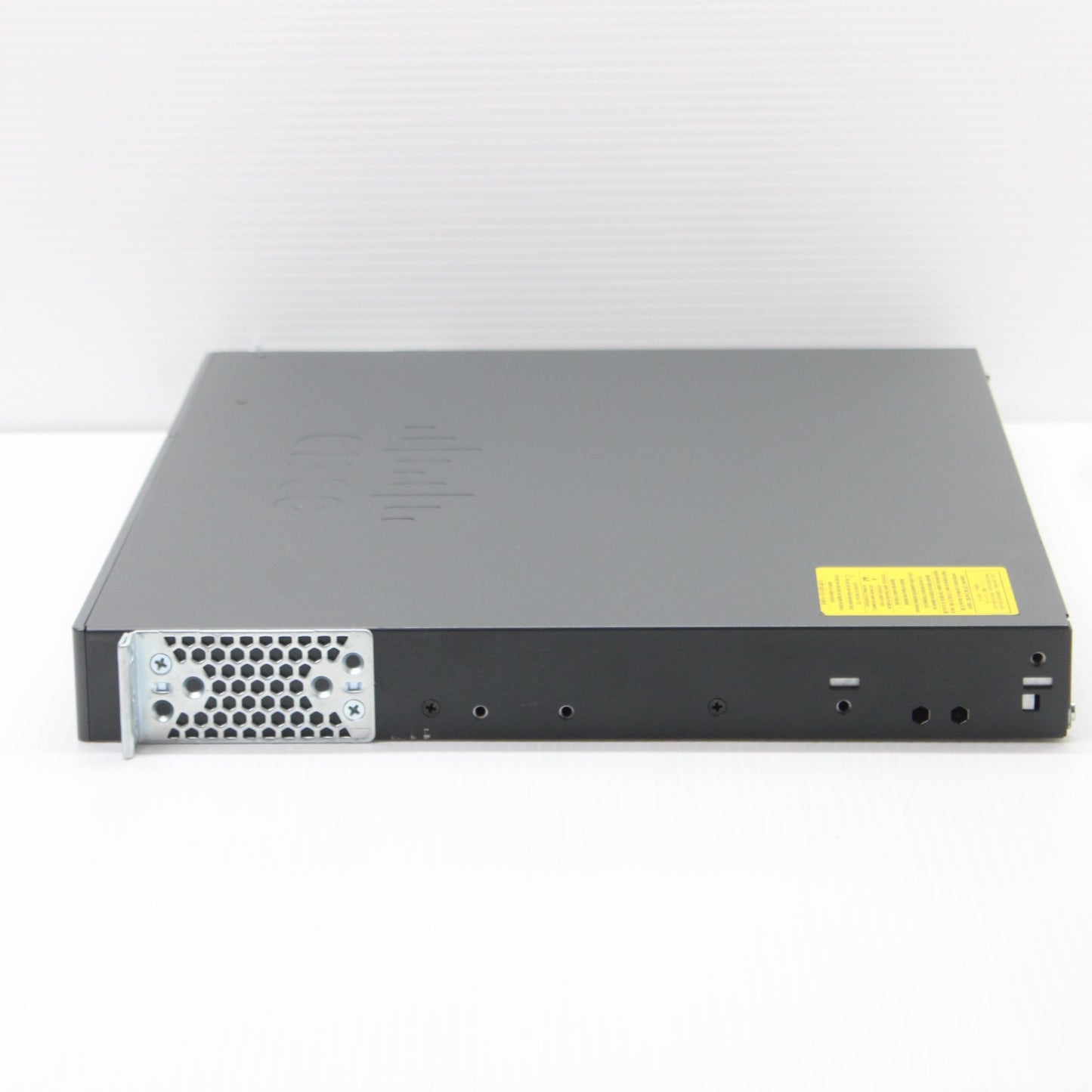

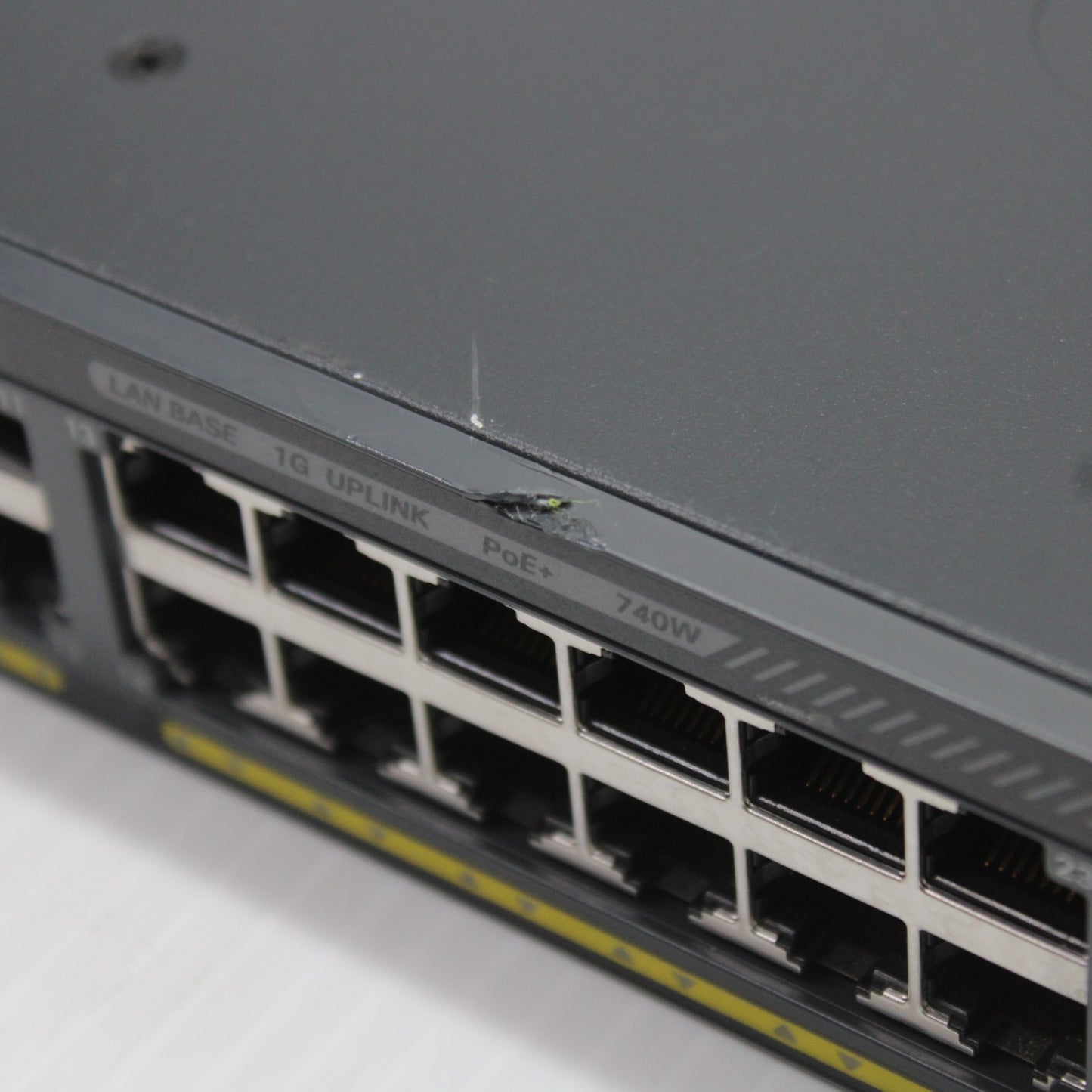

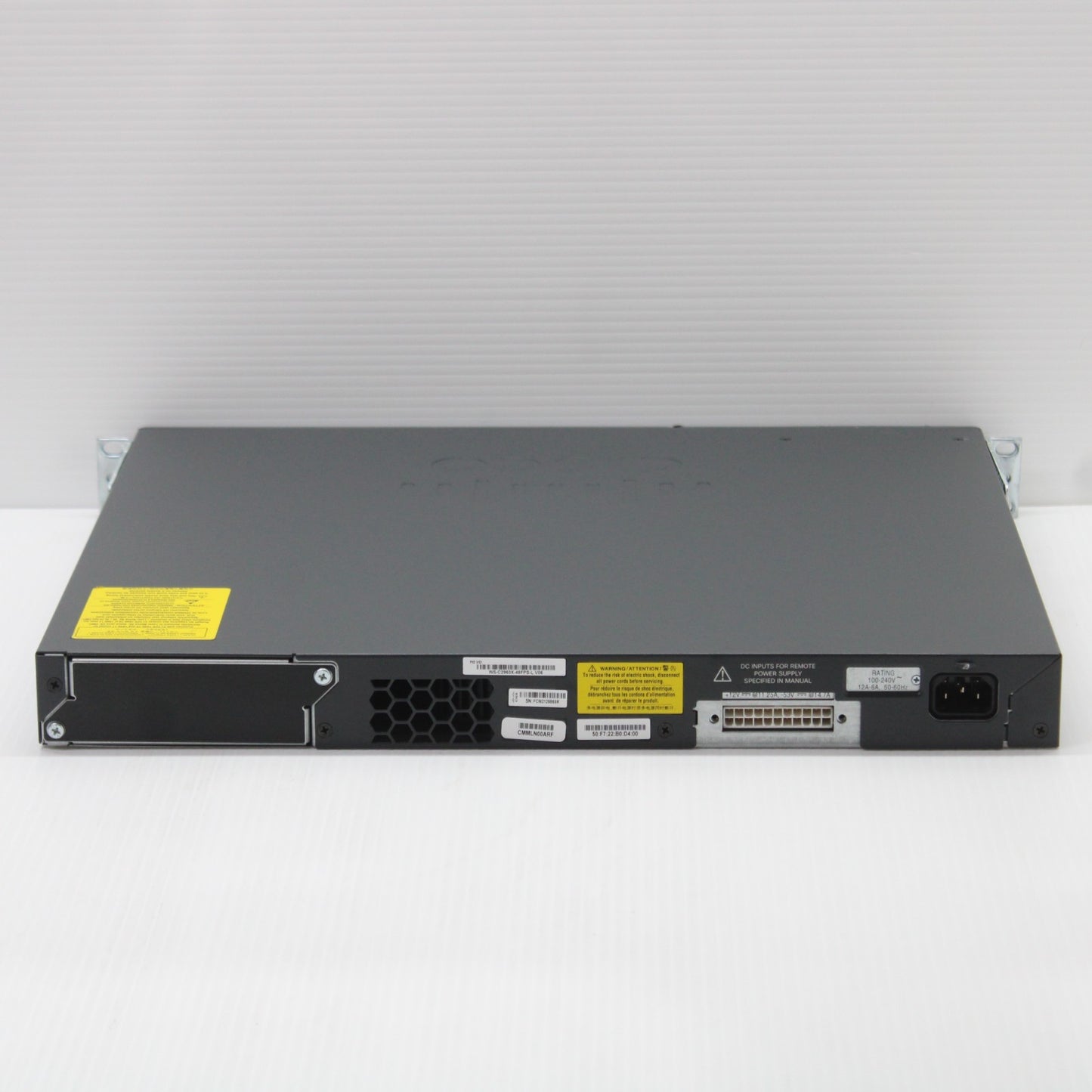

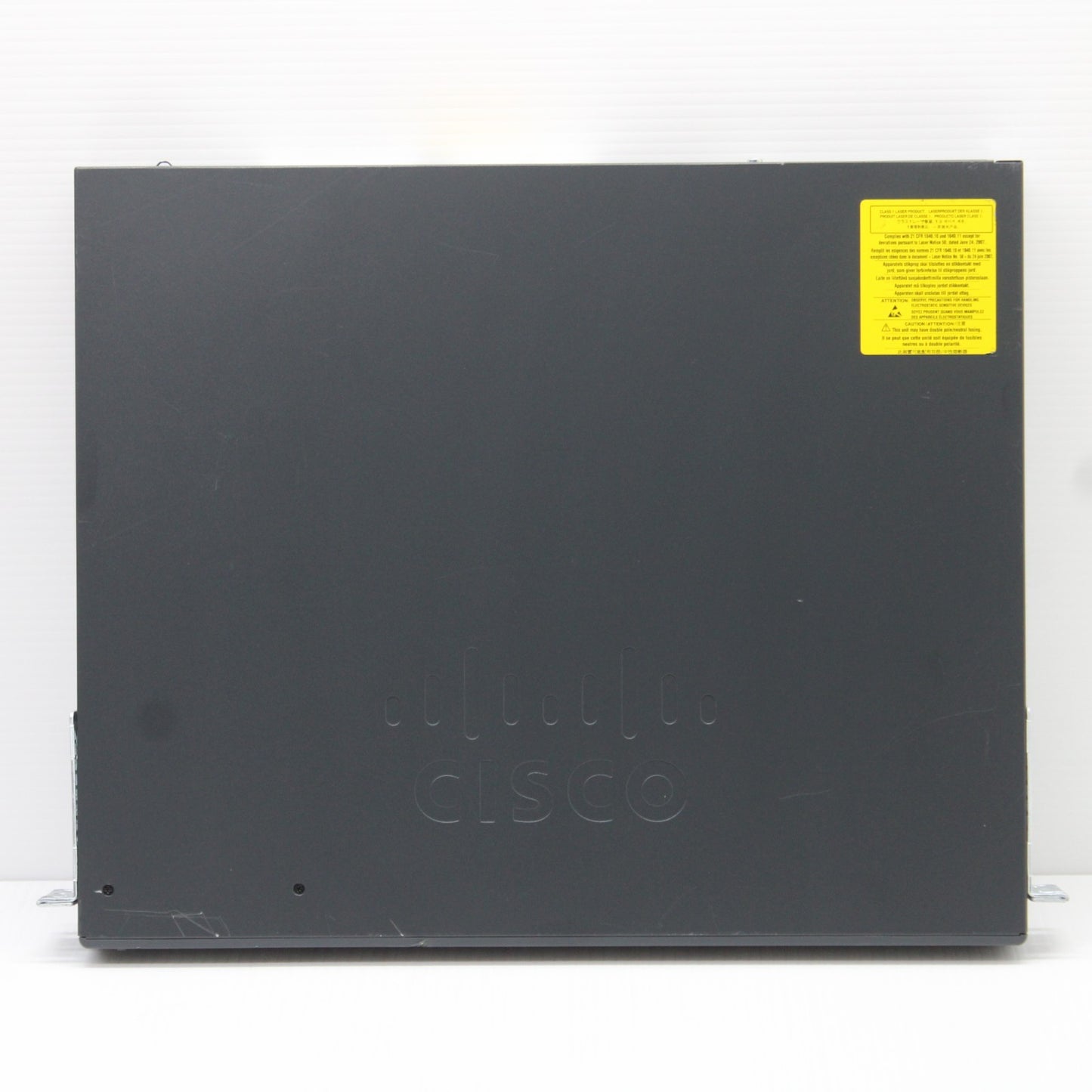

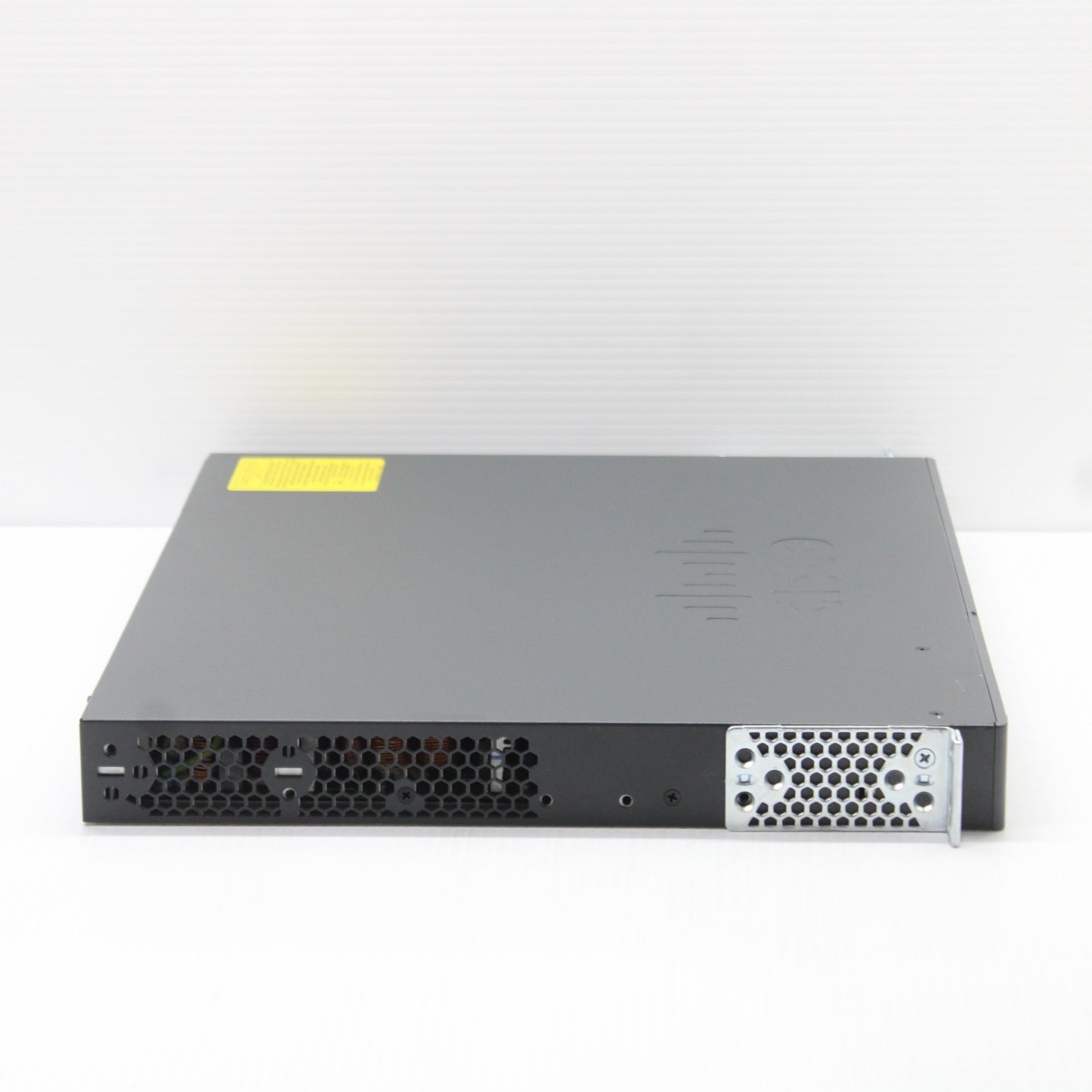

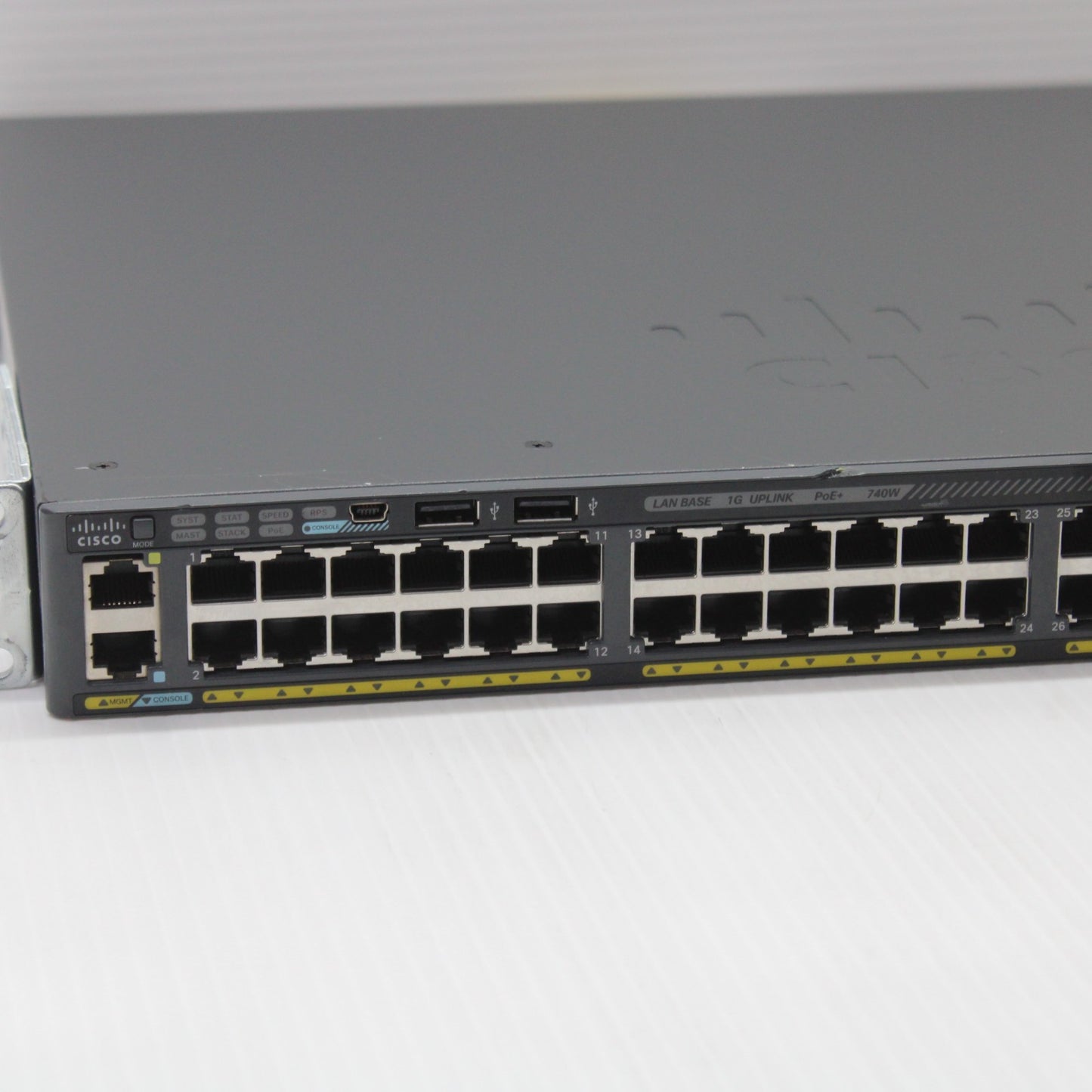

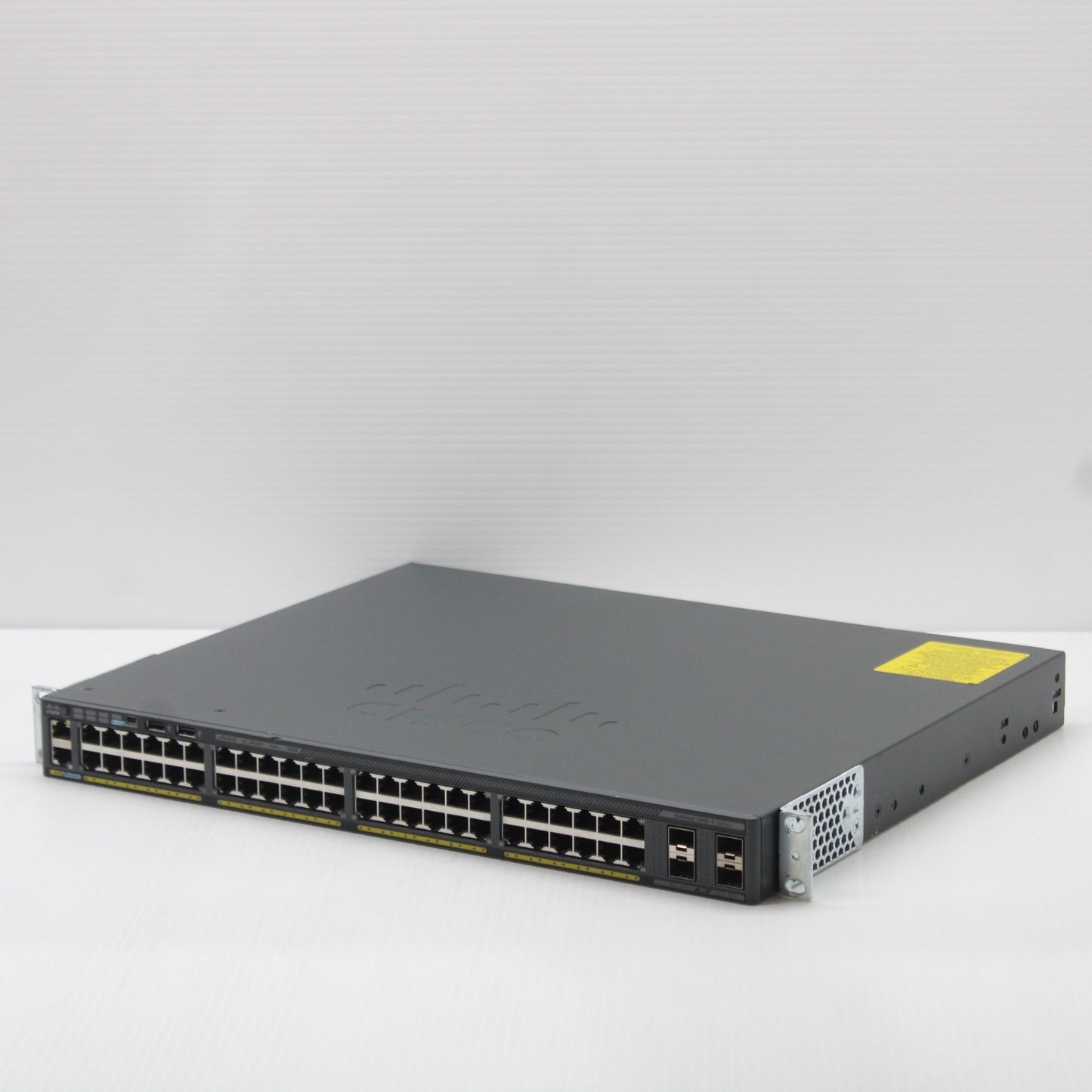

Cisco Catalyst WS C2960X 48FPS L 2960X Switch 48Port Gigabit PoE 4x SFP 740W

SWITCH TYPE

Managed

SWITCH LAYER

L2/L3

QUALITY OF SERVICE (QOS) SUPPORT

Yes

WEB-BASED MANAGEMENT

Yes

BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY

48

BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE

Gigabit Ethernet (10/100/1000)

GIGABIT ETHERNET (COPPER) PORTS QUANTITY

48

SFP MODULE SLOTS QUANTITY

4

CONSOLE PORT

RJ-45

USB 2.0 PORTS QUANTITY

2

RATE LIMITING

Yes

NETWORKING STANDARDS

IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G SUPPORT

Yes

FULL DUPLEX

Yes

BROADCAST STORM CONTROL

Yes

LINK AGGREGATION

Yes

AUTO MDI/MDI-X

Yes

SPANNING TREE PROTOCOL

Yes

VLAN SUPPORT

Yes

NUMBER OF VLANS

1023

SWITCHING CAPACITY

216 Gbit/s

THROUGHPUT

107.1 Mpps

JUMBO FRAMES SUPPORT

Yes

DHCP FEATURES

DHCP server

ACCESS CONTROL LIST (ACL)

Yes

IGMP SNOOPING

Yes

SECURITY ALGORITHMS

802.1x RADIUS,SSH

SSH/SSL SUPPORT

Yes

MULTICAST SUPPORT

Yes

MANAGEMENT PROTOCOLS

SNMPv3

NOISE LEVEL

43 dB

BUILT-IN PROCESSOR

Yes

PROCESSOR MODEL

AppliedMicro APM8639

PROCESSOR FREQUENCY

600 MHz

MEMORY TYPE

DRAM

INTERNAL MEMORY

512 MB

FLASH MEMORY

128 MB

MEAN TIME BETWEEN FAILURES (MTBF)

232610 h

INPUT CURRENT

9 A

REDUNDANT POWER SUPPLY (RPS) SUPPORT

Yes

NUMBER OF POWER SUPPLY UNITS

1

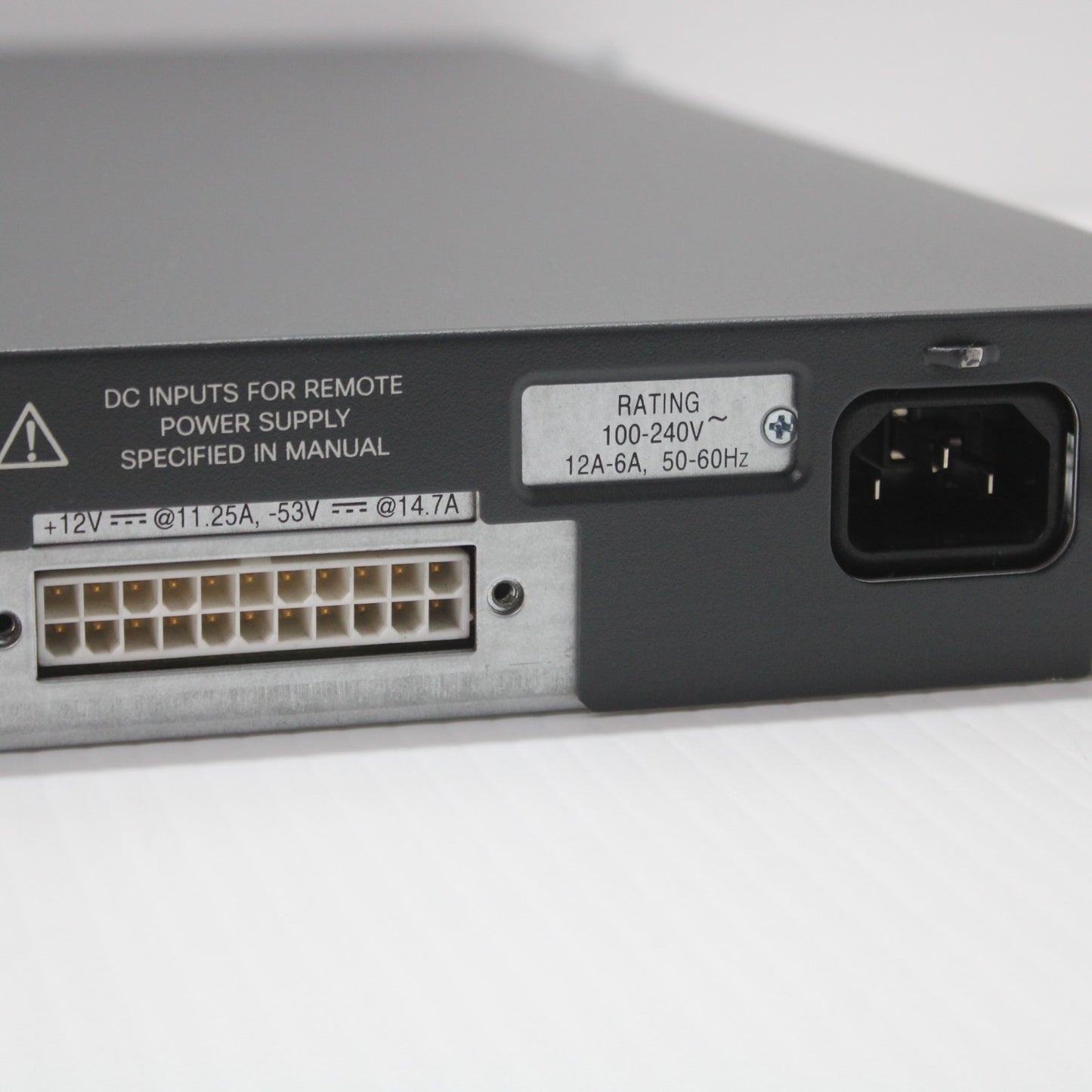

AC INPUT VOLTAGE

100 - 240 V

AC INPUT FREQUENCY

50 - 60 Hz

POWER CONSUMPTION (TYPICAL)

66.6 W

POWER OVER ETHERNET (POE) PORTS QUANTITY

48

POWER OVER ETHERNET PLUS (POE+) PORTS QUANTITY

24

POWER OVER ETHERNET (POE)

Yes

WIDTH

445 mm

DEPTH

368 mm

HEIGHT

45 mm

WEIGHT

5.8 kg

POWER LED

Yes
