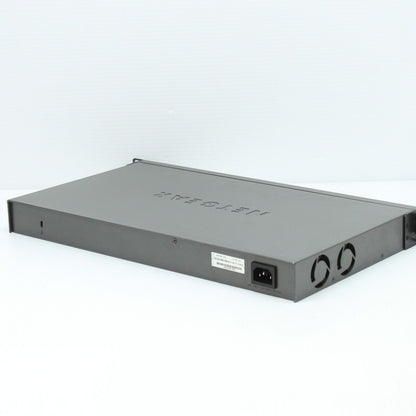

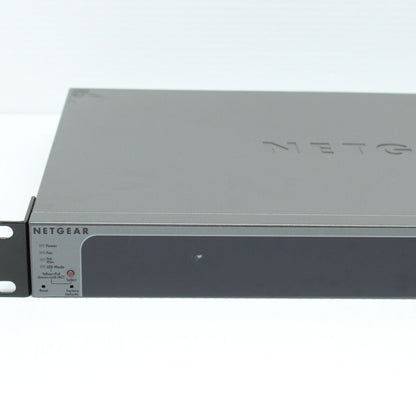

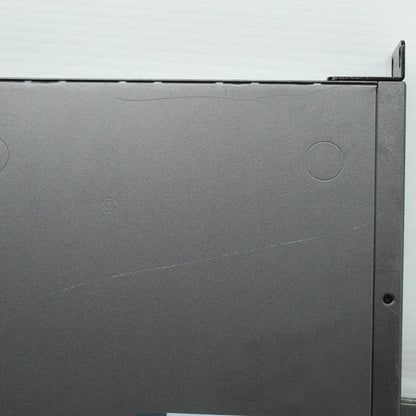

NetGear ProSafe GS728TP 24 x port Gigabit PoE Smart Managed Switch 4 x SFP Ports

Form-Factor

Rackmount

10/100/ 1000Base-T RJ45 ports

24

100/1000X Fiber SFP ports

4 (Dedicated)

PoE 802.3af PoE+ 802.3at

24 PoE 802.3af of which first 8 are PoE+ 802.3at

Power Supply

Internal

PoE budget (PSU/ Passthrough)

192W

Interfaces

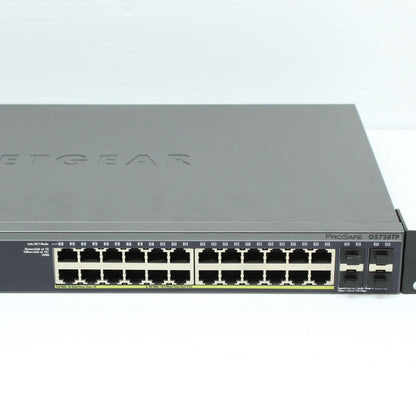

24 Auto-sensing Gigabit ports, and four dedicated Gigabit SFP fiber ports

PoE Ports

• Port 1-8: IEEE 802.3at PoE+, providing up to 30W of DC power through each port

• Port 9-24: IEEE 802.3af PoE, providing up to 15.4W of DC powerthrough each port

Bandwidth

56 Gbps

Acoustic noise

(ANSI-S10.12)

31.8 dBA

Mean Time Between

Failures (MTBF)

345,901 hours

Heat Dissipation

(at AC 97VAC/47Hz

and full PoE load)

901.2 Btu/H

IEEE network protocols

• IEEE 802.3 Ethernet

• IEEE 802.3i 10BASE-T

• IEEE 802.3u 100BASE-T

• IEEE 802.3ab 1000BASE-T

• IEEE 802.1Q VLAN Tagging

• IEEE 802.3x full-duplex flow control

• IEEE 802.3z Gigabit Ethernet 1000BASESX/LX

• IEEE 802.3ae 10-Gigabit Ethernet

• IEEE 802.3ad Trunking (LACP)

• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)

• IEEE 802.1p Class of Service

• IEEE 802.3 af (PoE)

• IEEE 802.1D Spanning Tree (STP)

• IEEE 802.1s Multiple Spanning Tree (MSTP)

• IEEE 802.1w Rapid Spanning Tree (RSTP)

• IEEE 802.1x Radius network access control

• IEEE 802.3 at (PoE Plus)

Dimensions

440 x 257 x 44 mm

Weight

3.73 kg

Worst case, all ports used, line-rate traffic, max PoE (power consumption)

264W
