Juniper Networks EX4200-24F 24 Port 1000BaseX SFP Layer 3 Switch 320AC PSU
Couldn't load pickup availability
Description
Description

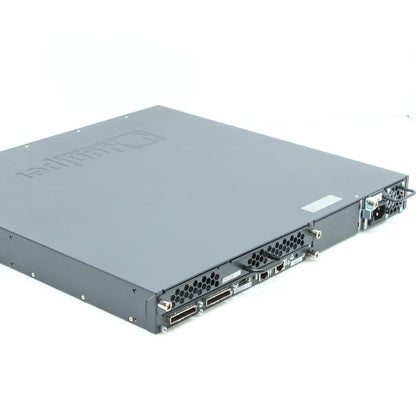

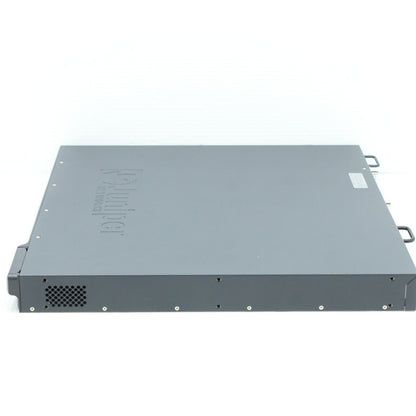

Juniper Networks EX4200-24F Ethernet Switch
Technical Specifications:
| Model: | EX4200-24F |
|---|---|
| Physical Specifications | |
| Form Factor |
|
| Backplane | 128 Gbps Virtual Chassis interconnect to combine up to 10 units as a single logical device |
| Uplink module options |
|
| Dimensions (W x H x D) | 17.41 x 1.72 x 16.43 in (44.21 x 4.32 x 41.73 cm) |
| Weight | 16.1 lb (7.3 kg) |
| Rack mountable | 1 Rack Unit |
| Hardware Specifications | |
| Switching Engine Model | Store and forward |
| DRAM | 1 GB with ECC |
| Flash | 1 GB |
| CPU | 1 GHz PowerPC CPU |
| Data Rate | 88 Gbps |
| GbE port density per system | 28 (24 host ports + four-port GbE uplink module) |
| 10 GbE port density per system | 2 (uplink module) |
| Packet Switching Capacities | 88 Gbps |
| Aggregate Switch Capacities | 216 Gbps |
| Layer 2/Layer 3 Throughput (Mpps) | 65 Mpps (wire speed) |
| Resiliency | Internal, hot-swappable redundant power supply; field-replaceable fan tray with three fans; graceful Route Engine switchover (GRES) in Virtual Chassis configuration |
| Operating System | JUNOS |
| QoS Queues / Port | 8 |
| MAC Addresses | 24,000 |
| Jumbo Frames | 9216 Bytes |
| IPv4 Unicast / Multicast Routes | 12,000 / 2,000 |
| Number of VLANs | 4,096 |
| ARP Entries | 16,000 |
Sellers Notes
- Power cable included
- 1 x 320W Power Supply Unit100% Genuine
