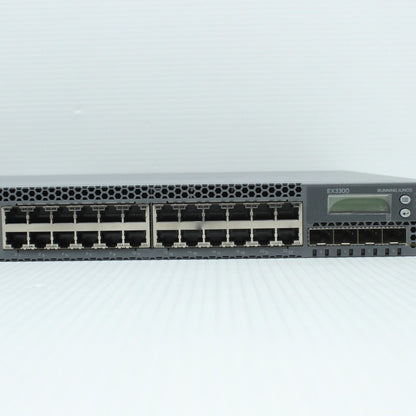

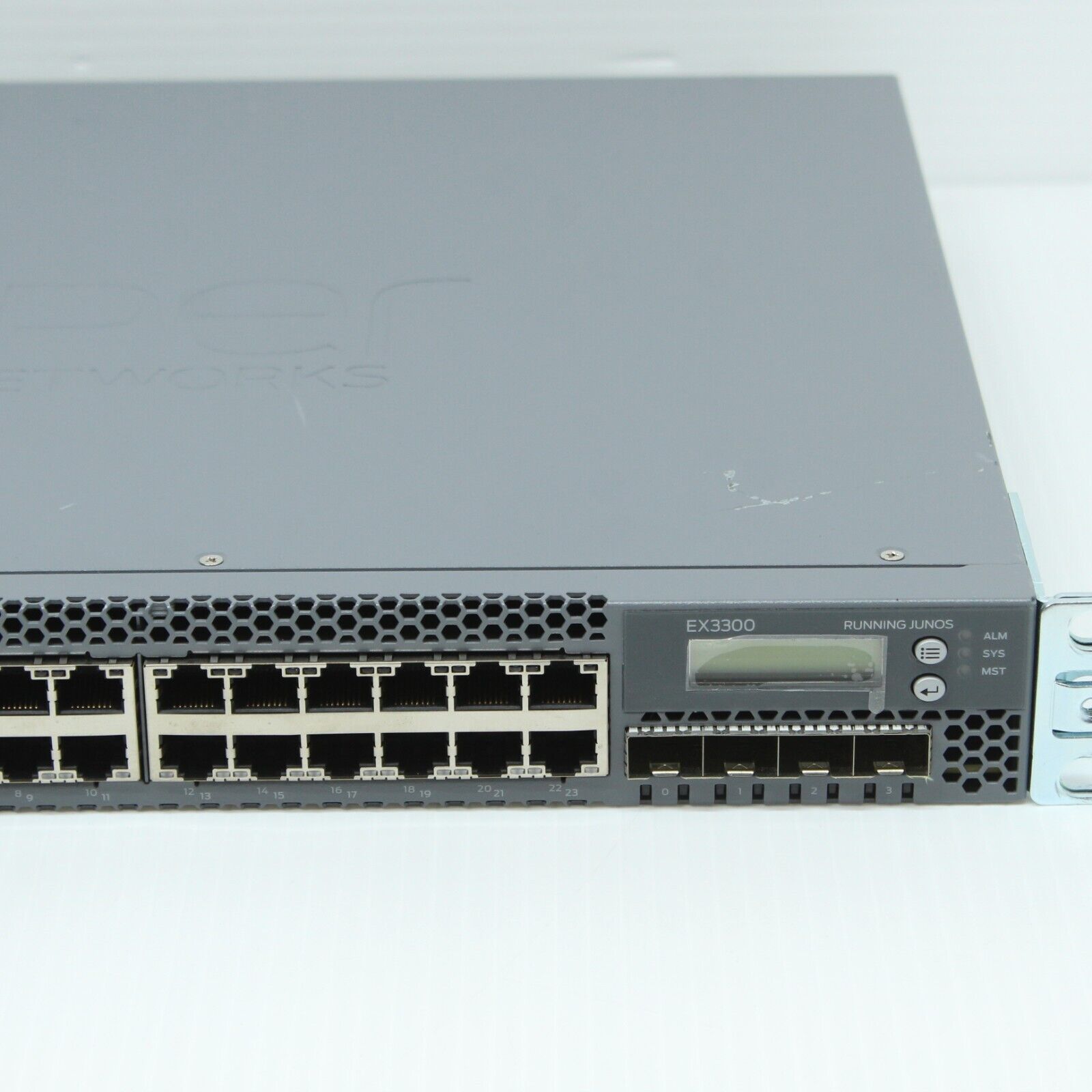

Juniper Networks EX3300 24T Ethernet Switch 24 Port 4x SFP+ 10/100/1000BASE-T
Couldn't load pickup availability
Description
Description

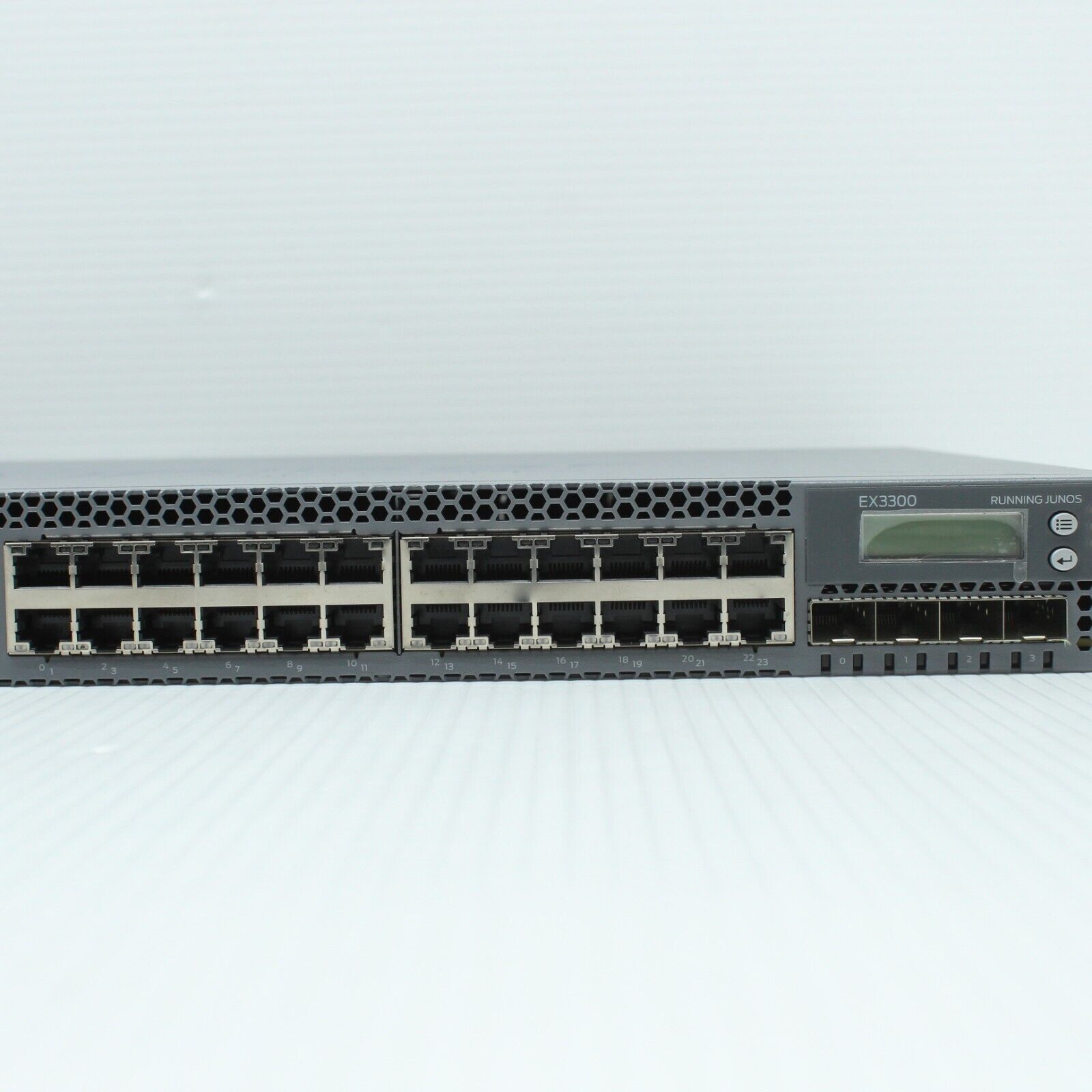

Juniper Networks EX3300 24T Switch
Technical Specifications:

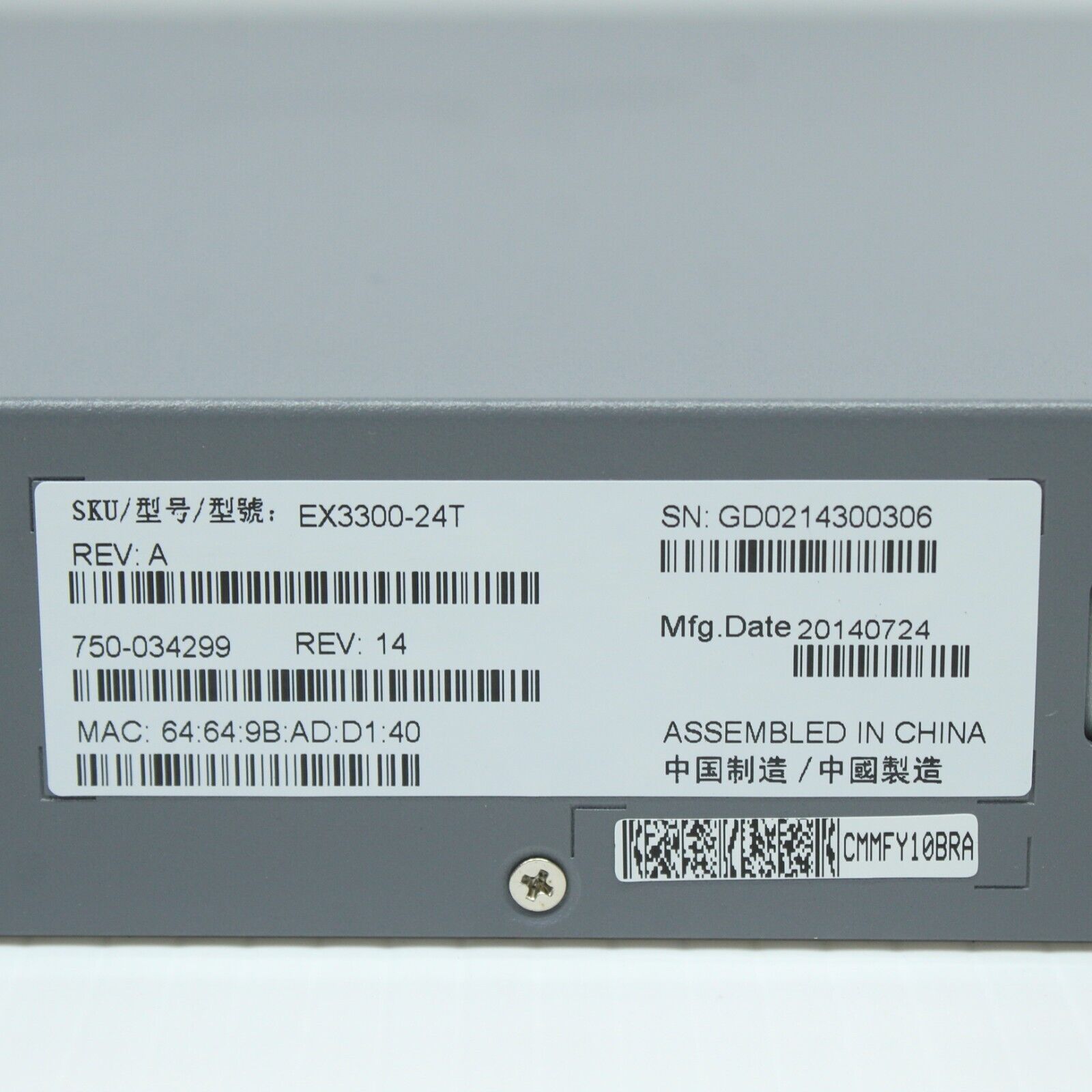

| Model: | EX3300-24T |
|---|---|
| Physical Specifications | |
| Form Factor | Fixed platform |
| Uplink module options | Fixed 4-port uplinks which can be individually configured as GbE (SFP) or 10GbE (SFP+) ports. |
| Dimensions (W x H x D) | 17.4 x 1.7 x 12 in (43.7 x 4.4 x 31 cm) |
| Weight | 10.0 lb (4.6 kg) |
| Rack mountable | 1 Rack Unit |
| Hardware Specifications | |
| Switching Engine Model | Store and forward |
| DRAM | 1 GB with ECC |
| Flash | 1 GB |
| CPU | 1 GHz |
| GbE port density per system | 28 (24 host ports + four 10 GbE/GbE uplink ports) |
| Virtual Chassis Capabilities |
|
| Backplane Speed | 40-80 Gbps |
| Data Rate | 128 Gbps |
| Throughput | 95 Mpps (wire speed) |
| 10/100/1000BASE-T Port Densities | 28 per platform (24 access ports + four uplink ports) |
| 100BASE-FX / 1000BASE-X (SFP) Port Densities | 4 per switch (fixed ports, SFP/SFP+ required) |
| 10GBASE-X Port Densities | 4 per switch |
| Resiliency | Graceful Route Engine Failover (GRES) in Virtual Chassis configuration; external power supply option (future) |
| Operating System | Junos |
| Traffic Monitoring | N/A |
| QoS Queues / Port | 8 |
| MAC Addresses | 16,000 |
| Jumbo Frames | 9216 Bytes |
| IPv4 Unicast / Multicast Routes | 8,000 / 0 |
| Number of VLANs | 4,096 |
| ARP Entries | 4,000 |
| Power Options | |
| Power Supplies | Autosensing; 100-120 V / 200-240 V; AC 100 W |
| Environment | |
| Operating Temperature | 32° to 113° F (0º to 45º C) |
| Storage Temperature | -40º to 158º F (-40º to 70º C) |
| Relative Humidity (Operating) | 10% to 85% (noncondensing) |
| Relative Humidity (Non-Operating) | 0% to 95% (noncondensing) |
| Altitude (Operating) | Up to 10,000 ft (3,048 m) |
| Altitude (Non-Operating) | Up to 16,000 ft (4,877 m) |
| Noise Specifications | |
| Acoustic Noise in DBA | 45.2 |
| Safety and Compliance | |
| Safety Certifications |
|
| Electromagnetic Compatibility Certifications |
|
| Environmental | Reduction of Hazardous Substances (ROHS) 6 |
| Telco | CLEI code |
| FIPS | FIPS 140-2 Level 1 |
| Telecom Quality Management | TL9000 |
Sellers Notes
- Power cable included
- Rack mount brackets included
