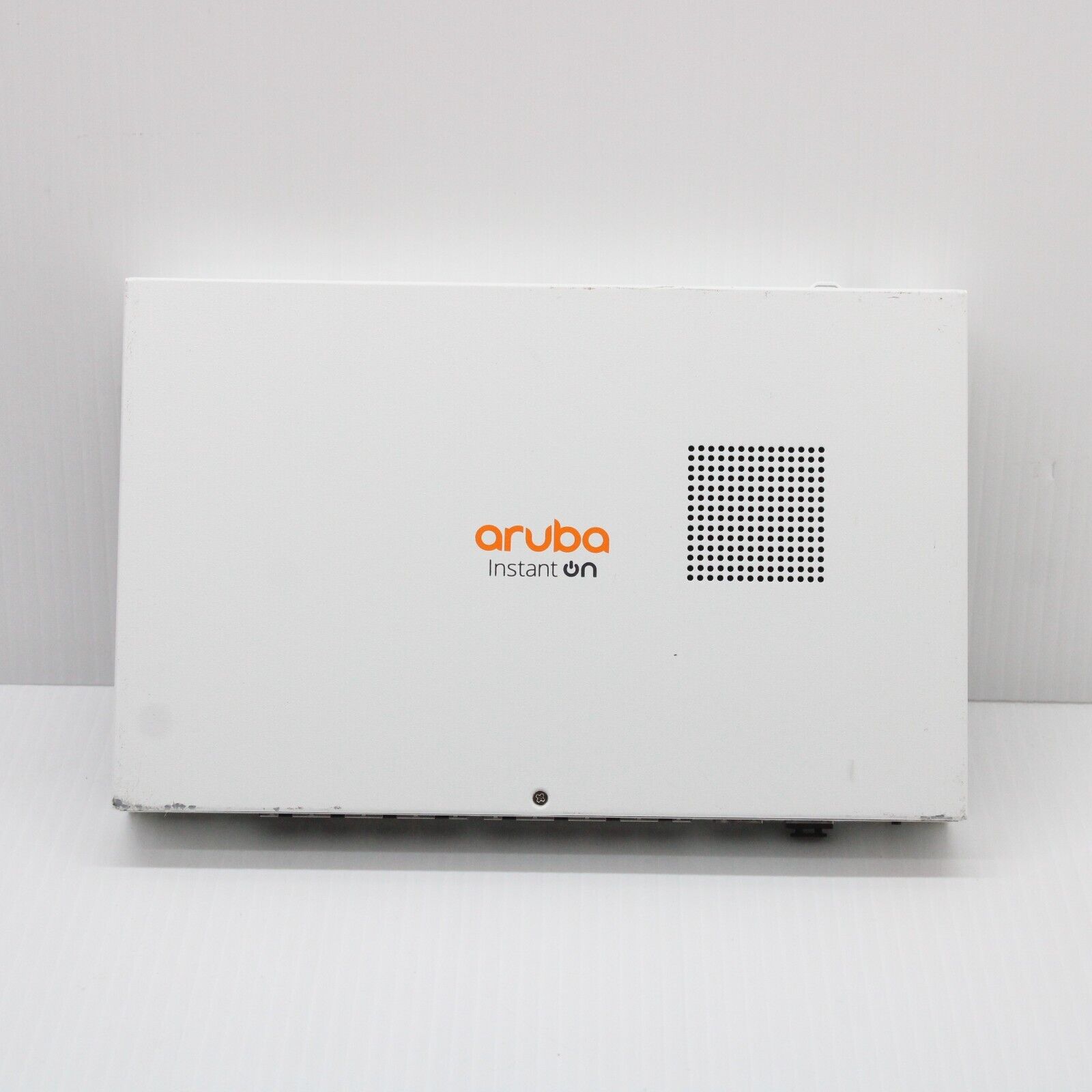

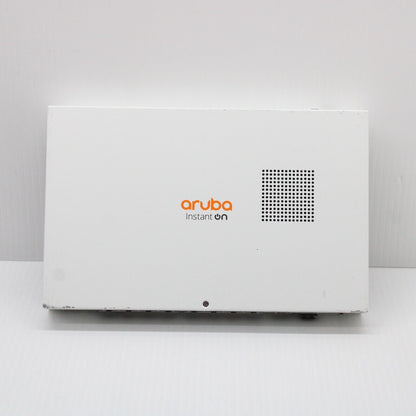

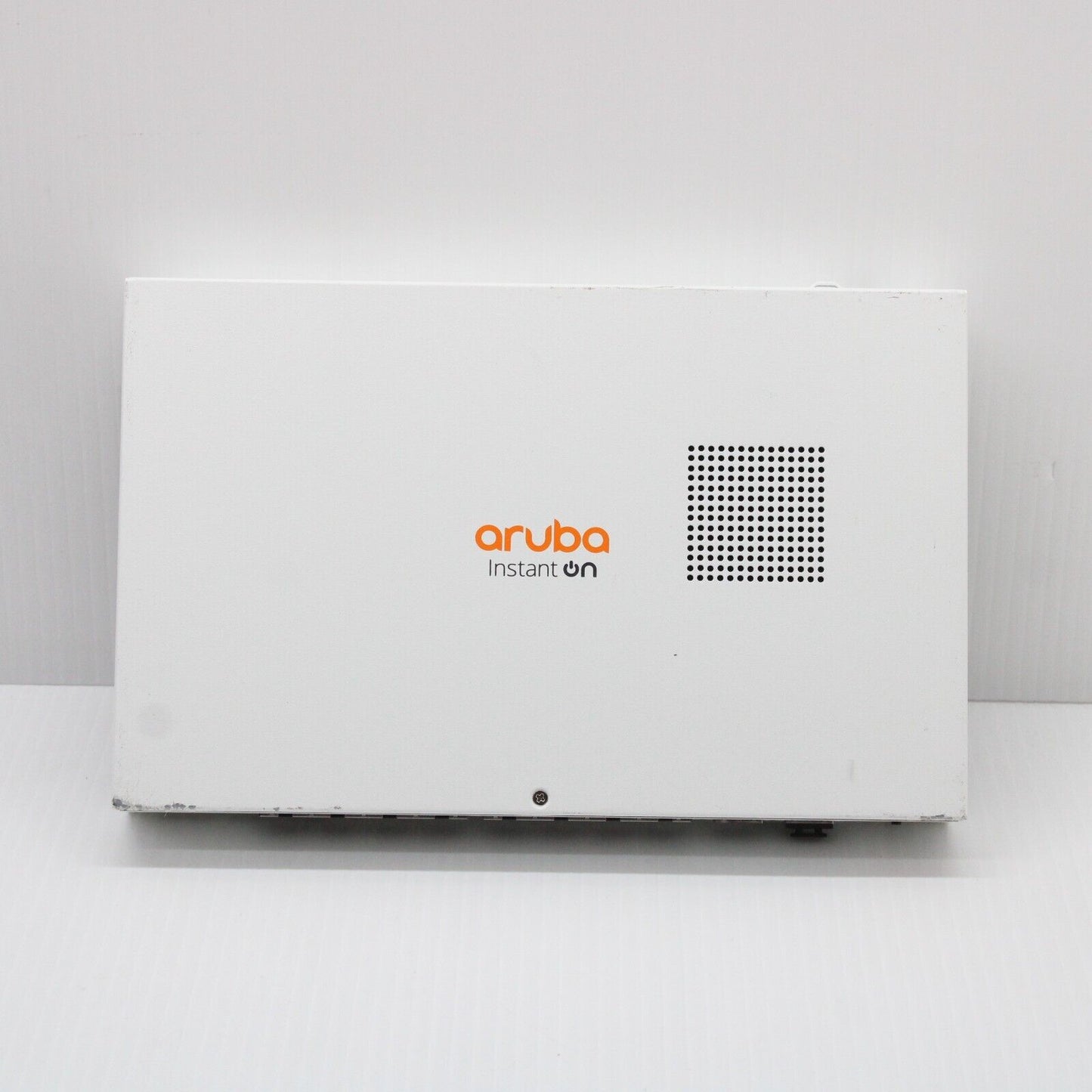

HP Aruba Instant On 1930 JL680A 8 Gigabit Ethernet Ports 124W POE Managed Switch

Aruba Instant On 1930 8G 2SFP (JL680A) Technical Specification

I/O ports and slots

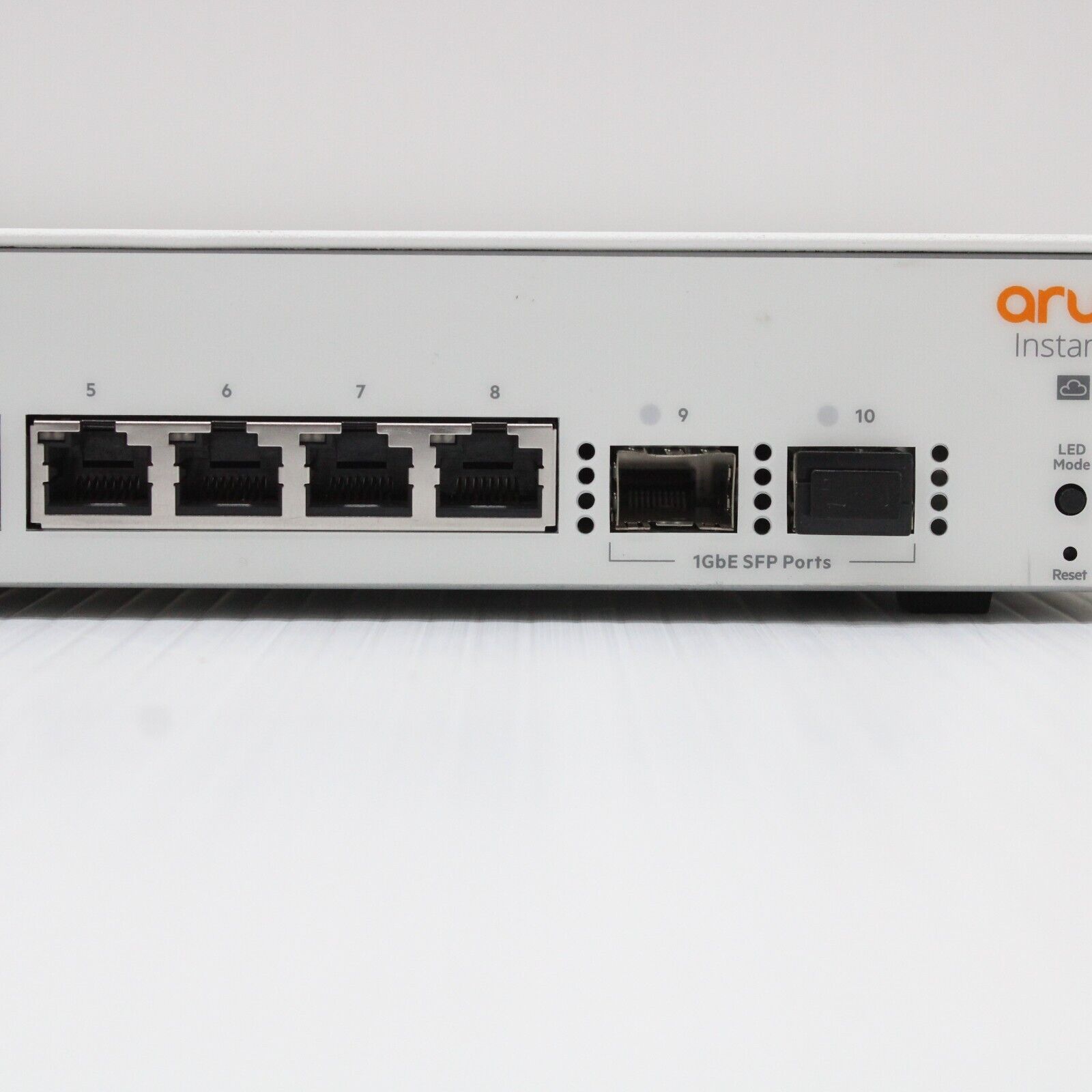

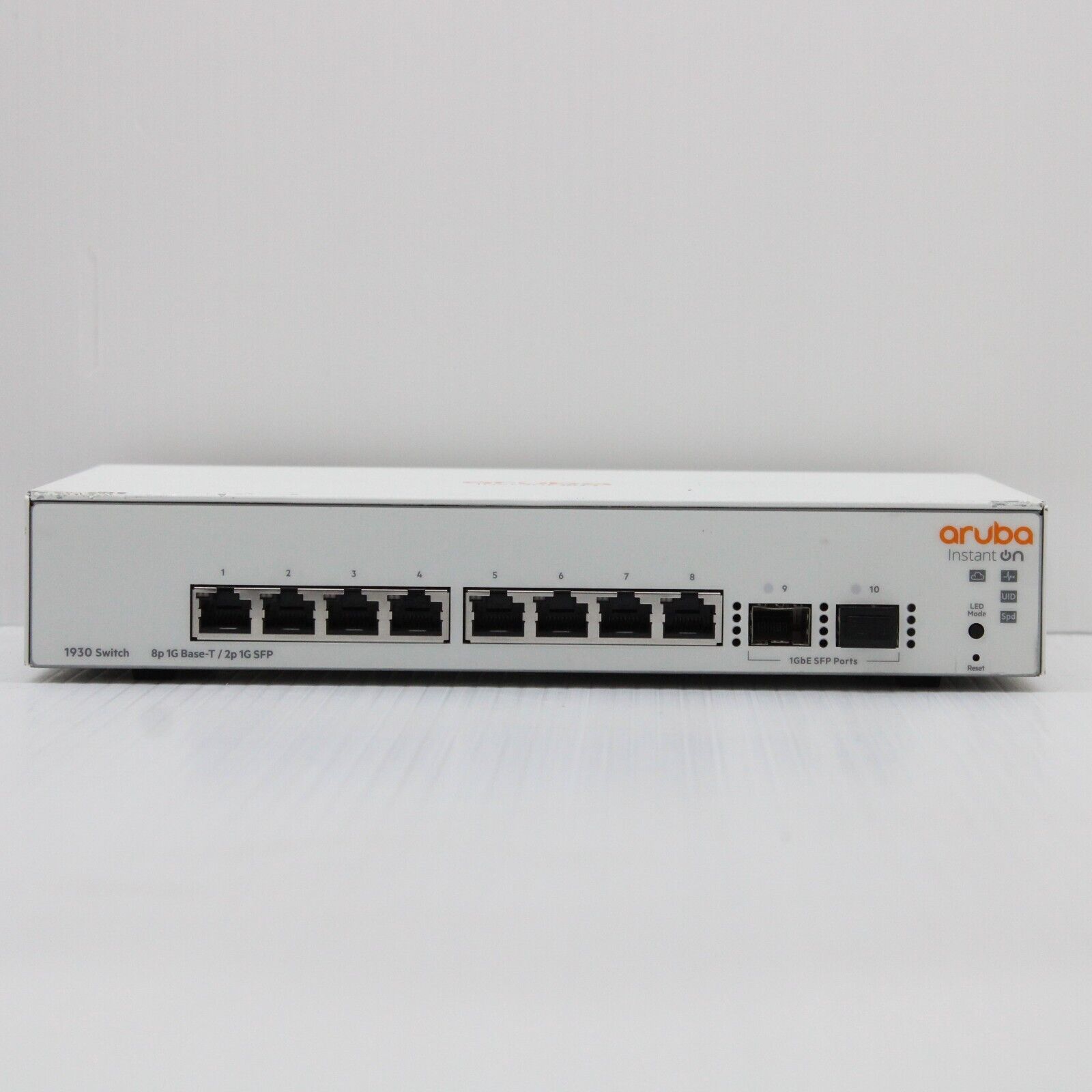

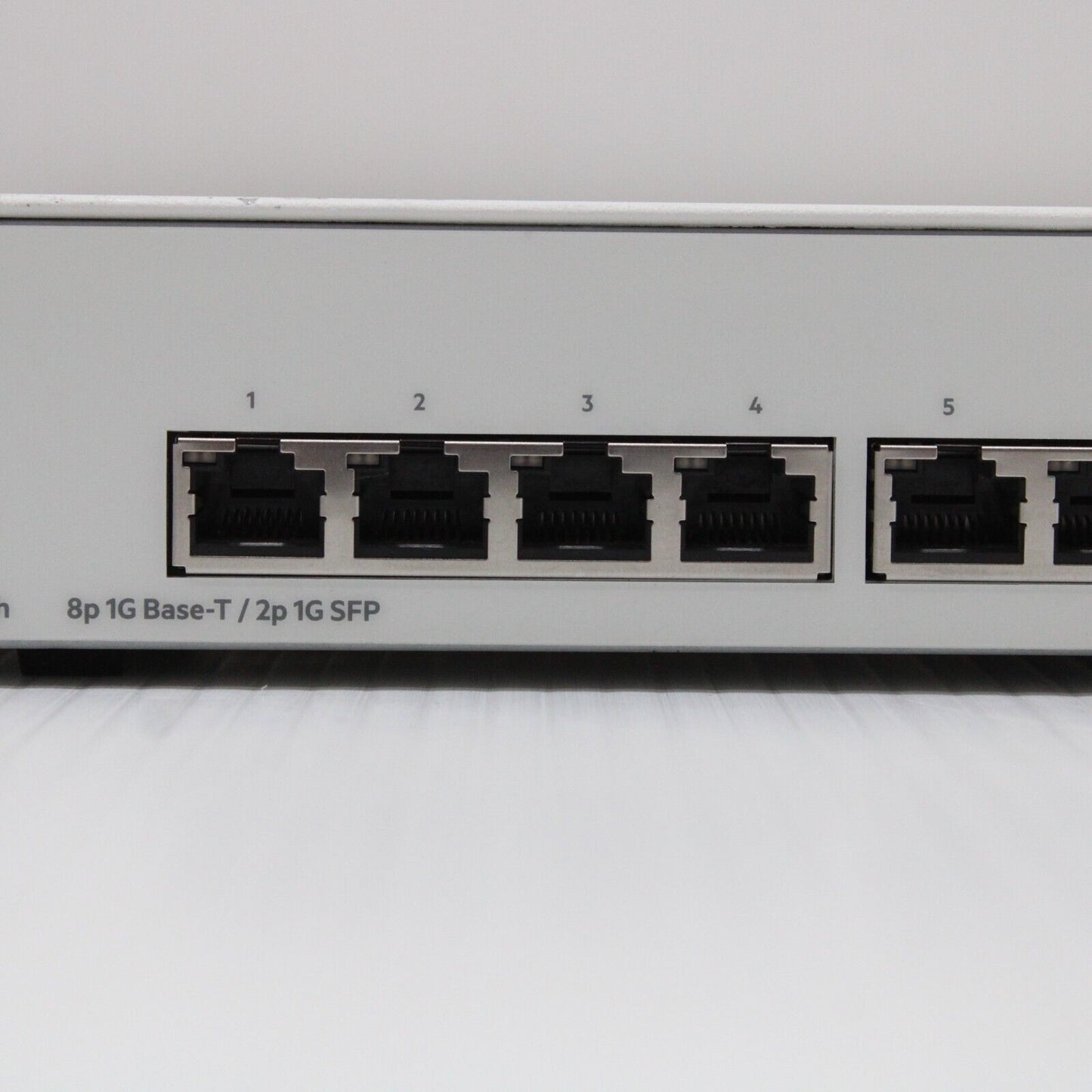

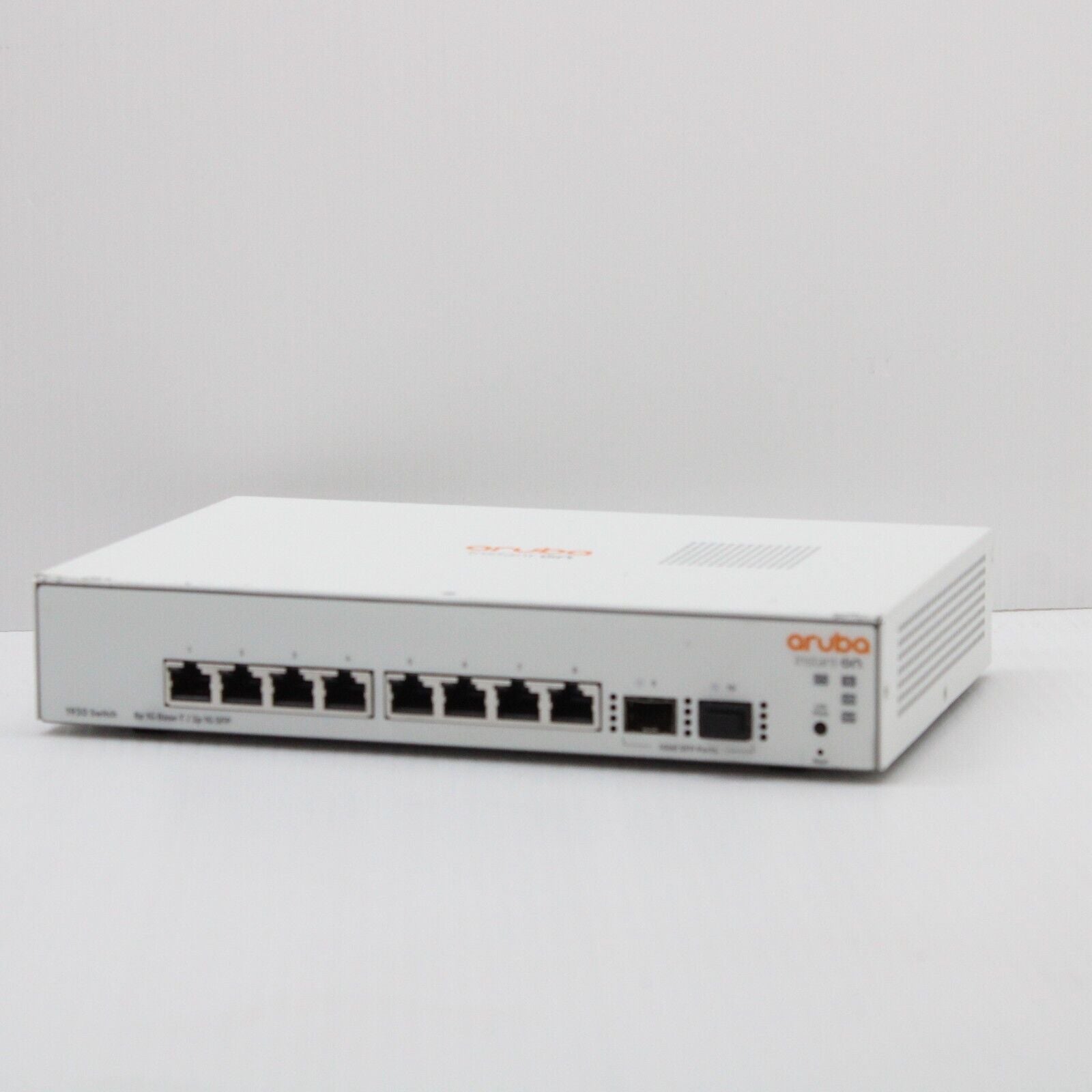

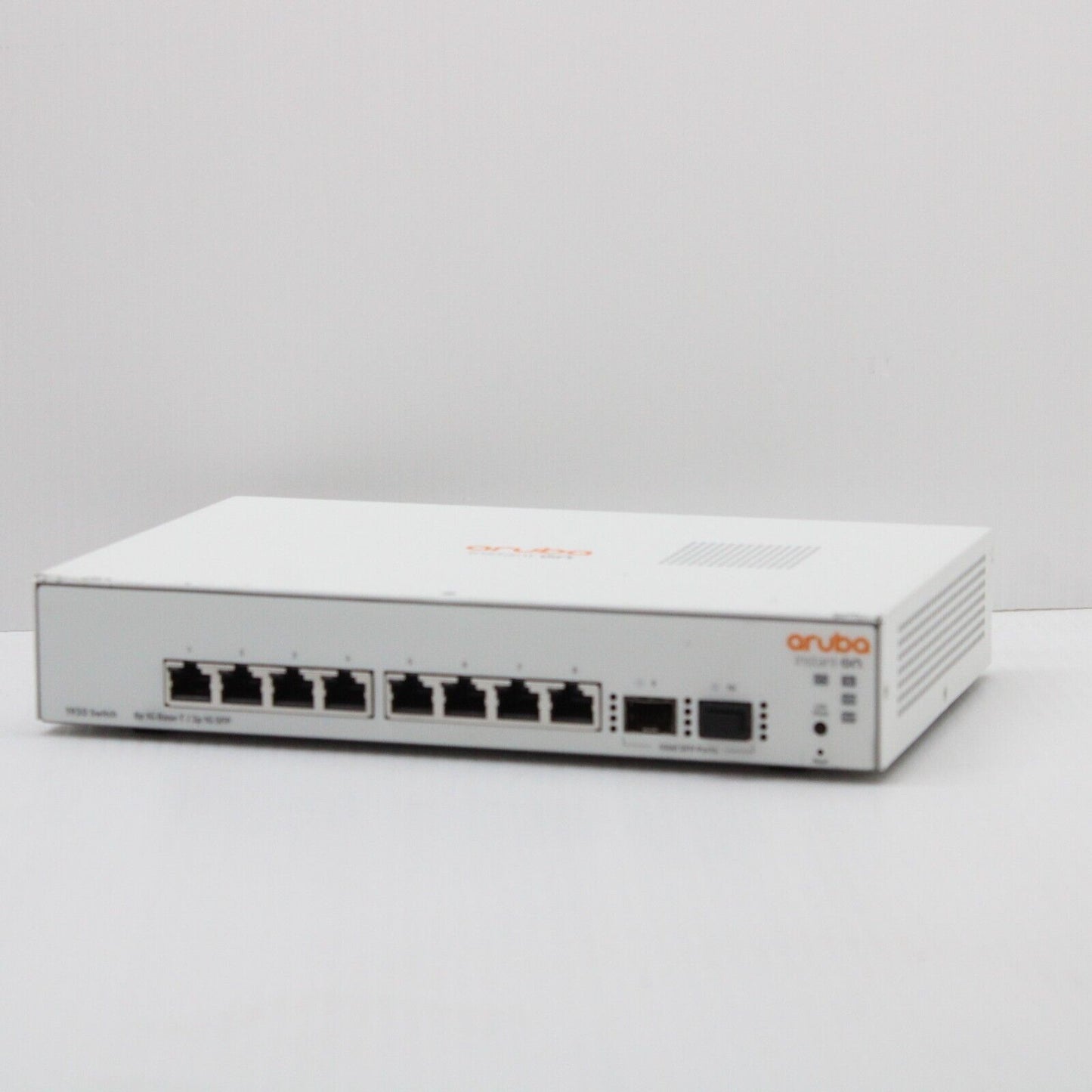

• 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical Characteristics

• Dimensions: 10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)
• Weight: 2.55 lb (0.82 kg)

Memory and processor

• ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

Performance

• 100 Mb Latency: < 4.7 uSec, packet size: 64B
• 1000 Mb Latency: < 3.0 uSec, packet size: 64B
• Throughput (Mpps): 14.88 Mpps, packet size: 64B
• Switching capacity: 20 Gbps
• Routing Table size (# of static entries): 32 static entries
• MAC Address table size (# of entries): 8,000 entries
• Reliability MTBF (years): 178

Environment

• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Operating relative humidity: 15% to 95% @ 104°F (40°C)
• Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C)
• Nonoperating/Storage relative humidity: 15% to 95% @ 140°F (60°C)
• Altitude: up to 10,000 ft (3 km)
• Acoustic: Power: 0 dB no fan

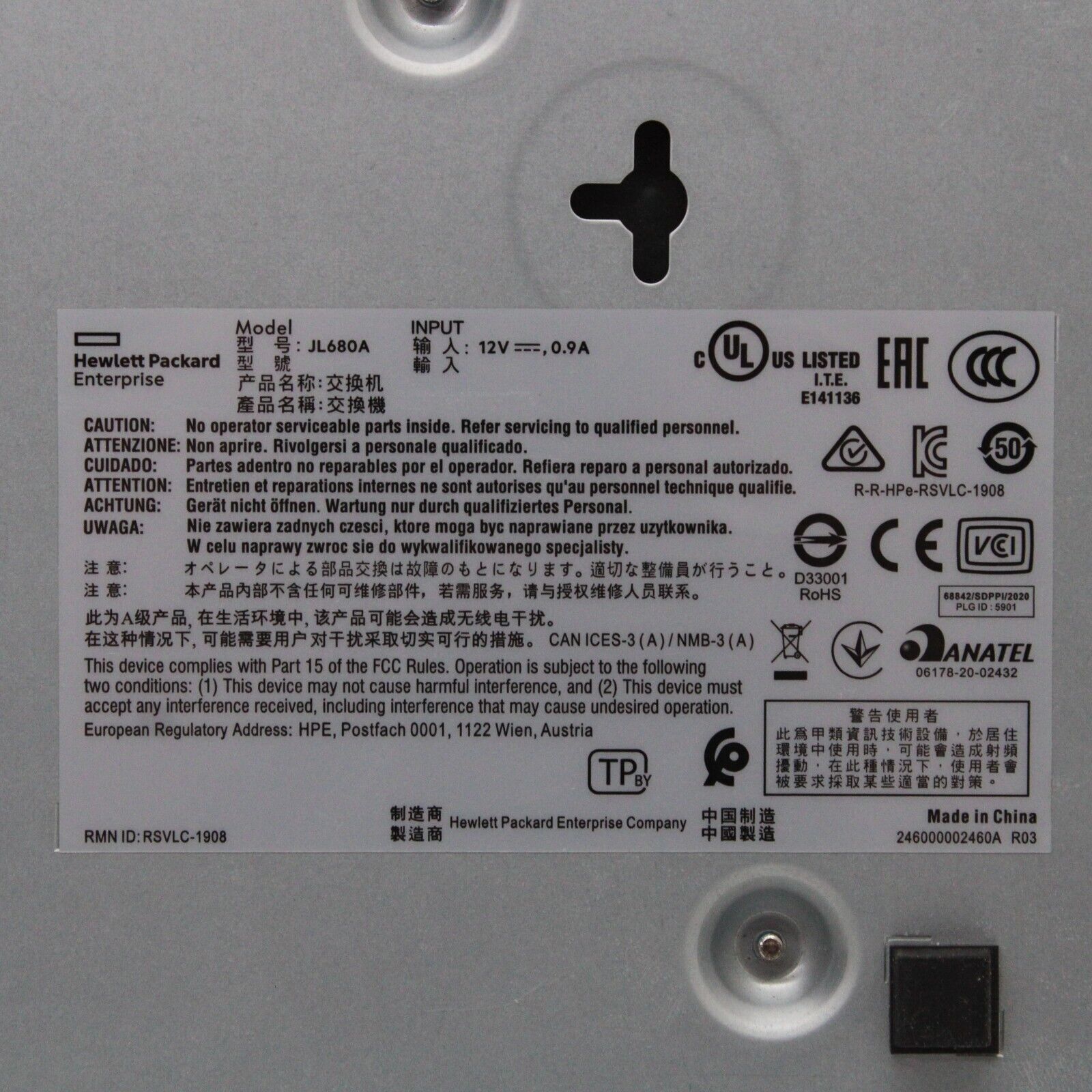

Electrical Characteristics

• Frequency: 50/60 Hz
• AC voltage: 100 - 240 VAC
• Current: 0.2A
• Maximum power rating: 11.0 W
• Idle power: 6.2 W
• PoE power: 124 W Class 4 PoE

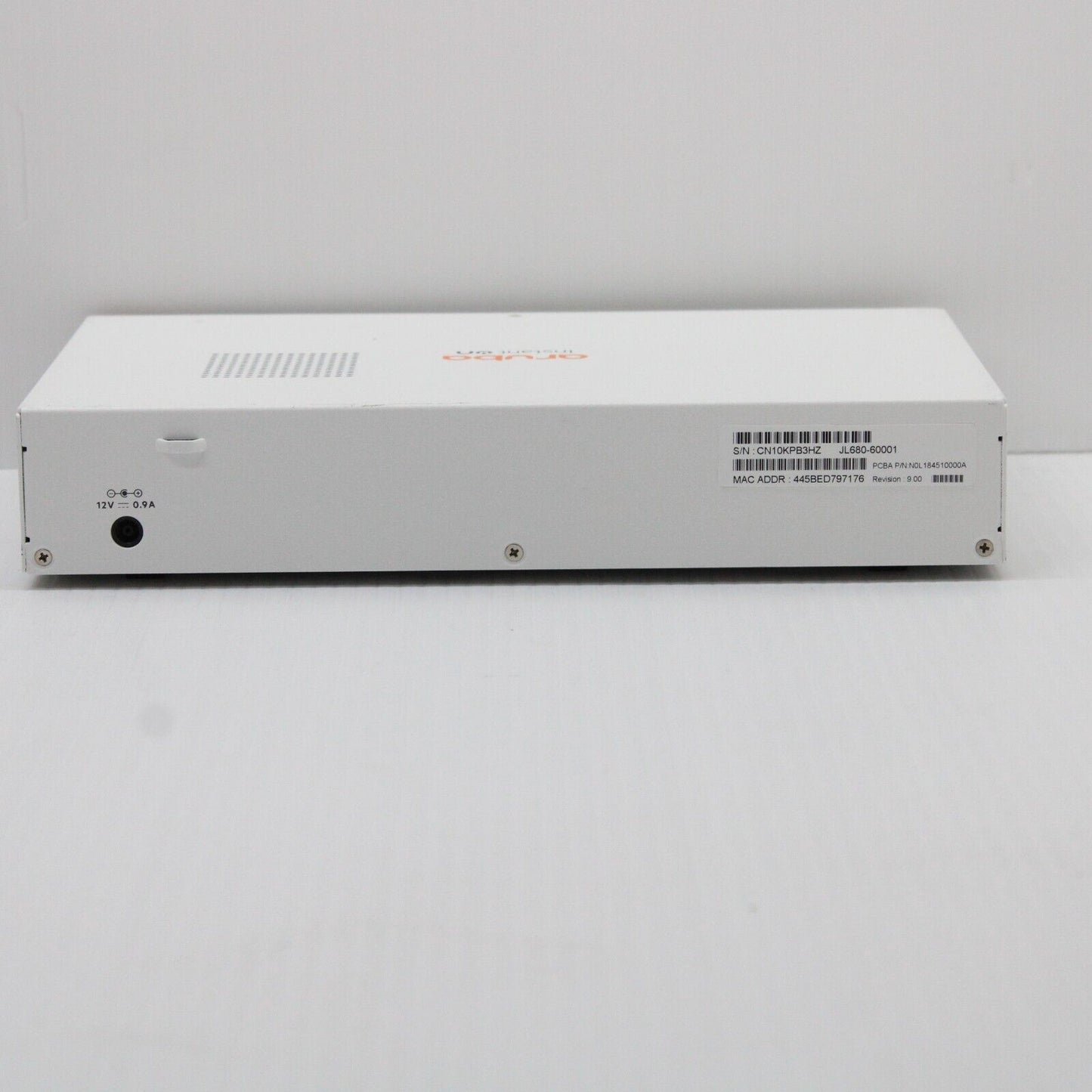

• Power supply: External power adapter included
