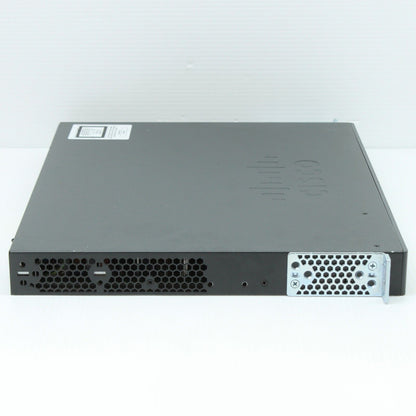

Cisco Catalyst WS-C2960X-24PS-L V04 2960x 24 Port 1Gbps PoE+ Managed Switch SFP

WS-C2960X-24PS-L Specifications

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 4 x 1G SFP

Network management Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

370W

Forwarding bandwidth(Gbps)

108Gbps

Maximum stacking number

8

Stack Bandwidth

80 G

Forwarding Performance

107.1Mpps

Switching bandwidth

216Gbps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

Optional

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption Operational

0.49KVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

14.5 Inches (36.8 cm)

Height

1.75 Inches (4.5 cm)

Weight

12.8 lb (5.8 Kg)

Package Weight

23.48 lb (10.65 Kg)

Rack Mounting Kit

optional

 MTBF in hours

324,280

Compliant Standards

● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax

System software / license

System software

IOS LAN BASE

license

NERGY-MGT-100-K9, EW-DO-100-DE

features

●Jumbo Frames

●VLANS

●Voice Vlan

●VTPv2

●CDPv2

●LLDP

●802.3ad LACP

●PVST/PVST+

●802.1W/802.1S

●Port Fast/Uplink Fast

●port CoS Trust and Override

●Scheduling

●Priority Queuing

●Configure CoS Priority Queues

●Weighted Tail Drop

●DSCP transparency

Network security

●SSH, SSL and SCP

●RADIUS and TACACS+

●SNMPv3 crypto

●802.1x

●802.1x Accounting / MIB

●802.1x w/ port security

●802.1x w/Voice VLAN

●802.1x Guest VLAN

●802.1x VLAN assignment

●802.1x MAC-Auth Bypass

●BPDU/Root Guard

●Port Security

●Private VALN Edge

●Storm Control

●Block unknown unicast and multicast

●IGMP Snooping

●IGMP Filter/Throttle

Management and Troubleshooting

●Auto-MDOX

●TDR

●UDLD

●IP SLA Responder

●layer 2 / IP Traceroute

●SPAN

●RSPAN

●Express Setup

●Device Manager

●Cisco Network Assistant

●Smartports + Advisor

●Troubleshooting Advisor

●Drag-and-drop Cisco IOS Upgrade

●IP Address DHCP

●Autoinstall with saved configuration

●Configuration Replace

●DHCP Auto Image Upgrade

●DHCP Port Based Allocation

●Error Disable MIB
